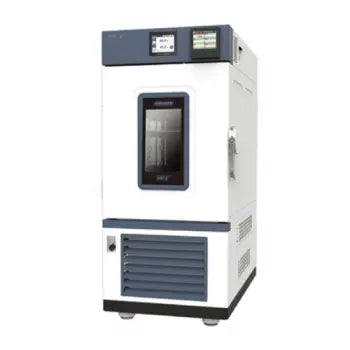

Jeio Tech AAH841112K TH3-E-400 Temperature & Humidity Chamber (Basic, 400L) 230V, 50/60Hz
by
Jeio Tech
10% off
10% off
Jeio Tech AAH841112K TH3-E-400 Temperature & Humidity Chamber (Basic, 400L) 230V, 50/60Hz
Jeio Tech AAH841112K TH3-E-400 Temperature & Humidity Chamber (Basic, 400L) 230V, 50/60Hz
Differentiated Systems
- Convenient operation with 5.6 inch color touch display controller.
- Possible to check the operation status with graphs.
- Minimize the occurrence of faults by simplifying water direct line and electric circuit.
- Water level check function enables water replenishment at the right time.
Structural functional features
- Excellent thermal insulation and sealing to ensure stable temperature and humidity reproducibility even for repeated test use.
- The door part is a double-sealed structure that provides enhanced airtightness.
- Maintains stable temperature and humidity by circulating air in the chamber at the optimum speed.
- Energy-saving system that can perform optimum temperature and humidity tests efficiently, reducing power consumption during operation.
Outstanding Safety
- Electronic over temperature shutdown system. (advanced over temperature (A-OT) limiter)
Independent precision temperature sensor and controller for safer and more accurate over temperature shutdown. - General-type over power shutdown system. (B-OT, backup over temperature limiter)
A backup device for electronic system failure, mechanically preventing over temperature even when it occurs electronic errors. - Ensures that the surface temperature is kept below 60°C.
- Low and empty water level alarm and automatic shut off.
- Door open warning and automatic shut off.
- Overcurrent and short circuit protection of device.
- Fuse installed for each heater for safety.
- Auto stop when operating current of compressor is overloaded.
- Auto stop when compressor is overheating.
- Auto shut off in case refrigerant pressure (high/low pressure) is abnormal.
Use Convenience Features
- Efficient water supply and recirculation system minimizes water refilling even for long-term high-humidity tests.
- Direct water supply system. (option)
- Easy observation of samples with tempered glass door with built in heating wire and LED lamp.
- A structure that allows the door to be opened and closed easily.
- Easy to clean as it is easy to remove refrigerator condenser grill, making it convenient to maintain efficiency of refrigeration.
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option)
Multifunction Control System
- Control and data processing by connecting up to 32 devices to PC at same time via RS-485 port.
- Reliable control with temperature/humidity auto-tuning and temperature calibration.
- PID zone subdivided into 9 zones for more precise control stability.
- Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox)
- Convenient checking with useful graph display.
| Model | TH3-E-200 | TH3-E-400 |
| Interior dimensions | ||
| Chamber volume (L / cu ft) | 201 / 7.1 | 398 / 14.1 |
| Width (mm / inch) | 500 / 19.7 | 600 / 23.6 |
| Depth (mm / inch) | 670 / 26.4 | 830 / 32.7 |
| Height (mm / inch) | 600 / 23.6 | 800 / 31.5 |
| Quantity of shelves (standard/max.) | 2/9 | 2/10 |
| Distance of between shelves (mm / inch) | 40 / 1.6 | 40 / 1.6 |
| Max. load per shelf (kg /lbs) | 20 / 44.1 | 25 / 55.1 |
| Permitted total load (kg / lbs) | 50 / 110.2 | 60 / 132.3 |
| Cable port (Ø, mm / inch) | 50 / 2.0 | 65 / 2.6 |
| Water tank capacity (L / cu ft) | 20 / 0.7 | 20 / 0.7 |
| Weight (kg / lbs) | 200 / 440.9 | 270 / 595.2 |
| Temperature data | ||
| Range without humidity (℃ / ℉) | 0 to 90 | 0 to 90 |
| / 32 to 194 | / 32 to 194 | |
| Fluctuation (±℃ / ℉) 1) | 0.5 / 0.9 | 0.5 / 0.9 |
| Variation (±℃ / ℉) 1) | 0.8 / 1.44 | 0.8 / 1.44 |
| Heating time (0℃ to 90℃) (min) | 80 | 80 |
| Cooling time (90℃ to 0℃) (min) | 90 | 90 |
| Humidity data (※ Ref.: Temp./ Humid. control range graph) | ||
| Range (%RH) | 35 to 85 | 35 to 85 |
| Fluctuation (±%RH) 1) | 1 | 1 |
| Variation (±%RH) 1) | 3 | 3 |
| Electrical data & Ordering information | ||
| Electrical requirements (AC230V, 1ph, 60Hz) | 15A | 16A |
| Cat. No. | AAH841102K | AAH841112K |
