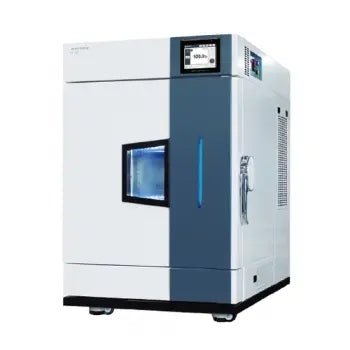

Jeio Tech AAH860332K TC3-ME-100 Low Temperature Chamber(100L) 230V, 50/60Hz

Optimized Model Configuration

• 2 series (KE, ME) according to temperature control range.
  TC3-KE ; -40 ~ 100℃
  TC3-ME ; -20 ~ 100℃
• Standard type Temp. & Humid chamber for selecting the optimized model according to test conditions.
• Dedicated stand for convenient use and moving.(option)
• Recorder for maintaining test records. (option)

Structural functional features

• Proven reproducibility and reliability with structural design optimized for miniaturization.
• Compact design for excellent space saving.
• Excellent thermal insulation and sealing to ensure stable temperature and humidity reproducibility even for repeated test use.
• The door part has a double sealing structure and excellent airtightness.

Use Convenience Features

• Convenient operation with 5.6 inch color touch display controller.

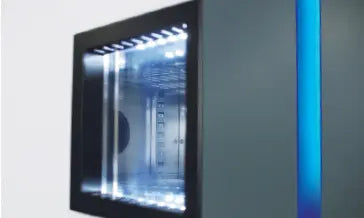

• Easy observation of samples with tempered glass door with built in heating wire and LED lamp.

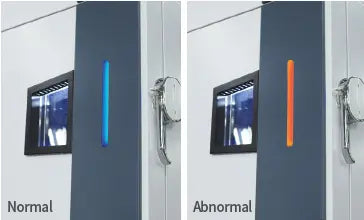

• By displaying the operation status of the device with LED colors, convenient to identify chambers status from a far.

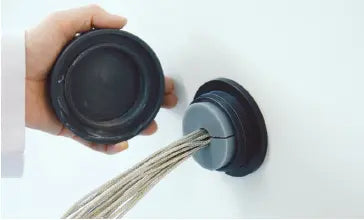

• The cable port(ø 50 mm) included as standard make it convenient to connect external equipment.
• The door structure can be easily opened or closed.

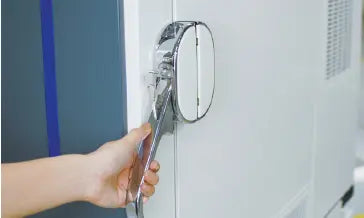

• Door handle with built-in key lock.
• Identification of the control and operating conditions at the front of the product.
• Design by stainless steel internal chamber made of stainless steel provide clean maintenance and excellent corrosion resistance.
• Easy to clean as it is easy to remove refrigerator condenser grill, making it convenient to maintain efficiency of refrigeration.
• Equipped with easy-to-move/install caster.
• Monitor via mobile app anytime, anywhere with LC Connected. (Requires LC GreenBox, option)
• Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option)

Multifunction Control System

• Highly-reliable control through calibration.
• Auto-tuning by subdivided PID zone for more precise control stability.
• RS-232 port (default) and RS-485 port (option) supported.
• Control and data v processing by connecting up to 32 devices to PC at same time via RS-485 port.
• Convenient checking with useful graph display.

Outstanding Safety

• Electronic over temperature protection system.(A-OT, advanced over temperature limiter)
  Independent precision temperature sensor and controller for safer and more accurate over temperature shutdown.
• Conventional over-temperature protection.(B-OT, backup over temperature limiter)
  A backup device for electronic system failure, mechanically preventing over temperature even when it occurs electronic errors.
• Door open warning and automatic shut off.
• Over-current and short circuit protection of device.
• Each heater has fuse for more being safe use.
• Automatic stop when operating current of refrigerator is overloaded.
• Automatic stop in case of over temperature of the compressor.
• Auto shut off in case refrigerant pressure (high/low pressure) is abnormal.
