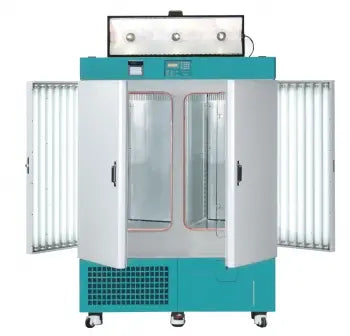

Jeio Tech AAHA1032K GC-1000TLH Plant Growth Chamber(1000L) 230V, 50Hz

Performance

General control system

• 5℃to 50℃(lamp off) / 10℃to 50℃. (lamp on)
• Max. to 35,000Lux for GC-1000.
  Max. to 20,000Lux for GC-300 Models.
• 40 to 80% RH for GC-300TLH. (at 20 to 35℃)
  50 to 90% RH for GC-1000TLH. (at 20 to 35℃)
• Max. 5,000ppm CO2 on/off system. (optional)
• Microprocessor PID control / Temperature calibration / Automatic tuning.

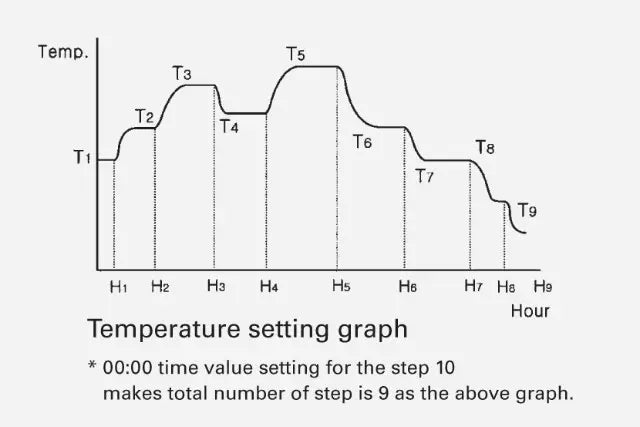

• 10 step programmable temperature, humidity, and illumination profiles and repeatable steps of up to 999 cycles.

Illuminance control system

• Uniformed luminescence distribution.
• Broad distribution of side lamps for hastening the growth of plants.
• High intensity illumination of upper lamp for light efficient and low thermal load. (for GC-1000TLH/1000TL)
• Unique construction for minimization of heat increase from surrounding lamps.
  - Tempered glass door blocks heated air from lamps.

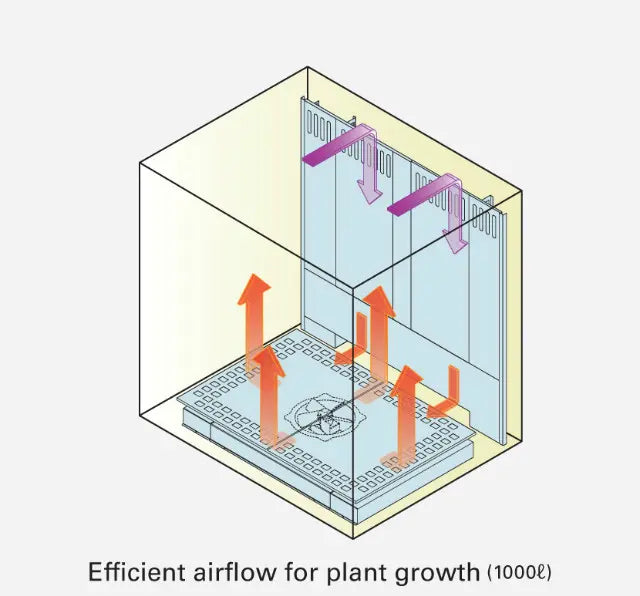

  - Designed to exhaust heated air through upper vent holes. (for GC-1000TLH)
• Stable and long lasting lighting through introduction of high frequency electronic ballast lamps.

Convenience

• Ergonomically designed door construction.
  - Inner glass door with silicone and external door with magnetic sealing for dual airtight packing.
  - Well designed providing a smooth open for minimization of damage to plants.
• Wide inner tempered glass door for clear observation of plant growth without affecting inner chamber’s environment.
• Tall plants can be grown inside of the chamber with adjustment of shelve level.
• Maintenance of water supply are easily performed with a front water tank. (GC-1000TLH)
  - Water level check indicated by water level bar in the tank.
• Water supply during operation is also available for long term test purposes.
• Adjustable water tank position. (for GC-300TLH)
• Detachable condenser air-filter for easy maintenance of refrigerating efficiency.
  - Maintenance of air filter no longer cumbersome with our detachable condenser air filter.
• Casters for easy mobility during installation or relocation.
• Eco-friendly CFC-free refrigerant use.

Safety

• Automatic shut off after overheat alarm.
• Low and empty water level alarm.
• Power supply leakage breaker.
• Over current protection,
• Open door alarm.

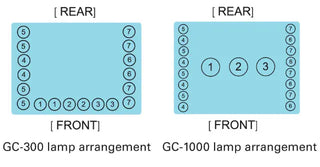

Lamps setting

• Control illumination values with the below lamp setting arrangements.

Specifications
