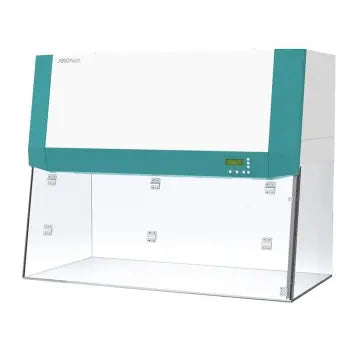

Jeio Tech PW-21 PCR Workstation
Features
Performance

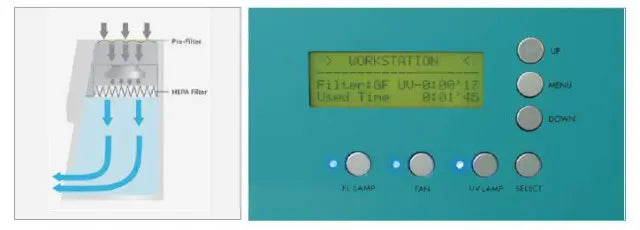

- ISO class 4 (US class 10) HEPA filter for optimal protection against cross-contamination.
(average life span of HEPA filter: 3 years – it depends on the test room conditions) - High-quality polyester fiber pre-filter (with minimal pressure loss and 85% arrestant on the A.F.I. test) for trapping larger particles and increasing the life of the main HEPA filter.
- Effective sterilization using a long-life 254 nm UV lamp. (average life span of UV lamp: 8,000 hours)
- Built in anti-glare LED lamp minimizes shadows and relieves eye strain.
Convenience
- User-friendly microprocessor-based control panel.
- Large capacity blower and easy blower speed adjustment by the control panel.
- Easy-settable digital timer for UV light exposure to deactivate DNA and RNA contaminants. (wait off, max. 30min.)
- Comfortable front access to cartridge type of filters for easy replacement.
Safety
- Interlocking safety door system shuts off UV light automatically when opening the door.
- UV-blocking door and side panels made of transparent polycarbonate material provides clear inside view.
- UV over-exposure alarm and over-current protection.
Specifications
| Model | PW-01 | PW-11 | PW-21 | |||||
|---|---|---|---|---|---|---|---|---|
|
Air |
Air flow type |
Vertical |
||||||
|
Laminar airflow velocity (m / s / fpm) |
0.4 / 78.7 |
|||||||
|
Main filter |
HEPA (99.99% at 0.3 ㎛) |
|||||||
|
Pre-filter |
Polyester Fibers |
|||||||
|
Illumination |
UV lamp (W) |
15 |
20 |
30 |
||||
|
LED lamp (254nm, W) |
7 |
10 |
13 |
|||||
|
LED lamp Intensity (Lux) |
More than 1000 |
|||||||
|
Material |
Window (Front, Sides/ Rear) |
Polycarbonate (Clear) |
||||||
|
U.V. protection |
99.9% |
|||||||
|
Working table |
Polycarbonate (Clear) |
|||||||
|
Dimension(W×D×H) |
Interior (mm / inch) |
700×585×602 / 27.5×23×23.7 |
880×585×602 / 34.6×23×23.7 |
1180×585×602 / 46.5×23×23.7 |
||||
|
Exterior (mm / inch) |
720×605×964 / 28×24×38 |
900×605×964 / 35.4×24×38 |
1200×605×964 / 47.2×24×38 |
|||||
|
Net weight (Body) (kg / lbs) |
56.2 / 123.9 |
64.2 / 141.5 |
77.8 / 171.5 |
|||||
|
Noise level (dB) |
Less than 60 |
|||||||
|
Electrical requirements (230V, 50/60Hz) |
1.3A | 1.4A | 1.5A | |||||
| Cat. No. | AAHB3002K | AAHB3012K | AAHB3022K | |||||
|
Electrical requirements (120V, 60Hz) |
2.2A | 2.7A | 2.9A | |||||
| Cat. No. | AAHB3003U | AAHB3013U | AAHB3023U | |||||
