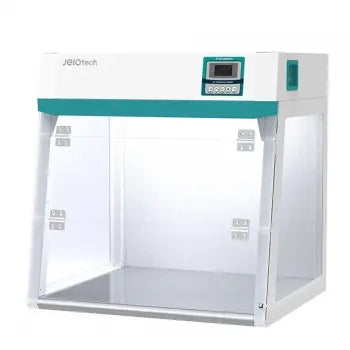

Jeio Tech UVC-21 UV Cabinet
Features
Performance
- Effective disinfection using a long-life 254 nm UV lamp. (average life span of UV lamp: 8,000 hours)
- Built in anti-glare LED lamp minimizes shadows and relieves eye strain.
Convenience

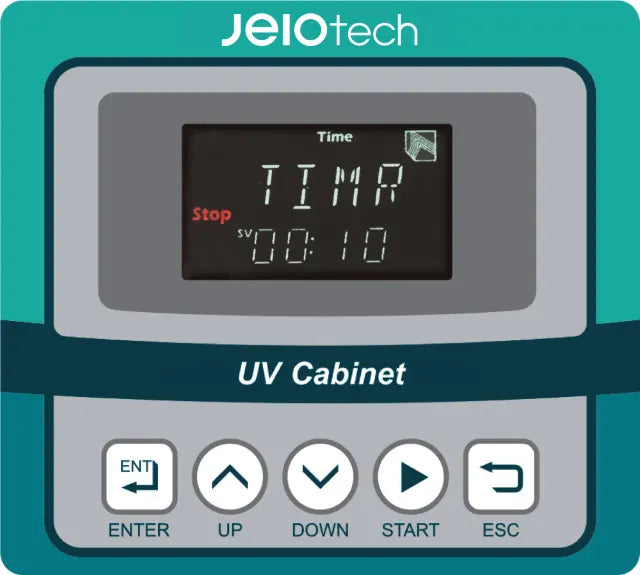

- User-friendly microprocessor-based control panel.
- Digital UV light timer for convenient use.
- Easy-settable digital timer for UV light exposure to deactivate DNA and RNA contaminants. (wait off, max. 30min.)
- Easy-to-clean grade 304 stainless steel work surface with high chemical resistance against various organic solvents.
Safety
- Interlocking safety door system shuts off UV light automatically when opening the door.
- UV-blocking door and side panels made of transparent polycarbonate material provides clear inside view.
- UV over-exposure alarm and over-current protection.
Specifications
| Model | UVC-01 | UVC-11 | UVC-21 | |||||
|---|---|---|---|---|---|---|---|---|
|
Illumination |
Intensity |
LED lamp (Lux) |
more than 800 |
more than 900 |
more than 1000 |
|||
|
UV density (㎼ / ㎠) |
300 ± 10% |
350 ± 10% |
300 ± 20% |
|||||
|
Capacity |
LED lamp (W) |
5 |
7 |
10 |
||||
|
UV lamp (254nm, w) |
8 |
15 |
20 |
|||||
|
Material |
Window (front, sides) |
Polycarbonate (Clear) |
||||||
|
Window (Rear) |
Powder coated steel |
|||||||
|
U.V. protection |
99.9% |
|||||||
|
Working table |
Stainless steel |
|||||||
|
Dimension |
Interior (mm / inch) |
433 x 500 x 468 / 17.0 x 19.7 x 18.4 |
583 x 500 x 468 / 23 x 19.7 x 18.4 |
880 x 500 x 468 / 34.6 x 19.7 x 18.4 |
||||
|
Exterior (mm / inch) |
450 x 509 x 610 / 17.7 x 20 x 24 |
600 x 509 x 610 / 23.6 x 20 x 24 |
900 x 509 x 610 / 35.4 x 20 x 24 |
|||||
|
Net weight (Body) (kg / lbs) |
15 / 33.1 |
17.5 / 38.6 |
20 / 44.1 |
|||||
|
Electrical requirements (230V,50/60Hz) |
0.1A |
0.2A |
0.3A |
|||||
| Cat. No. |
AAHB4002K |
AAHB4012K |
AAHB4022K |
|||||
|
Electrical requirements (120V, 60Hz) |
0.2A |
0.4A |
0.6A |
|||||
| Cat. No. |
AAHB4003U |
AAHB4013U |
AAHB4023U |
|||||
