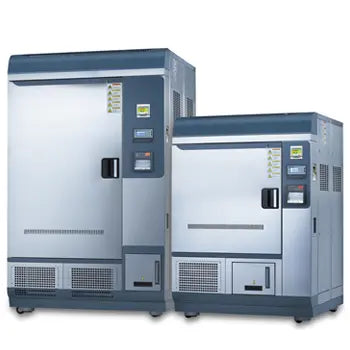

Jeio Tech AAHC10XXX Temperature & Humidity Chamber 300L or 760L, KR Plug 230V, 50/60Hz
Features
Control range
Temperature range from -5 to 85°C Humidity range from 20 to 85% RH
Performance
- Microprocessor PID control / Temperature calibration / Automatic tuning.
- Rapid humidity control is achieved by adapting the humidification tank interior to the chamber.
- Air-tight door closure with perfect sealed packing.
- Heat-resistant silicone packing completely blocks high heat leakage from the inner chamber.
Convenience
- Two different sized models available to suit any users’ needs.
- Corrosion resistant stainless steel chamber.
- Cable port for introduction of external probes or wires.
- 50mm diameter cable port comes standard on the left side of the unit.
- Additional 50mm or 80mm diameter cable ports, custom ordered. (optional) - Inner glass door with entry ports for handling samples without affecting inner chamber temperature and humidity. (optional)
- Casters for easy mobility during installation or relocation.
- User friendly LCD controller.
- Colorful interactive touch type LCD controller.
- Set point temperature and present temperature are clearly shown together on display.
- Sufficient programmable control support.
- Operating progress can be shown in graph mode for better data understanding.
- Automatic start/stop can be programmed for unattended operations.
- Display indicates abnormal temperature changes or power failures.
- Selective bilingual language support.
(Korean / English or English / Chinese, selectable only when placing an order)
- Temperature and other operating parameters can be recorded using a six channel digital recorder.(optional) - Computer interface.
- RS-485 communication port (optional) enables connection up to maximum 32 units. Simultaneous monitoring and operating of multiple units is an available feature.
- Program patterns are simple to set with the use of our software.
- Easy to check status of real-time operations. Graph data supports easy understanding.
- Storage and documentation of programs.
- Data with saving capabilities in excel and text format.
- Storage of program information, backup of value settings, recovery, and temperature values.
- RS-232 communication port as standard offer.
Stability test ICH guideline Q1A (R2)
- Operating progress visible through graph mode for better data analyzation.
- Cyclic defrost system, designed to work excellently for the long period stability test operation. (※Temperature and humidity changes may occur during automatic defrost.)
- Maintenance of water supply are easily performed with a front water tank.
- Water level check indicated by water level bar in the tank. - Water supply during operation is also available for long term test purposes.
- Direct water system provides user great convenience when performing long-term test. (optional)
Photostability test ICH guidelineQ1B (Option 2)
- Built in UV and fluorescent lamps for uniformed luminescence.
- Equipped with movable UV and VIS sensors .
- Independent lamp controller
- An indicator for Total usage time of UV and fluorescent lamps. - Convenient set function of cumulative dosage and lamp Of
Safety
- Built in door lock with a key.
- Automatic shut off after overheat alarm.
- Low and empty water level alarm.
- Power supply leakage breaker.
- Over current protection.
- Open door alarm.
Specifications
| Model | TH-ICH-300 | TH-ICH-800 | ||
| Chamber volume (L / cu ft) | 300 / 10.6 | 760 / 26.8 | ||
| Controller | PID control (LCD Type) | |||
| Temperature 1) | Range | without humidity (℃ / ℉) | -5 to 85 / 23 to 185 | |
| without Light 0 to 85 / 32 to 185 with Light | ||||
| with humidity (℃ / ℉) | +15 to 85 / 59 to 185 with Light | |||
| Fluctuation 1) (±℃ / ℉) at 40℃ / 60%RH | 0.3 / 0.55 | 0.3 / 0.55 | ||
| Variation 1) (±℃ / ℉) at 40℃ / 60%RH | 0.5 / 0.9 | 0.7 / 1.3 | ||
| Time | Heating | 25min (20℃ → 85℃) | 30min (20℃ → 85℃) | |
| Cooling | 35min (20℃ → -5℃) | 40min (20℃ → -5℃) | ||
| Humidity | Range (%RH) | 20 to 85 | ||

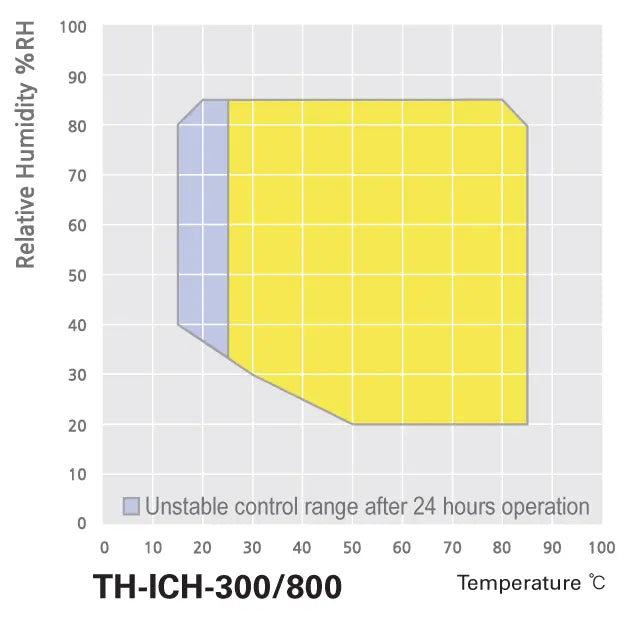

| ※ See page 231 for more detailed humidity range check. | ||||
| Fluctuation 2) (±%RH) at 60%RH / 40℃ | 3 | |||
| Variation 2) (±%RH) at 60%RH / 40℃ | 5 | |||
| Light source (ICH Q1B option 2) | Cool white 3) | 6,000 lux | 6,500 lux | |
| Ultraviolet-A 3) | 4.5 W/㎡ | 5 W/㎡ | ||
| Light uniformity | VIS. : ±10%UVA : ±15% | VIS. : ±15%UVA : ±15% | ||
| Typical time required to reach ICH | ≒ 200Hr | ≒ 184Hr | ||
| Recommendation of 1.2 million lux-hr | ||||
| Typical time required to reach ICH | ≒ 50Hr | ≒ 40Hr | ||
| recommendation of 200 W-hr/m2 | ||||
| Refrigeration | System | Air - cooled | ||
| Refrigerant | R- 404A | |||
| Water tank | Capacity (L / cu ft) | 15 / 0.53 | ||
| Water quality | pH6.2 ~ 7.2, Electrical conductivity 20㎲ / cm to below | |||
| No. of wire shelves (standard / max.) | 2.Ağu | Şub.17 | ||
| Distance of between shelves (mm / inch) | 60 / 2.4 | 60 / 2.4 | ||
| Max. load per shelf (kg / lbs) | 25 / 55.1 | 40 / 88.2 | ||
| Permitted total load (kg / lbs) | 75 / 165.3 | 100 / 220.5 | ||
| Dimension (W×D×H) | Interior (mm / inch) | 750×650×650 / 29.5×25.6×25.6 | 750×880×1160 / 29.5×34.6×45.7 | |
| Exterior (mm / inch) | 1130×985×1520 / 44.5×38.8×59.8 | 1220×1215×1965 / 48×47.8×77.4 | ||
| Net weight (kg / lbs) | 280±10 / 617±22 | 400±10 / 882±22 | ||
| Cable port | Basically one hole provided / Ø 50mm (2”), | |||
| Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2”) | ||||
| Interface port | Basically RS-232C, [RS-485 : optional] | |||
| Electrical requirements | AC230V, 1ph, 60Hz | 14.7 A | 23.5 A | |
| AC230V, 1ph, 50Hz | 14.7 A | 23.5 A | ||
