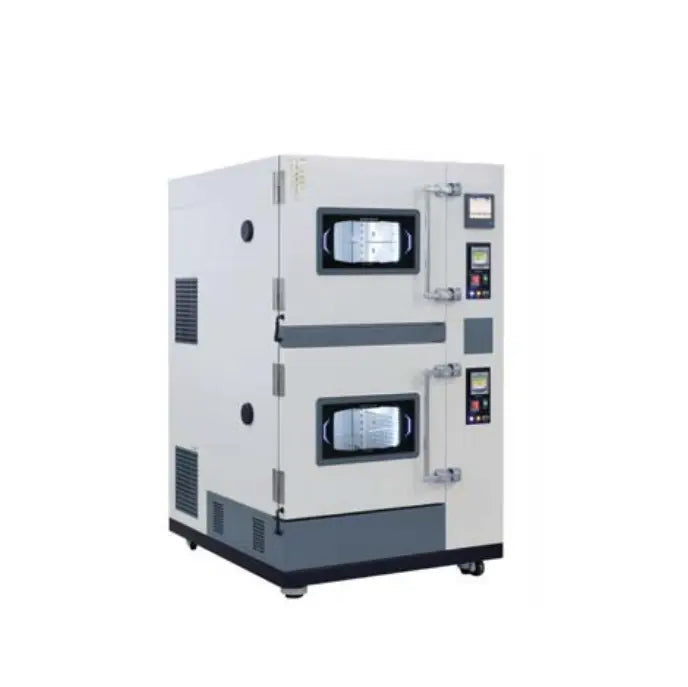

Jeio Tech AAHC63XXX Temperature & Humidity Chamber 150L to 384L, KR Plug 230V, 50/60Hz

Jeio Tech AAHC63XXX Temperature & Humidity Chamber 150L to 384L,KR Plug 230V, 50/60Hz

Performance

• Microprocessor PID control / Temperature calibration / Automatic tuning.
• Advanced performance of low and high temperature and humidity control, achieved by adapting the humidification tank exterior to the chamber, added benefit for long term test.
• Water recycling systems reduce water consumption for longer operations.
• Air-tight door closure with perfect sealed packing.
  • Heat-resistant silicone packing completely blocks high heat leakage from the inner chamber.
  • Two-point door latch also enhances the tightness of the door closure.
• Energy efficiency is achieved by optimization of the insulation system.
  • Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures of over 60℃.

Convenience

• Three different volume sizes are available to suit any user's needs.
• Corrosion resistance stainless steel chamber and electric polished humidification tank.
• Water supply during operation is also available for long-term test purposes.
• The direct water system provides users great convenience when performing long-term tests (option).

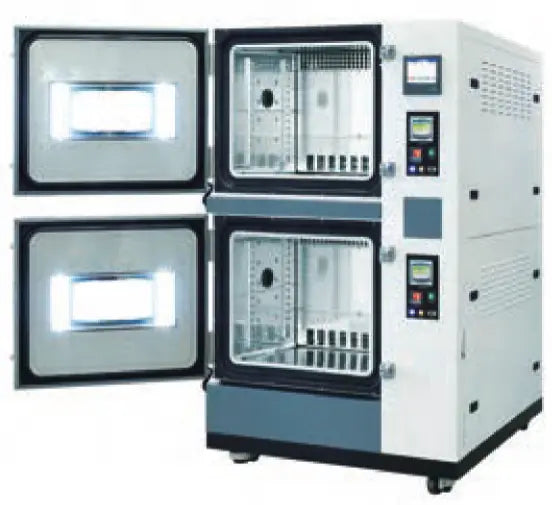

• Clear observation of samples.
  • Tempered glass door with built-in heating wire.
  • Energy efficient, long life span LED lighting.
  • Wider view, an inner glass door is available for monitoring of samples (option).
• Cable port for introduction of external probes or wires.
  • A 50mm diameter cable port comes standard on the left side of the unit.
  • Additional 50mm or 80mm diameter cable ports, custom ordered (option).
• Casters for easy mobility during installation or relocation.
• User-friendly LCD controller.
  • Colorful interactive touch-type LCD controller.
  • The set point temperature and present temperature are clearly shown together on display.
  • Sufficient programmable control support.
  • Operating progress can be shown in graph mode for better data understanding.
  • Automatic start/stop can be programmed for unattended operations.
  • The display indicates abnormal temperature changes or power failures.
  • Selective bilingual language support.
    (Korean / English or English / Chinese, selectable only when placing an order)
  • Temperature and other operating parameters can be recorded using a six-channel digital recorder (option).

Computer interface

• RS-485 communication port enables connection up to maximum of 32 units. Simultaneous monitoring and operating of multiple units is an available feature (option).
• Program patterns are simple to set with the use of our software.
• Easy to check the status of real-time operations. Graph data supports easy understanding.
• Storage and documentation of programs.
• Data with saving capabilities in excel and text format.
• Storage of program information, backup of value settings, recovery, and temperature values.
• RS-232 communication port as a standard offer.

Safety

• Built-in door lock with a key.
• Automatic shut off after overheating alarm.
• Low and empty water level alarm.
• Power supply leakage breaker.
• Over current protection.
• Open door alarm.

Product Specifications
