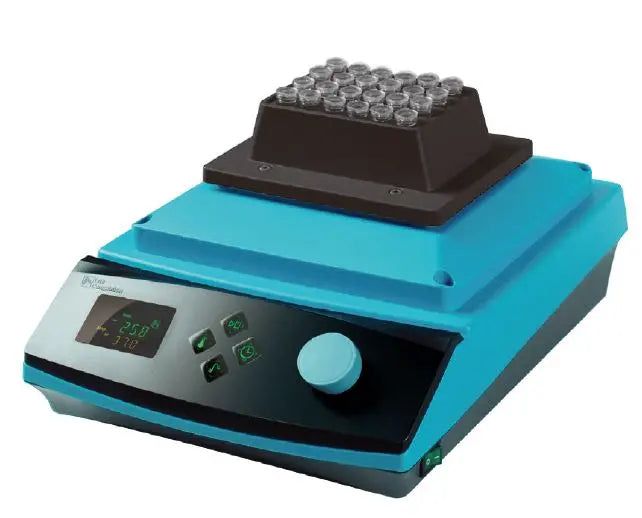

Jeio Tech AAHJ4015K CBS-350 Heating Shaker KR Plug 230V, 50/60Hz
Jeio Tech AAHJ4015KCBS-350 Heating Shaker KR Plug
Features
Performance
- Microprocessor PID control ensuring consistent shaking motion and precision accuracy.
- Wide speed range from 150 to 1500 rpm (block dependent)
- Automatic temperature calibration.
Convenience
- Bright VFD display with responsive touch buttons.
- Memory function of programs allowing relevant parameters (such as temp., rpm, time) of each program step to be stored.
- Up to 10 programs allowed for memory storage.
- Up to 10 steps allowed for each program.
- Interval mix function (continuous switching between shaking and phasing) - Advanced dual wait on/off timer modes.
- User can set timer to starts immediately after the timer setting or only after reaching the set temp. - Optimal heat transfer is achieved by the tight coupling design of the main body and the corrosion-resistant anodized aluminum blocks.
Safety
- Self-diagnostic function identifying errors.
- Its polypropylene main body is highly chemical-resistant and easy-to-clean.
- Low-profile design with rubber feet for minimal vibration and noise.
- Over-current protection.
Specifications
| Model | CBS-350 | ||
|---|---|---|---|
| Control | PID feedback control | ||
| Display | VFD (0.1℃ resolution) | ||
| Temperature | Range (℃/℉) | Amb. +5 to 100 / 41 to 212 | |
| Fluctuation at 80℃ (±℃/℉) | 0.3 / 0.9 | ||
| Variation at 80℃ (±℃/℉) | 0.7 / 0.27 | ||
| Heating power (W) | 360 | ||
| Safety | Over temp. | Heating plate | |
| PCB | |||
| Over current | Current limit protection | ||
| Shaking system (WxDxH) | Motion type | Orbital | |
| Speed range (rpm) | 96-well tube block | 150 to 1500 | |
| 0.5㎖tube block | 150 to 1000 | ||
| 1.5㎖tube block | 150 to 1000 | ||
| 15㎖tube block | 150 to 900 | ||
| Ø12 tube block | 150 to 850 | ||
| Ø13 tube block | 150 to 850 | ||
| 50㎖tube block | 150 to 800 | ||
| Orbit size (mm / inch, dia.) | 2 / 0.08 | ||
| Dimension (WxDxH) | Body 1) (mm / inch) | 249 x 325 x 120 / 9.8 x 12.8 x 4.7 | |
| Net weight (Kg / lbs) | 8.3 / 18.3 | ||
| Electrical requirements (230V, 50Hz / 60Hz) | 1.7A | ||
| Cat. No. | AAHJ4015K | ||
| Electrical requirements (120V, 60Hz) | 3.4A | ||
| Cat. No. | AAHJ4013U | ||
