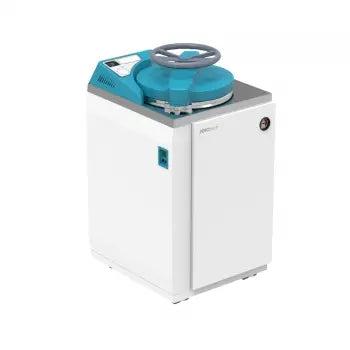

Jeio Tech AAHL1045K ST-105G, 105L Vertical Type Autoclave with NEMA plug 6-30 230V, 50/60Hz

Performance

• Microprocessor controller and temperature calibration function allows for high precision temperature control.
  - Sterilization temperature at 110 to 123°C
  - Melting* temperature at 60 to 100°C
  * Liquefaction of coagulated agar media.
• Automatic sterilization system for unattended operation.
  - Heating > Check safe > Sterilization > Sterilization safe > Exhausting > End
• Convenient operation modes for various uses.
  - Standard modes and program modes are listed in detail as below tables.
• Temperature calibration function.

Convenience

• Conveniently monitored by an independent control display, sterilization process display, and pressure gauge.
  - VFD for visualization of temp, pressure(optional), timer, warning alert checks.
  - LED lamps for sterilization process check.
  - Easy pressure check with the standard gauge attached to the front.
• Vertical type autoclaves which allow for top loading are suitable for high volume sterilization.
  - Baskets are stackable two high or even more levels, which secure inside the chamber space requirements.
• Low-maintenance
  - The chamber is constructed of stainless steel which is superiorly resistant to corrosion.
  - Easy to replace silicone gasket.
• Convenient documentation with the optional data recorder.
  - Dot type recorder(6 point) allows for precise documentation.
• Monitor via mobile app anytime, anywhere with LC Connected. (Requires LC GreenBox, option)
• Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option)

Safety

• Mechanical safety devices
  - Over current protection.
  - Over temperature protection by automatic power cutoff.
  - Over pressure protection by automatic and manual safety valve.
• Safety warning systems
  - Over temperature warning.
  - Low temperature warning.
  - Low water level warning.
  - Low heat warning if the temperature does not reach the sterilization or melting temperature.
  - Sterilization fail warning if the operation is unexpectedly stopped during sterilization process.
• Slide opening door with plastic cover of low thermal conductivity prevents burns from the contact.
