Jeio Tech BEH73205K W2V10, Rotary Vacuum Pump, 100L/min, KR Plug 230V, 50/60Hz
by
Jeio Tech
SKU: BEH73205K
8% off
Key specs
See all specifications- Max. pressure
- Gas ballast open
- Gas ballast closed
- 1X10-3 Torr (1.3X10-1 Pa)
- Motor power (W / Hp)
- 400 / 0.5
- Motor speed (rpm)
- 1,7
Key specs
See all specifications- Max. pressure
- Gas ballast open
- Gas ballast closed
- 1X10-3 Torr (1.3X10-1 Pa)
- Motor power (W / Hp)
- 400 / 0.5
- Motor speed (rpm)
- 1,7
Overview
From the manufacturer
Features

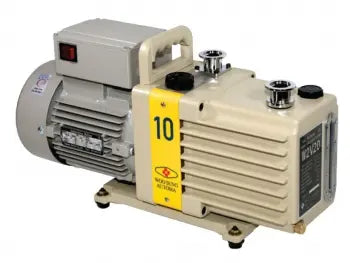

Rotary Vacuum Pump
Key features
- Rotary vacuum pump equipped with direct connect oil seal prevents air reflux, essentially used with vacuum ovens to achieve a higher level of vacuum pressure.
- Oil mist trap, an optional feature, prevents oil in-flow.
Specifications
Manufacturer data. Imperial with metric in brackets.
- Model
- W2V10
- Pumping speed (L/min / gal/min)
- 100 / 26.4
- Max. pressure
- Gas ballast open
- Gas ballast closed
- 1X10-3 Torr (1.3X10-1 Pa)
- Motor power (W / Hp)
- 400 / 0.5
- Motor speed (rpm)
- 1,7
- Oil capacity (cc / L)
- 500 / 0.5
- Inlet
- Standard
- Nipple (Ø, mm)
- AL, Ø12
- Exterior (WxLxH) (mm / inch)
- 170x454x253 / 6.7x17.9x10.0
- Net weight (kg / lbs)
- 22.5 / 49.6
- Electrical requirements
- 230V, 50/60Hz
Documents
Files from the manufacturer
Spec sheetJeio_Tech_Catalogue.pdf
Download PDF
