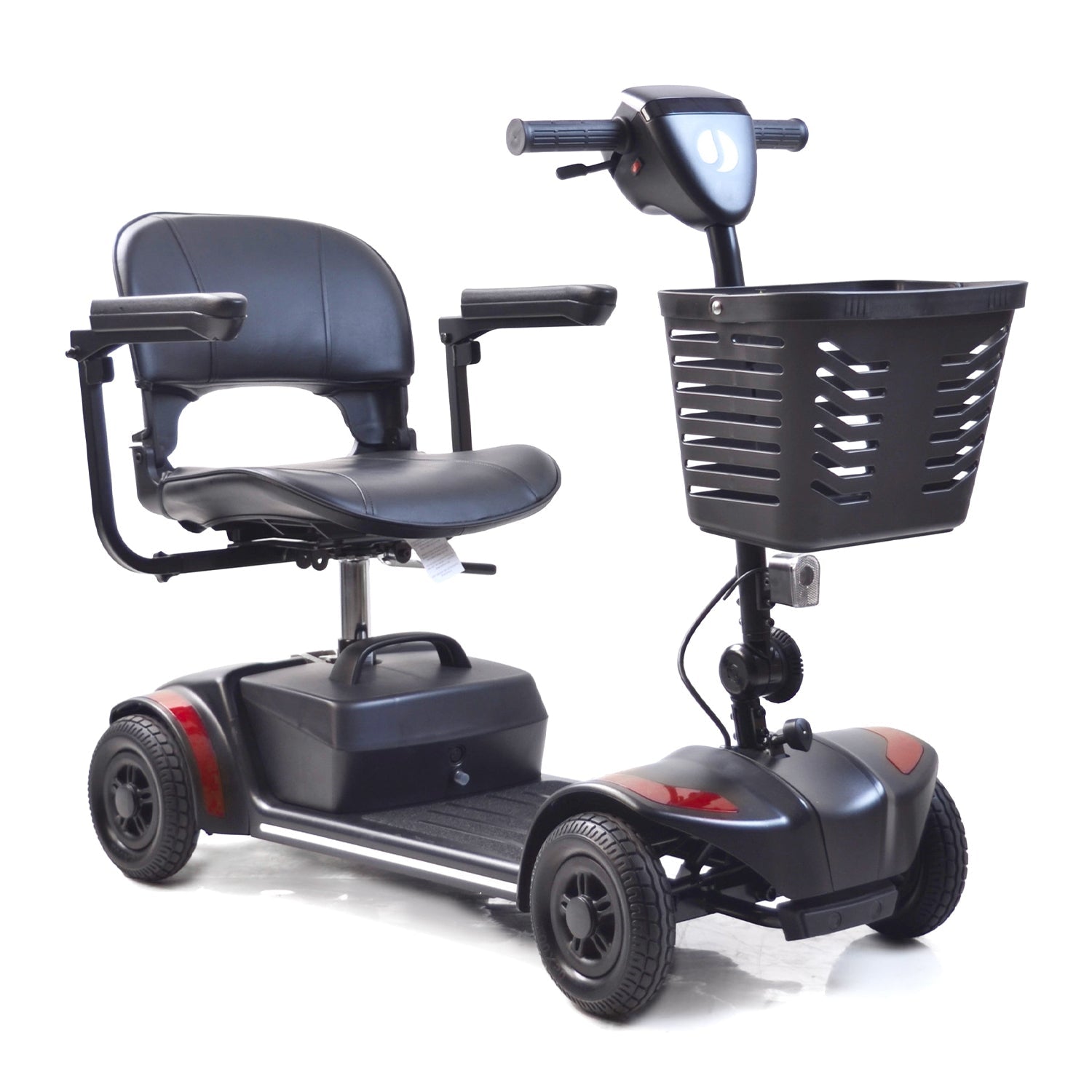

Journey 08910 Adventure 4-Wheel Mobility Scooter, Rear-Wheel Drive, Tool-Free Five-Piece Breakdown, Full-Swivel Height-Adjustable Seat, 300 lb Capacity
The Adventure is the four-wheel scooter in Journey's range, built for distance rather than for lifting. Two sealed 12 volt AGM batteries make up a 24V 15Ah pack driving a 270 watt rear-wheel motor with an electromagnetic brake, and Journey rates the range at 12.4 miles per charge under ISO 7176-4 test conditions.
Assembled it weighs 96 lbs, so it is not a one-piece lift into a trunk. Instead it separates without tools into five parts, seat, battery pack, front frame, rear frame and basket, the heaviest of which is the 33 lb front frame assembly. The seat swivels and lifts off, the padded armrests pivot up and adjust for width, and a freewheel lever on the rear frame lets a helper push the scooter with the power off. Driving is by tiller: a wig-wag throttle lever for forward and reverse, a speed dial, a horn and a battery gauge, with a headlight, rear reflectors and fixed anti-tip wheels.
Not approved for air travel. The Adventure uses sealed lead-acid batteries, which airlines do not accept for mobility devices. If the scooter needs to fly, the Journey So Lite Folding Power Scooter carries a lithium battery and is FAA compliant.
Journey's manual rates the Adventure for flat, stable surfaces such as sidewalks and indoor floors, and states it is not intended for uneven terrain, steep hills or public roads. The maximum safe slope is 6 degrees, the maximum obstacle height 2 inches and the maximum gap 4 inches. Journey classes it as a personal mobility device, not a medical device or wheelchair, and does not recommend it for users under 16.

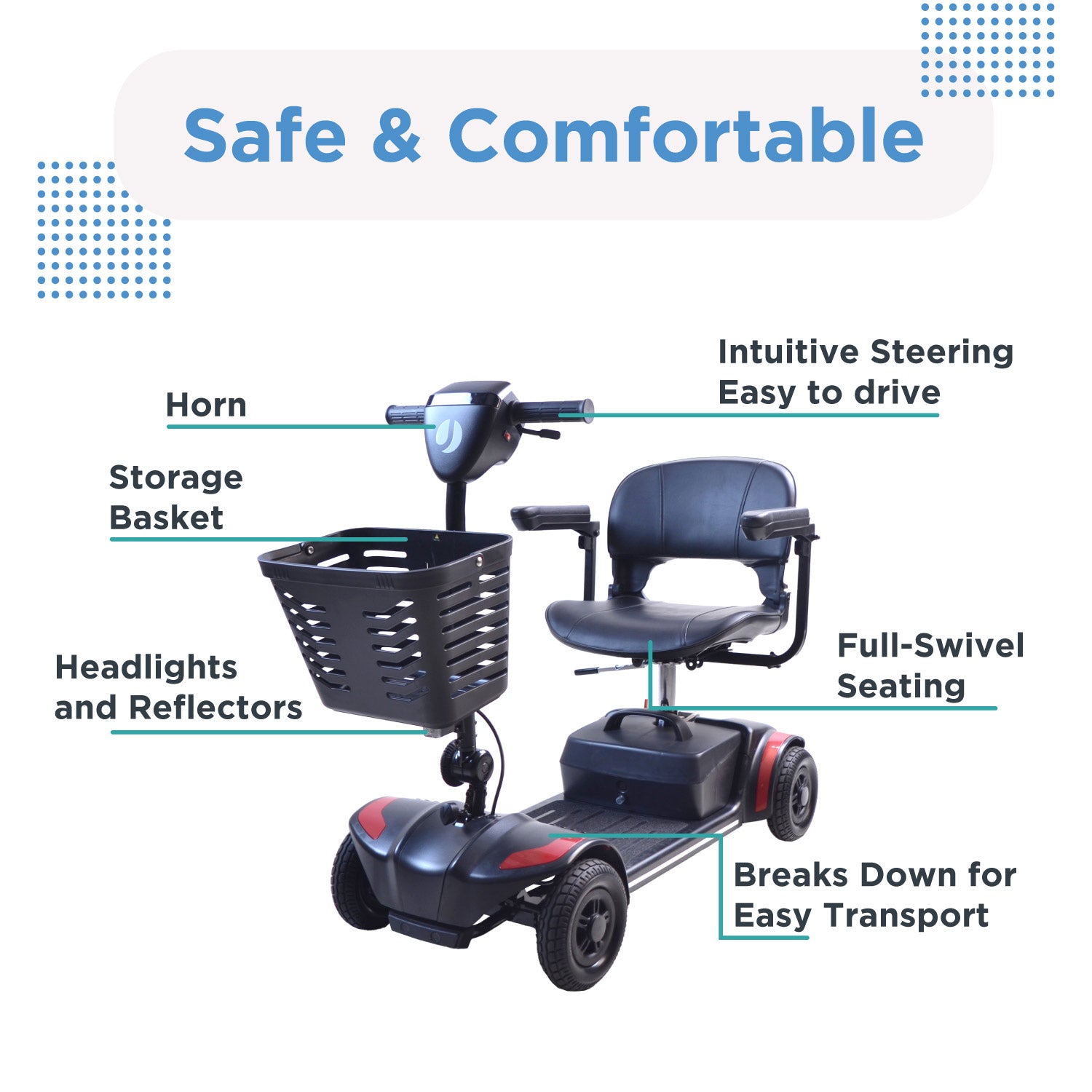

Features
- Four-wheel rear-wheel-drive base for stability on pavement and indoor floors

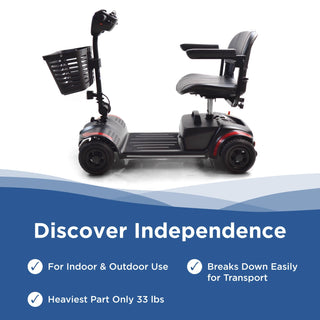

- Separates into five pieces without tools, heaviest piece 33 lbs
- 12.4 miles of range per charge from a 24V 15Ah AGM battery pack
- 270 watt motor with an electromagnetic brake that engages when the throttle is released
- Freewheel lever so a helper can push the scooter with the power off
- Full-swivel, height-adjustable seat that lifts off for transport
- Width-adjustable, flip-up padded armrests, adjustable from 18.1 to 26 inches
- Removable front basket

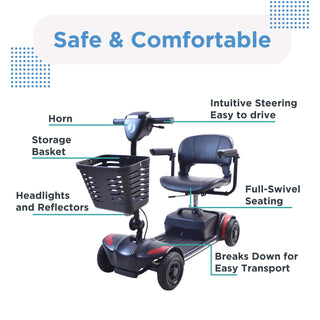

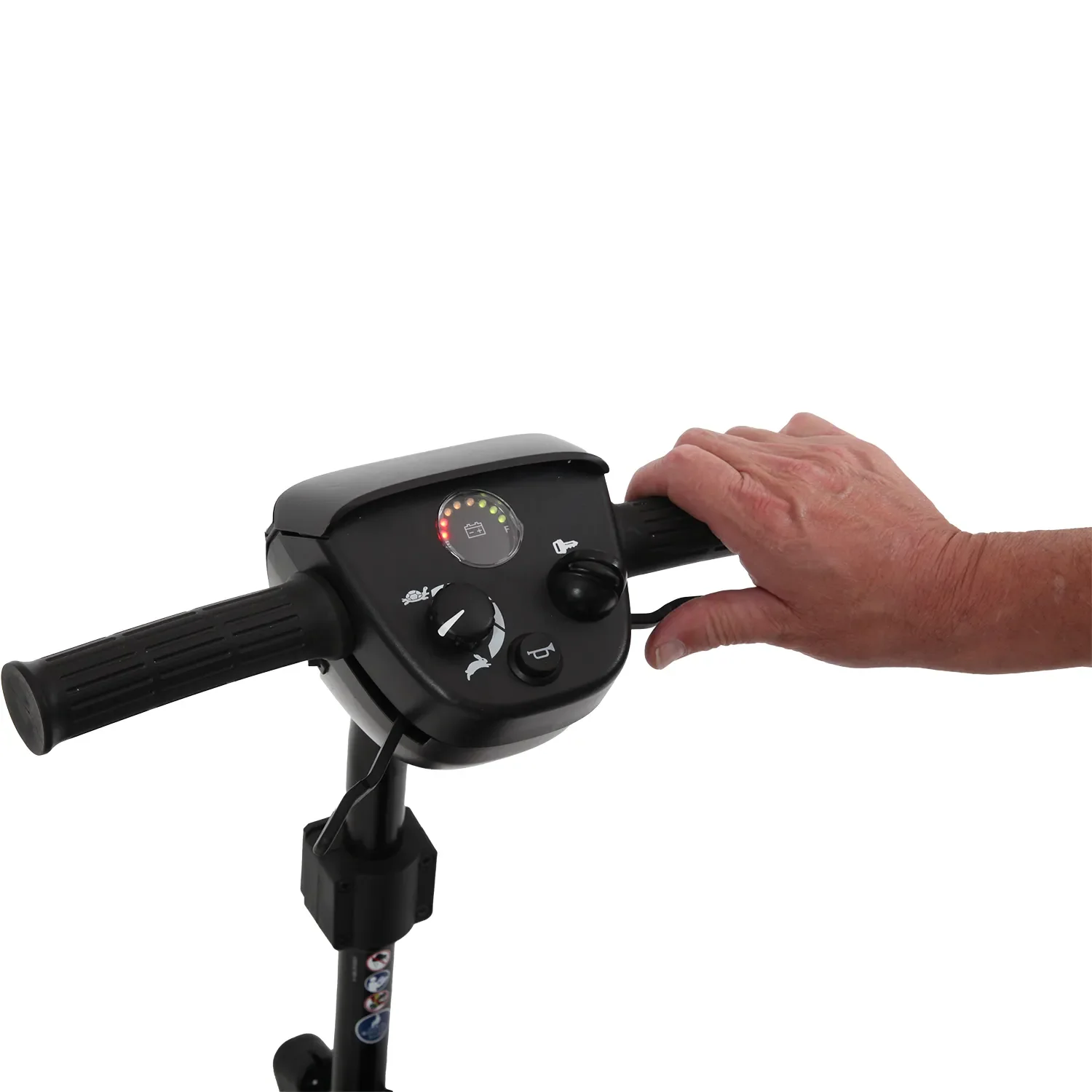

- Tiller with wig-wag throttle for forward and reverse, speed dial, horn and battery gauge

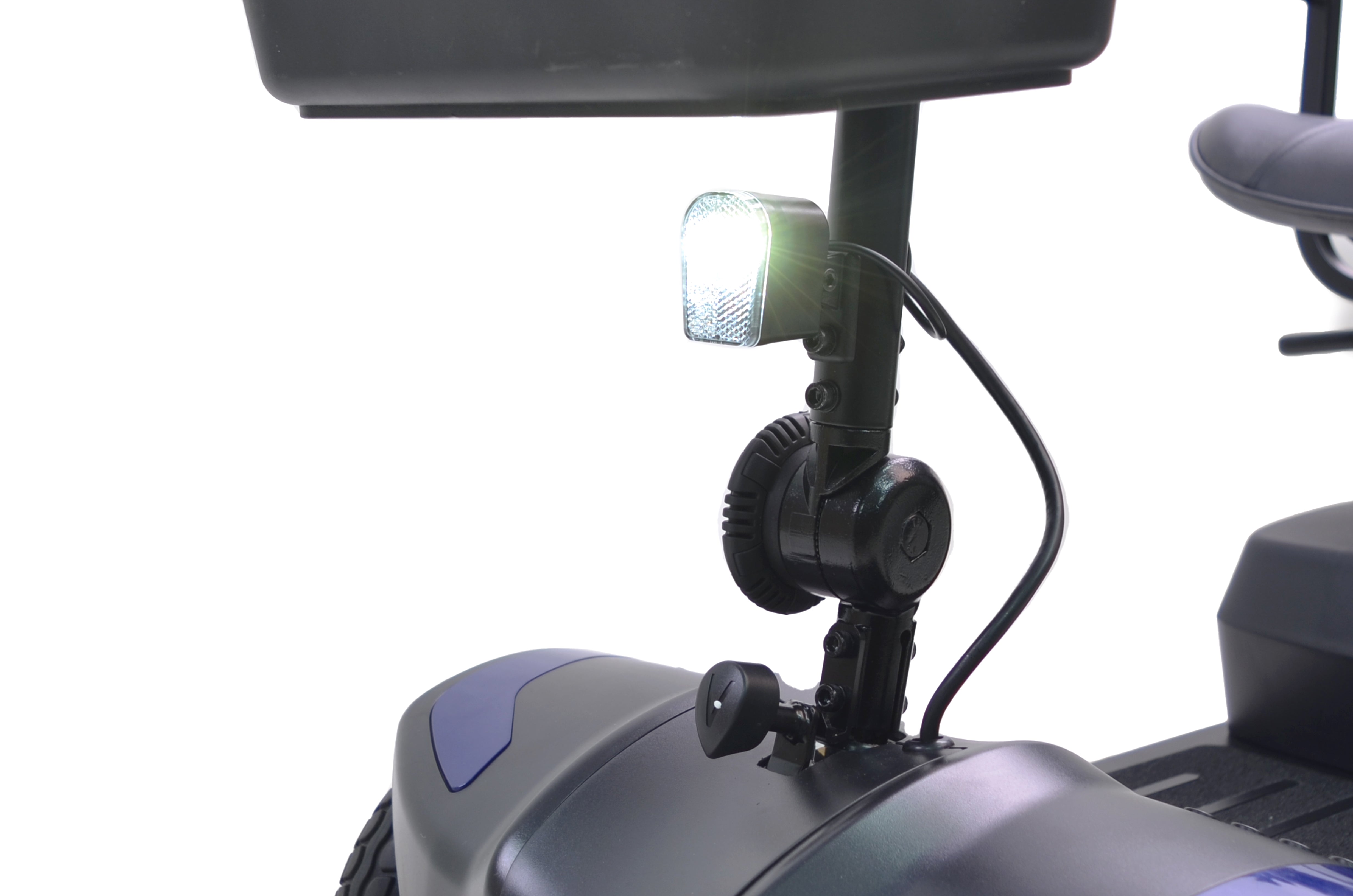

- Headlight, rear reflectors and fixed rear anti-tip wheels
- Key switch that powers the scooter down and can be removed to prevent unauthorised use
- Fault codes shown by the battery gauge flash count for troubleshooting
- Not FAA approved: the sealed lead-acid batteries cannot be flown
Technical Specifications:
Overview | |
|---|---|
| Model Number | 08910 |
| Type | Scooter, rear wheel drive, Class A |
| Total Weight, Battery Included | 96 lbs (43.5 kg) |
| Battery Weight | 20 lbs (9 kg) |
| Heaviest Single Part, Front Frame Assembly | 33 lbs (15 kg) |
| Disassembly | 5 pieces, tool-free: seat, battery pack, front frame, rear frame, basket |
| Maximum User Weight | 300 lbs (136 kg) |
| Structural Frame Warranty | 24 Months |
| Electronics and Drivetrain Warranty | 12 Months |
| Battery Warranty | 6 Months |
| Air Travel | Not FAA approved, sealed lead-acid batteries |
| FSA / HSA Eligibility | Eligible with most plans |
Power System | |
| Battery | AGM sealed lead-acid, 24 V, 15 Ah, two 12 V deep-cycle cells |
| Motor | 270 W with electromagnetic brake |
| Controller | Dynamic 50 A |
| Charger | Off-board, input 100 to 240 VAC, output 24 VDC 2.0 A |
| Charging Time | 8 to 14 hours |
| Protection Class | IP X5 |
Performance and Handling | |
| Maximum Speed, Forward | 5 mph (8 km/h) |
| Range per Charge | Up to 12.4 miles (20 km), tested to ISO 7176-4 |
| Maximum Safe Slope | 6 degrees |
| Maximum Obstacle Height | 2" (5 cm) |

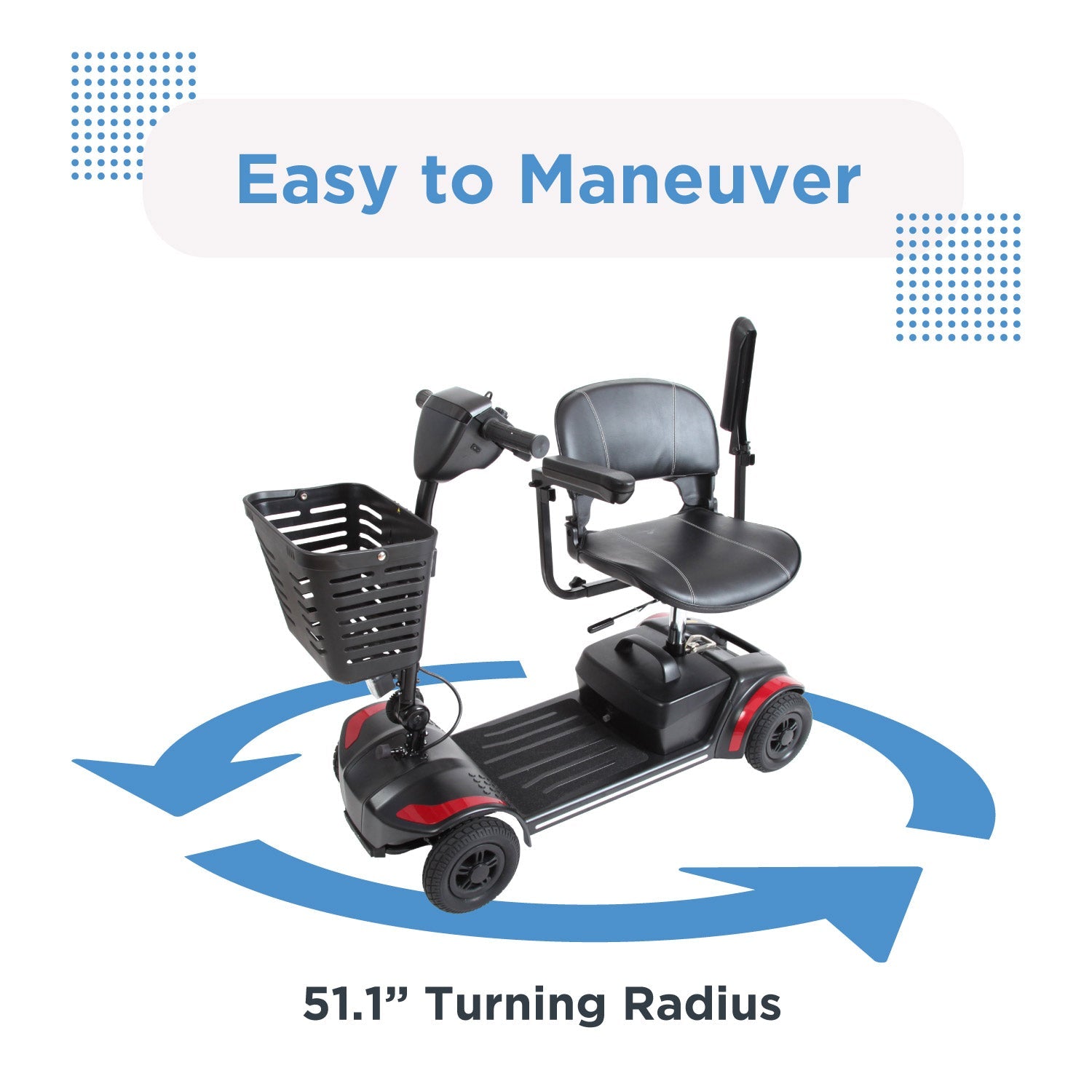

| Minimum Turning Radius | 51.1" (130 cm) |
| Minimum Width Required to Reverse | 51.1" (130 cm) |
| Required Doorway Entry Depth | 54.3" (138 cm) |
| Minimum Braking Distance at 5 mph | 54.3" (138 cm) |
| Maximum Motor Sound Level | 68 dB |
Dimensions and Wheels | |

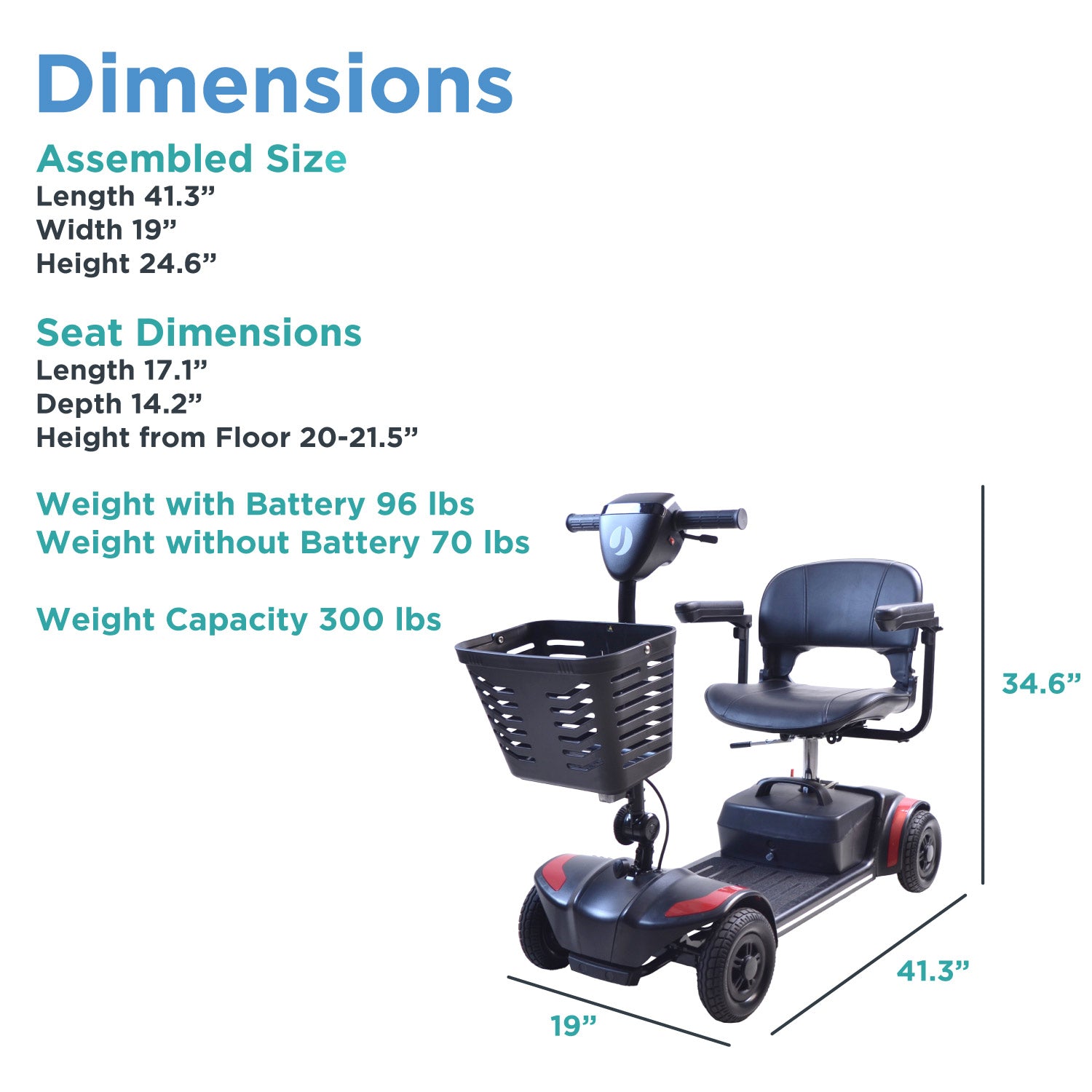

| Unfolded, Length x Width x Height | 41.3" x 19" x 34.6" (105 x 48 x 88 cm) |
| Folded, Length x Width x Height | 41.1" x 19" x 13.8" (104 x 48 x 35 cm) |
| Front Wheels | 8" x 2.5" |
| Rear Wheels | 8" x 2.5" |

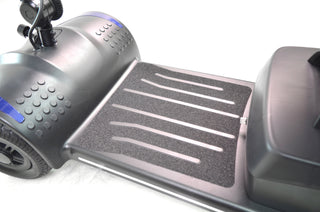

| Footplate Height | 4.3" (11 cm) |
Seating | |
| Seat Type | Full swivel, height adjustable, removable |
| Effective Seat Width | 17.1" (43 cm) |
| Effective Seat Depth | 14.2" (36 cm) |
| Seat Surface Height at Front Edge | 20" to 21.5" (51 to 55 cm) |
| Seat Surface Angle | 3 degrees |
| Backrest Height | 13" (33 cm) |
| Backrest Angle | 20 degrees |
| Armrest Adjustment Range | 18.1" to 26" (46 to 66 cm) |
Compliance and Environment | |
| EMC | ISO 7176-21, IEC 60601-1-2:2014, immunity 20 V/m |
| Upholstery Ignitability | EN 1021-2 |
| Operating and Storage Temperature | -10 to 50 C (14 to 122 F) |
| Operating and Storage Humidity | 30% to 70% |
Variants, SKUs and UPCs | |
| Blue | SKU 08910BLU, UPC 850044523917 |
| Red | SKU 08910RED, UPC 850044523924 |
