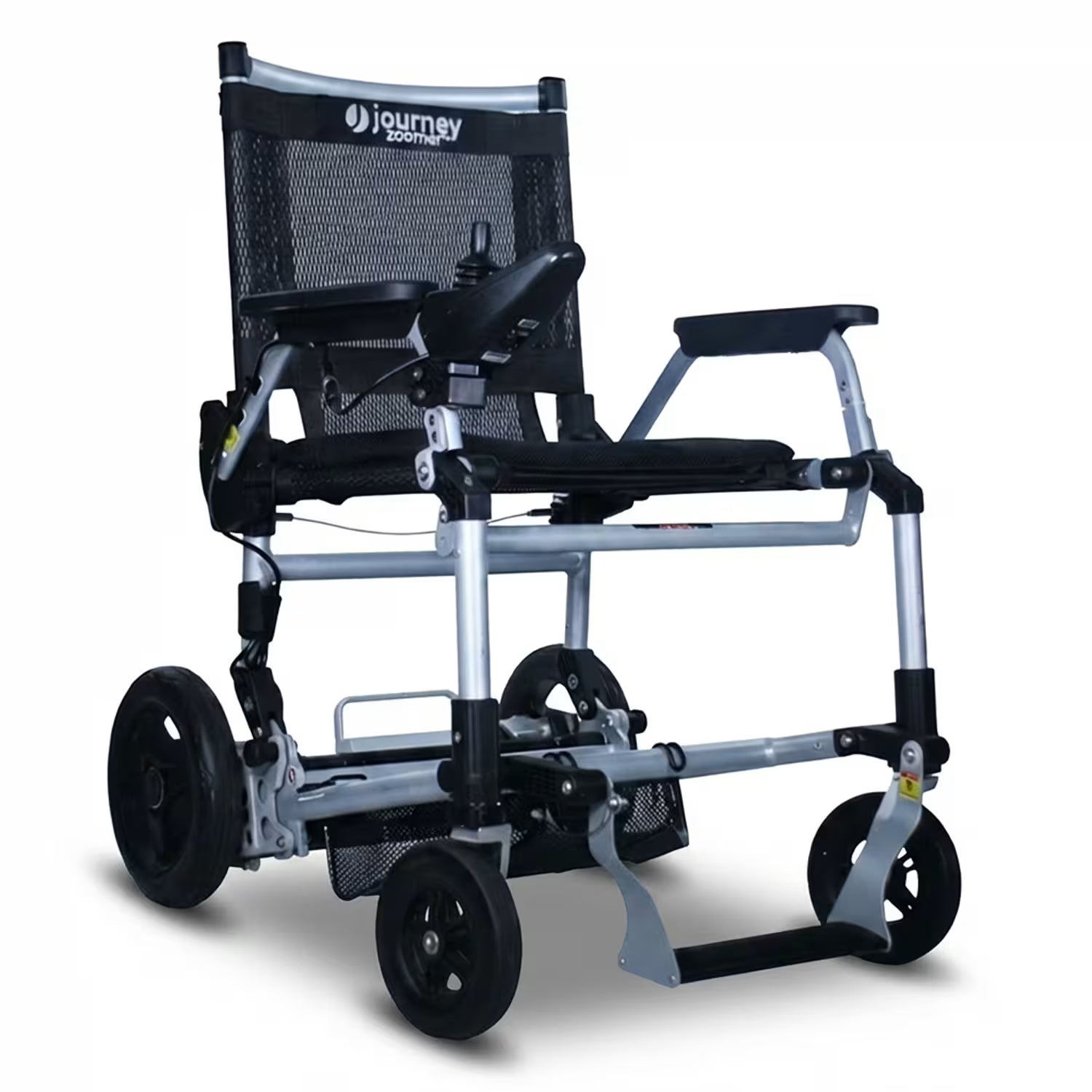

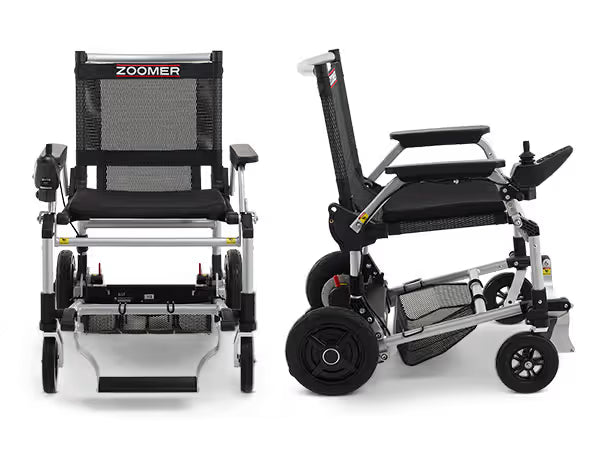

Journey 09017 Zoomer Folding Power Chair, Reversible Joystick Control, 300 lb Capacity, Electromagnetic Braking, Aircraft-Grade Aluminum Frame
The Zoomer sits between a power chair and a mobility scooter. It is driven by a single joystick that mounts on either armrest, so it can be operated one-handed from whichever side suits the user, and it turns on its own axis when the joystick is pushed straight left or right. At 39.7 lbs with the battery installed it is light for its class, and the folding design breaks into two parts, the heaviest of which is 19 lbs.
Folding takes one pull of the release cable and no tools. Folded, the chair is 11.25 inches deep and rolls behind the user like a suitcase once the brake levers are moved to free wheeling. The rear wheel frame also detaches for tighter storage. Braking is electromagnetic: releasing the joystick or returning it to centre engages the brake automatically, with a stopping distance within 39.4 inches. Rear anti-tip wheels, flat-free solid tires and a padded seat with a breathable mesh back round out the chair, and an anti-theft lock disables the joystick until a code is entered on the control panel.
Journey states that the Zoomer is a personal electric vehicle, not a medical device, and that it has not been submitted to the Food and Drug Administration for review. It is not intended for individuals fully restricted to a seated position. Journey rates it for smooth indoor surfaces, sidewalks and paved areas, and does not recommend it for grass, loose gravel, steep slopes or wet conditions.

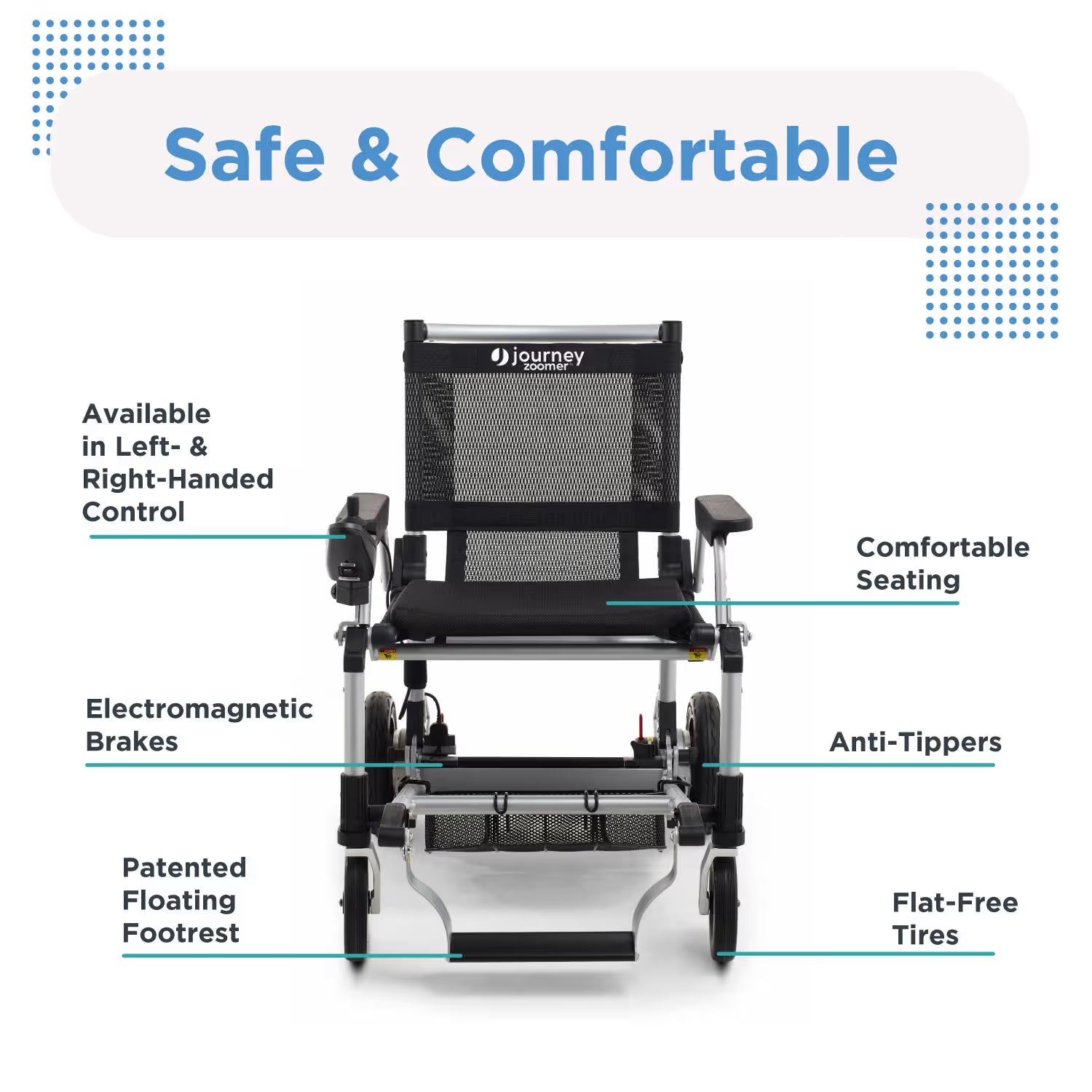

Features

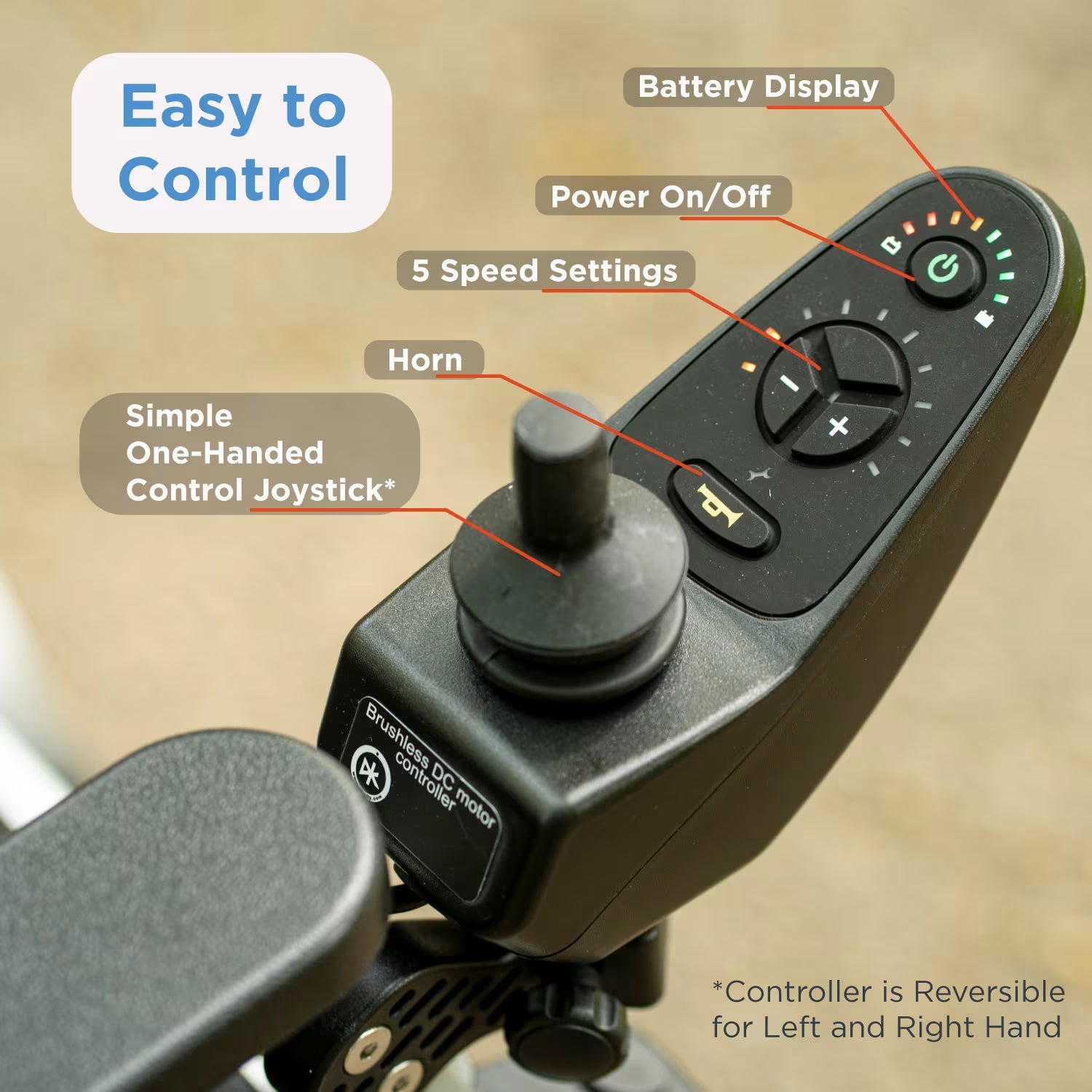

- Reversible joystick controller that mounts on either armrest for left or right hand use
- Five speed levels from 1.2 mph up to 3.7 mph, with a ten-light speed display and horn
- Turns on its own axis by pushing the joystick directly left or right
- Electromagnetic braking that engages the moment the joystick returns to centre

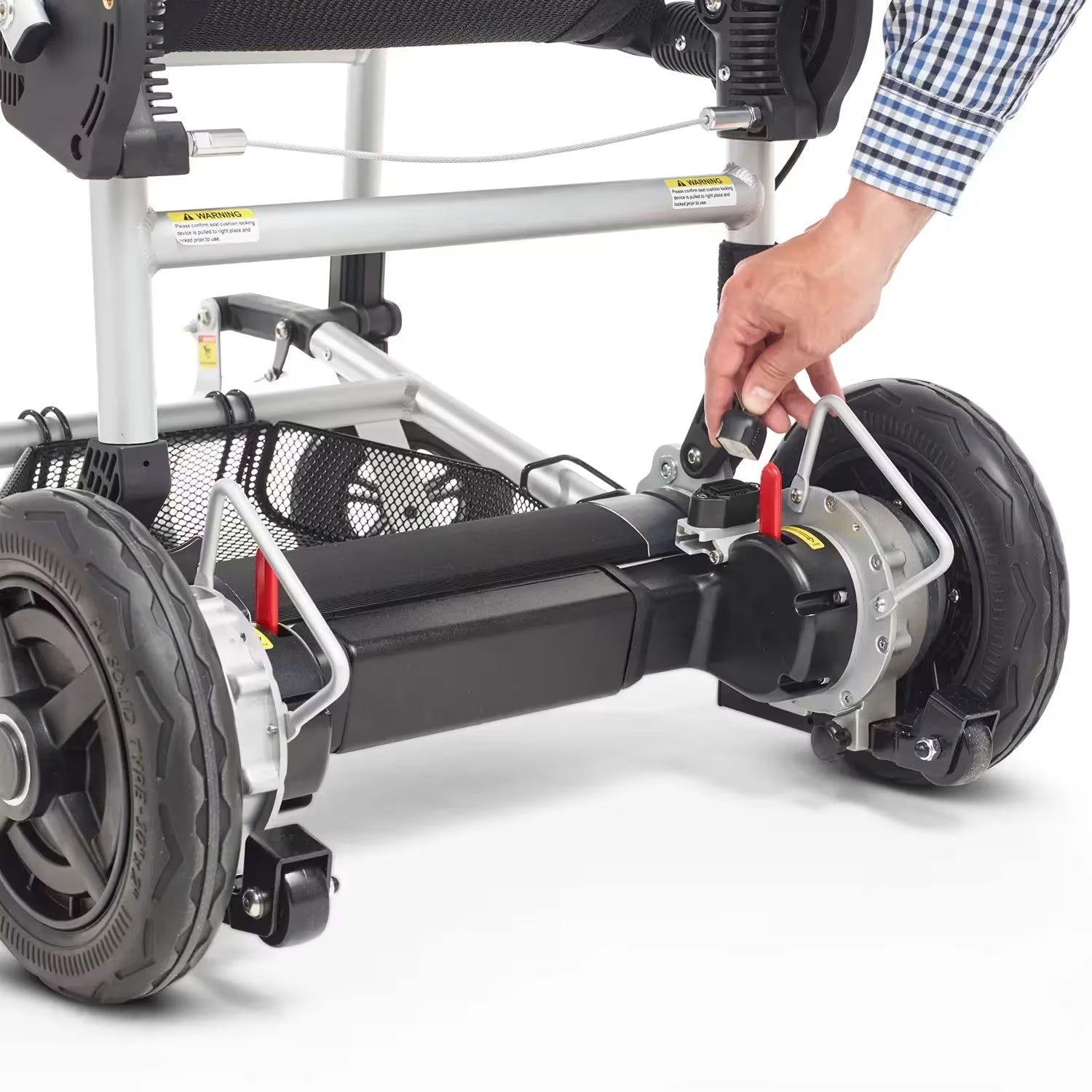

- Free wheeling mode so a caregiver can push the chair or roll it like luggage
- One-handed, tool-free folding to an 11.25 inch depth

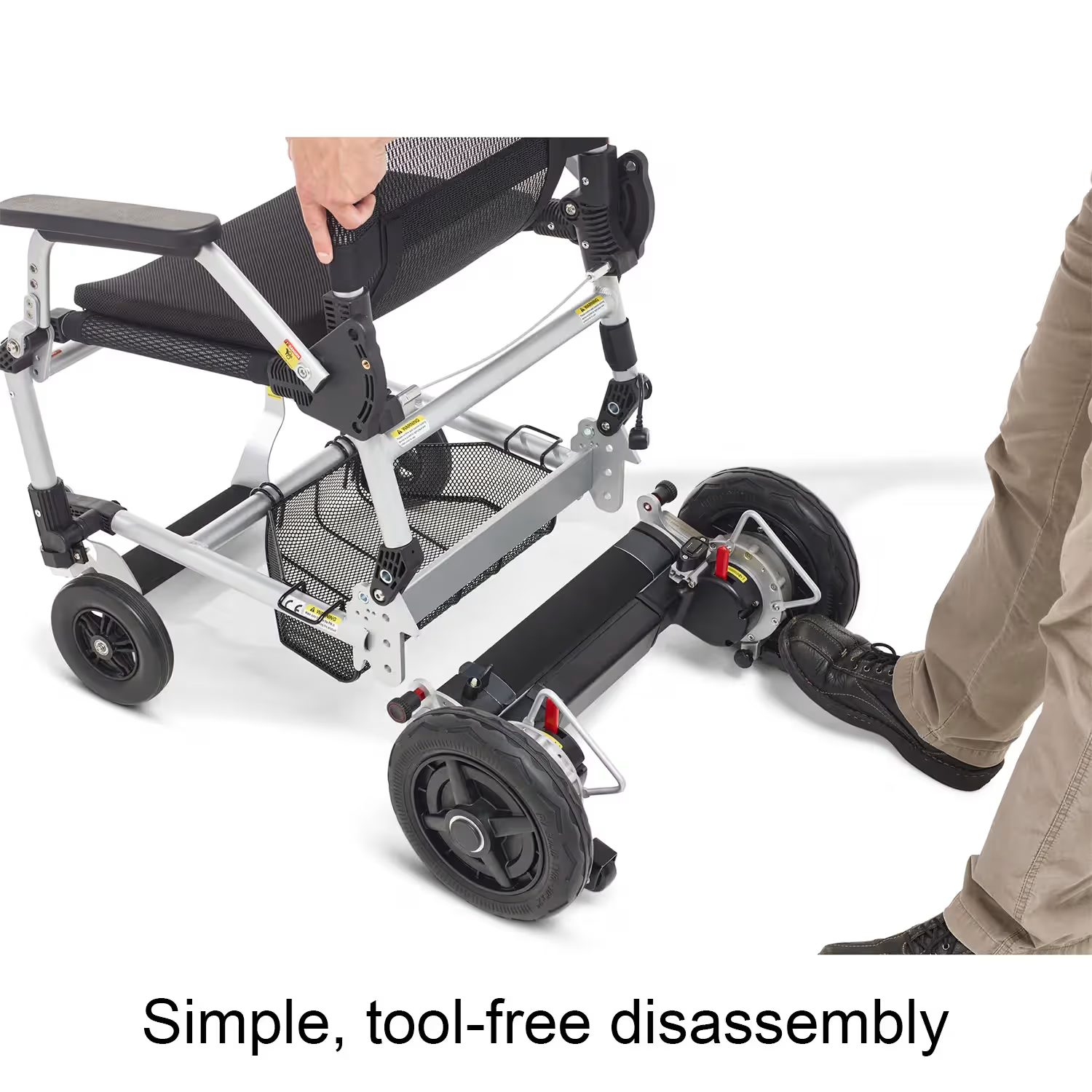

- Splits into two parts for lifting, heaviest section 19 lbs, and the rear wheel frame detaches
- Patented floating footrest that swings back with a nudge of the foot, no bending required

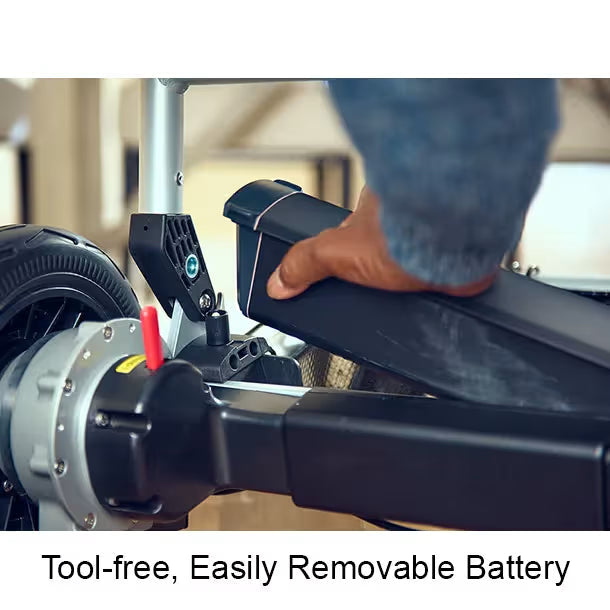

- Removable 10.5 Ah lithium-ion battery, within the 300 Wh spare battery limit for air travel
- Anti-theft lock that disables the joystick until unlocked from the control panel
- Two DC brushless motors, rear anti-tip wheels and flat-free solid PU tires
- Overcurrent and over-discharge protection built into the electronics
Technical Specifications:
Overview | |
|---|---|
| Model Number | 09017 |
| Device Classification | Personal Electric Vehicle |
| Weight with Battery | 39.7 lbs (18 kg) |
| Weight without Battery | 35.7 lbs (16.2 kg), front frame 19 lbs, rear wheel frame 16.8 lbs |
| Maximum User Weight | 300 lbs (136 kg) |
| Frame, Mechanical and Electrical Warranty | 12 Months |
| Battery, Tires, Seat and Cushion Warranty | 6 Months |
| Air Travel | FAA Compliant, one spare battery up to 300 Wh carried in cabin |
| FSA / HSA Eligibility | Eligible with most plans |
Performance and Handling | |
| Maximum Speed | 3.7 mph (6 km/h) |
| Minimum Speed | 1.2 mph (2 km/h) |
| Speed Levels | 5 |
| Range per Charge | 9.3 miles (15 km) |
| Maximum Climbing Angle | 12 degrees |

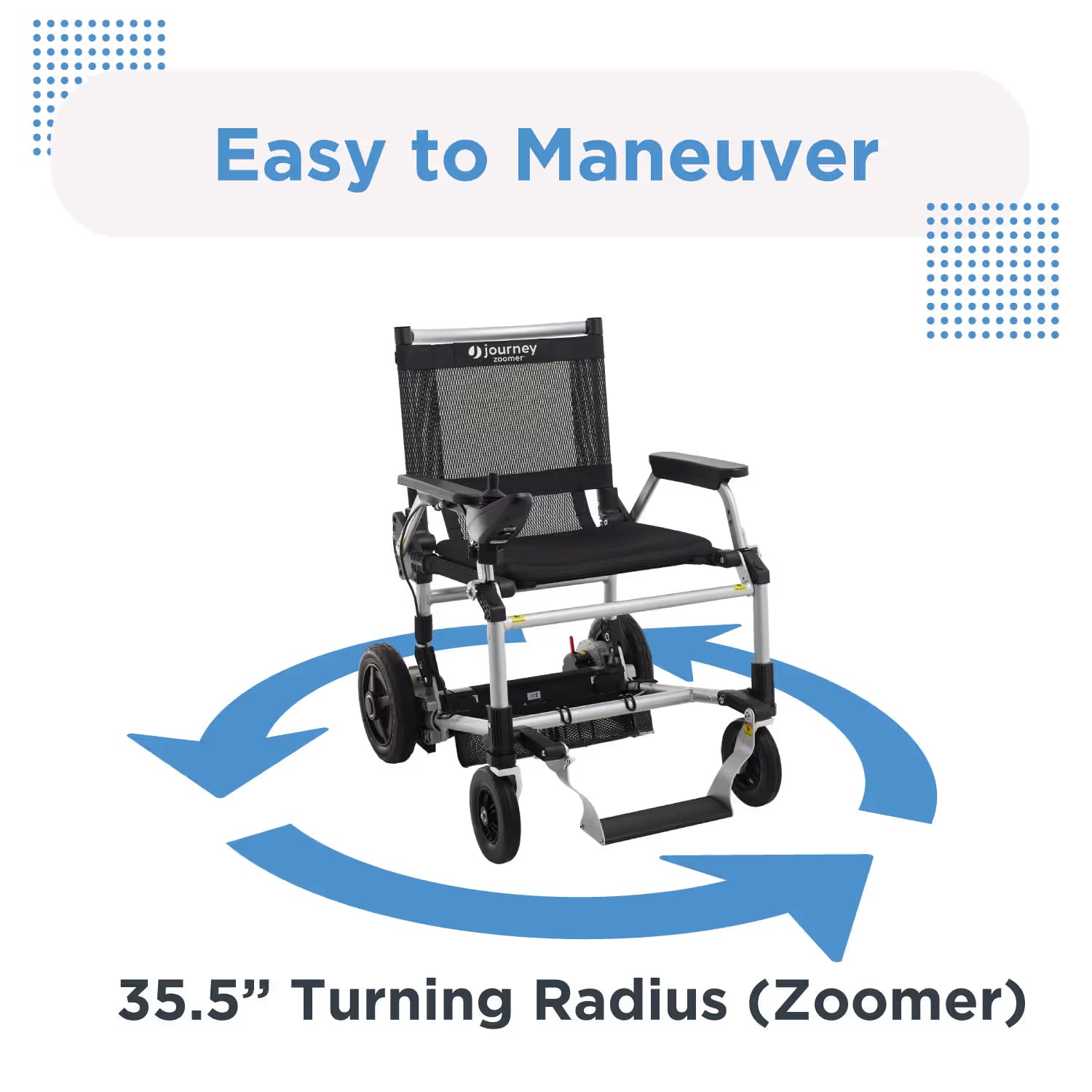

| Maximum Turning Radius | 35.5" (902 mm) |
| Brake System | Electromagnetic, with free wheeling mode |
| Braking Distance | Within 39.4" (1,000 mm) |
Power System | |
| Motor Type | DC brushless, 220 W, 24 V |
| Number of Motors | 2 |
| Battery | Lithium-Ion, 10.5 Ah, 24 V DC |
| Charging Time | 4.5 hours or less |
| Charging Temperature Range | 23 to 104 F (-5 to 40 C) |
Wheels | |
| Front Wheels | 7" solid PU tires, 2 wheels |
| Rear Wheels | 10" solid PU tires, 2 wheels |
Dimensions | |
| Unfolded, Length x Width x Height | 32.5" x 24.25" x 34.75" (83 x 62 x 88 cm) |
| Folded, Length x Width x Height | 38.75" x 24.25" x 11.25" (98 x 62 x 29 cm) |
| Seat Width | 19" (48 cm) |
| Seat Depth | 15" (38 cm) |
| Seat Height from Floor | 19" (48 cm) |
Variants, SKUs and UPCs | |
| Black | SKU 09017BLK, UPC 860008319937 |
| Blue | SKU 09017BLU, UPC 860008319944 |
