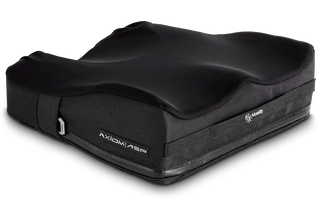

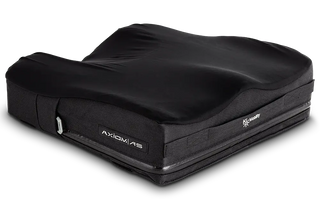

Ki Mobility XASxxxx/XASPxxxx Axiom AS&ASP Fluid Cushion, Light, Maximum Stability, E2622/3 for Axiom AS, E2624/5 for Axiom ASP
Axiom's patented self-adjusting fluid system makes fitting and adjustment incredibly simple. It uses the rider’s bodyweight and physical characteristics to automatically adjust the fluid volume to create optimum loading.

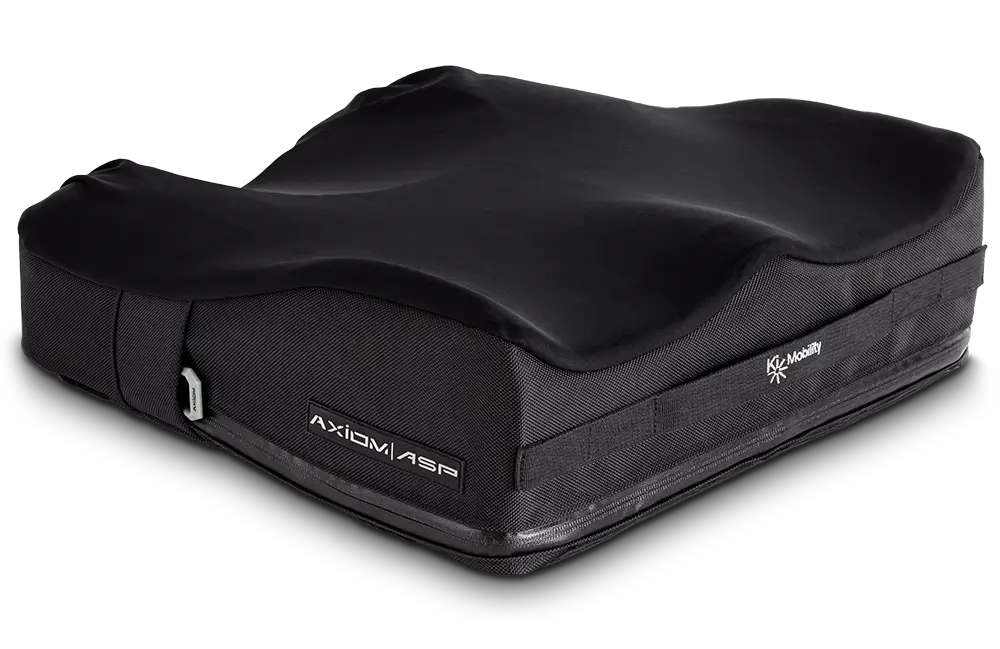

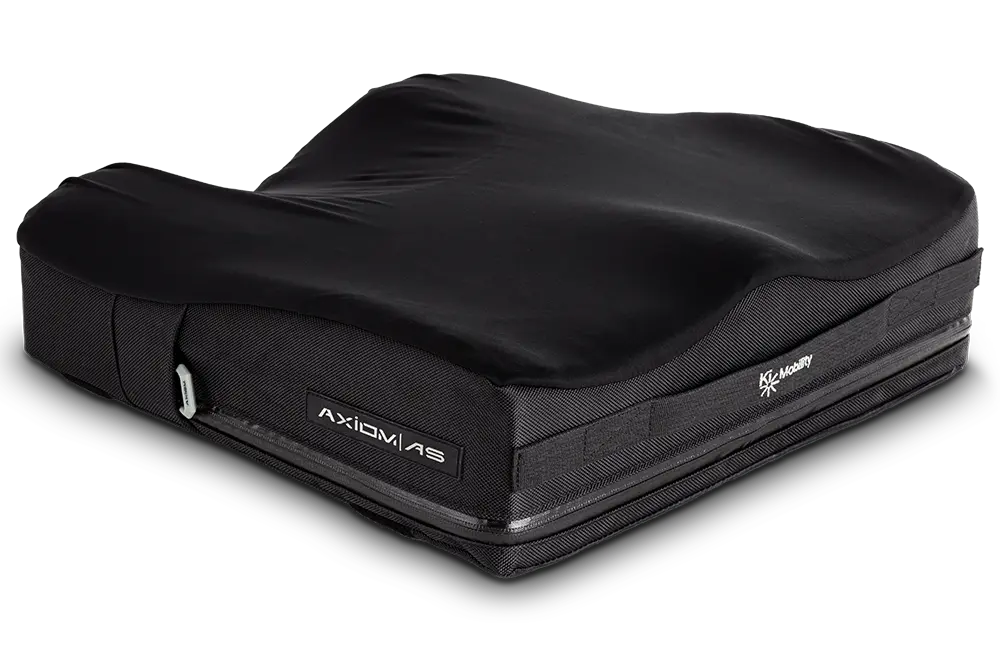

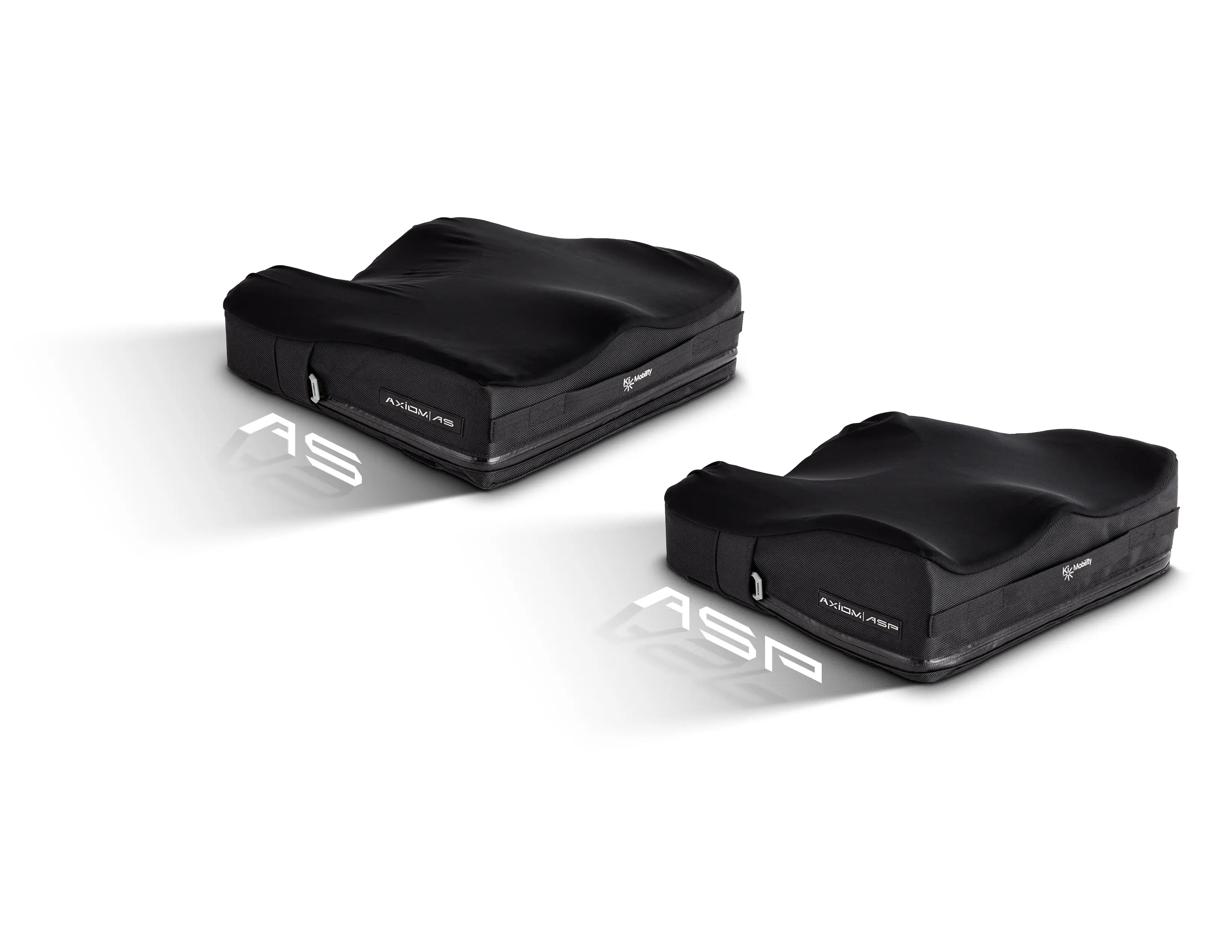

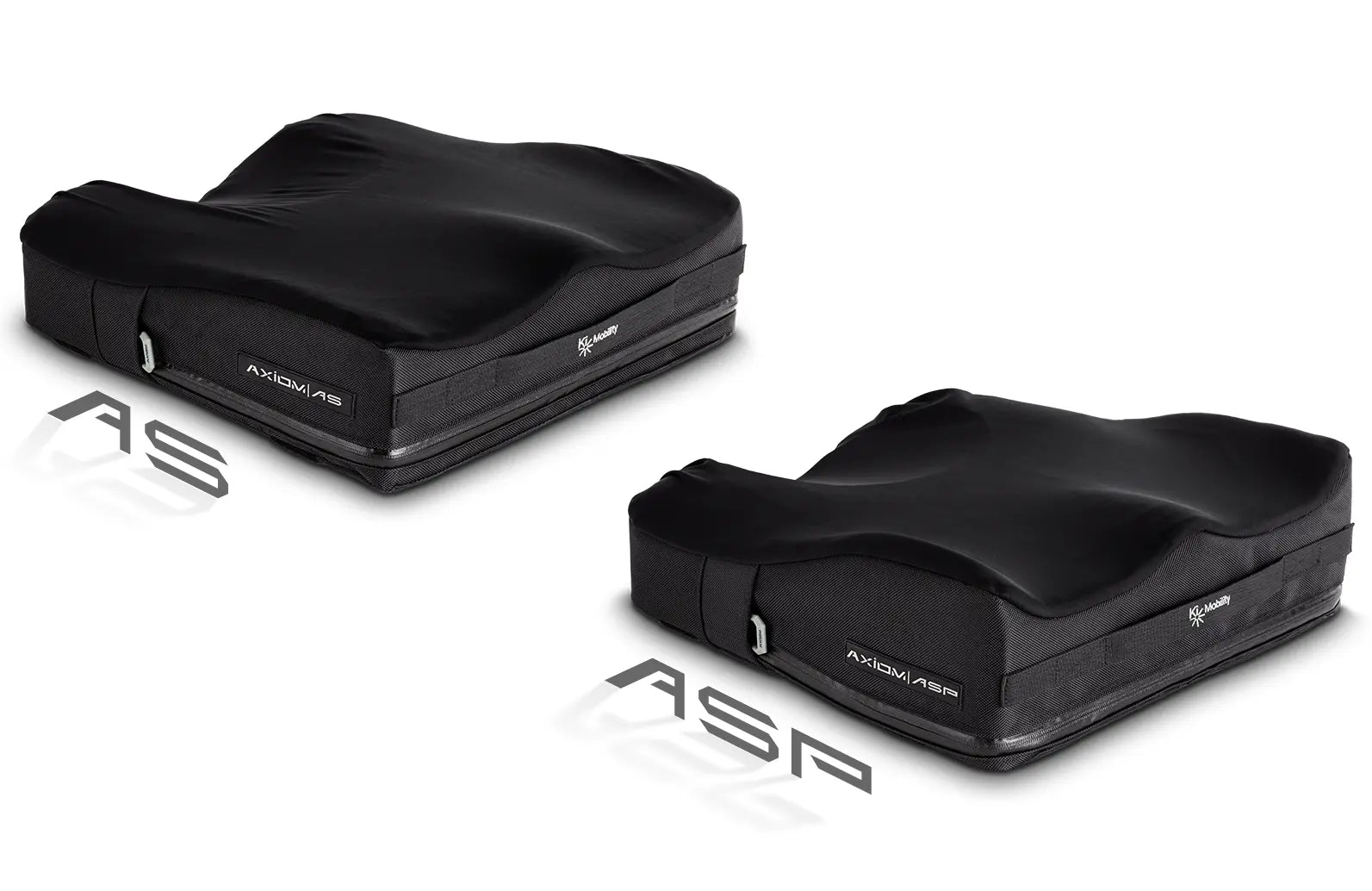

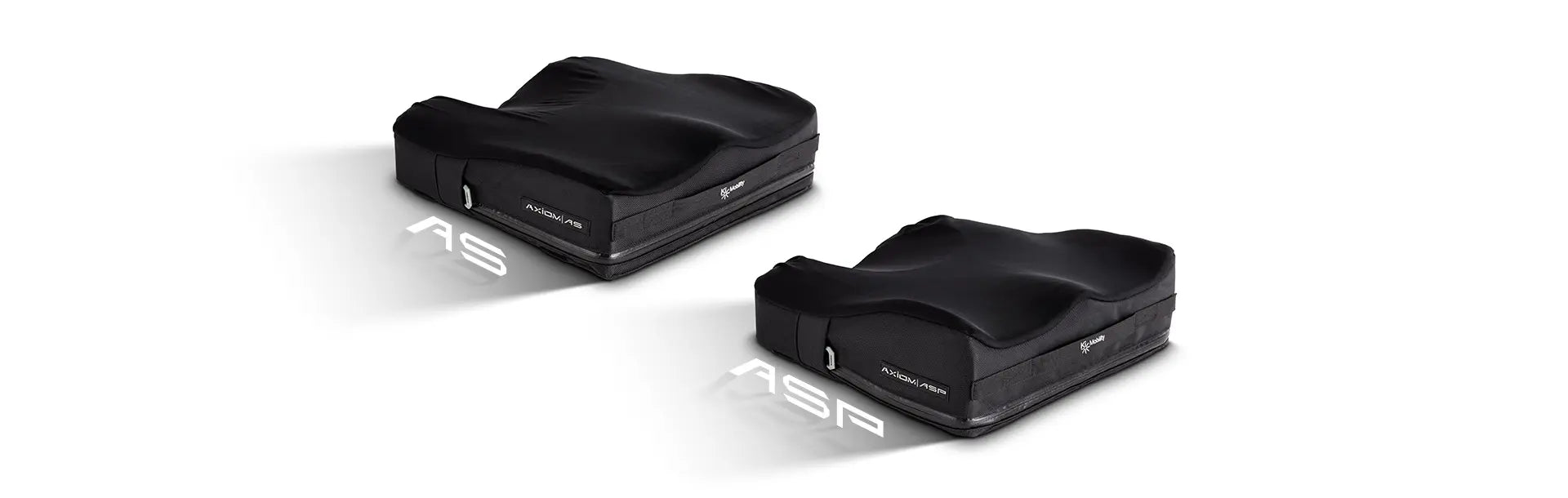

Available in 2 models, Adjustable Skin (AS) and Adjustable Skin & Positioning (ASP).
Features
-
The users' anatomic shape and mass are the only tools needed to ensure a precise and optimal fit. The cushion is designed to react to the weight of the user to dictate the degree of immersion required. As soon as load is equally distributed the adjustment is complete.
-

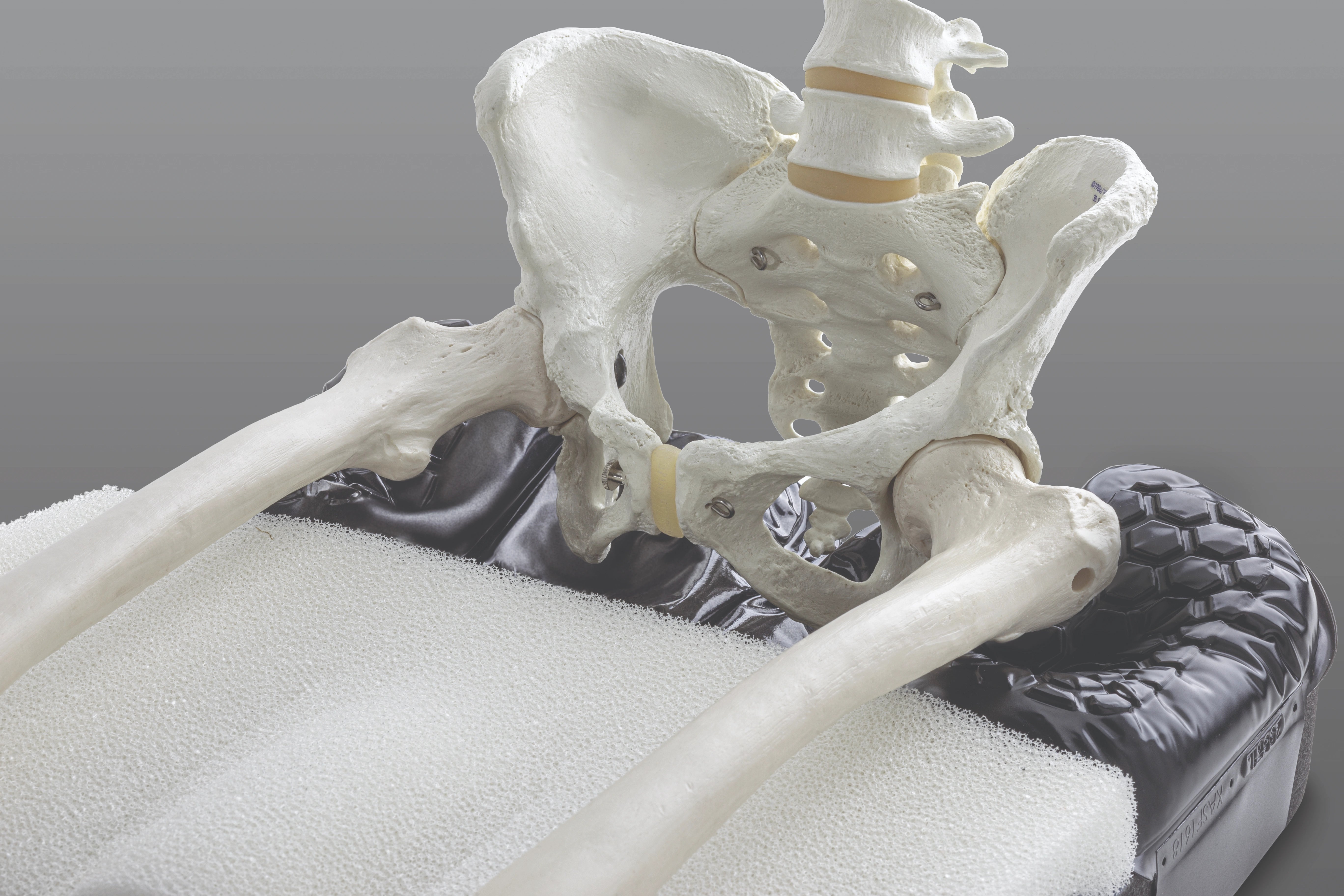

The cushion allows the femurs, trochanters, and ischia to all be independently loaded. The fluid under the ischia is specifically engineered to reduce shear strain while The trochanteric bladders are filled with a stiffer version of Hydrolite for stability when moving and reaching.
-
Axiom's Hydrolite is incredibly light, eliminating the "weight penalty" of other fluid cushions. Also, it's less sensitive to temperature, so the fluid performs consistently regardless of how hot or cold the climate.
-

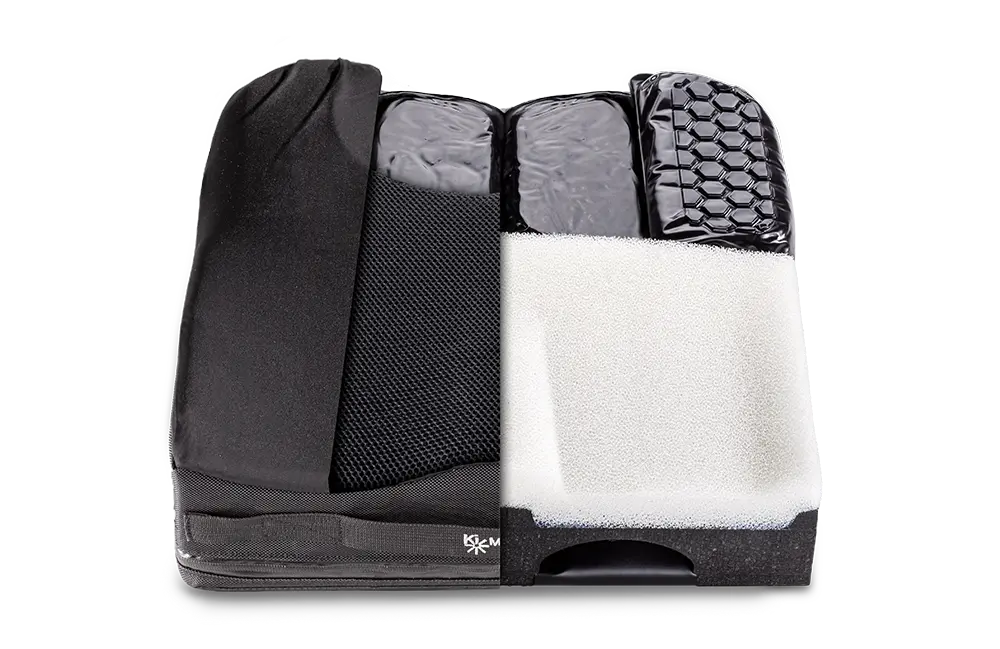

The cushion base features a dense layer of reticulated foam under a layer of spacer fabric to allow air to flow. The foam base is closed cell and designed with pathways that allow moisture to flow through and away from the body, maintaining a cooler and drier skin interface.
-
Axiom cushions are pre-contoured to facilitate loading the trochanters, decrease ischial loading and improve lateral stability.
-
Anthropometrics
Axiom cooperated with Georgia Tech to study actual pelvic dimensions and other human measurements. This was critical to designing the cushion's contours so they properly fit the broad range of users.
-
The ischial bladders rests directly under the outer layer of the cover. By using the super 4-way stretch Lycra outer cover material, surface tension is significantly reduced, providing better immersion.
Product Specifications
|
Axiom AS |
Axiom ASP |
| Width |
14" - 22" (35.6 - 55.9 cm) |
14" - 22" (35.6 - 55.9 cm) |
| Depth |
14" - 22" (35.6 - 55.9 cm) |
14" - 22" (35.6 - 55.9 cm) |
| Height (Leg Troughs) |
3.8" (9.5 cm) |
3.8" (9.5 cm) |
| Height (Overall) |
4.5" (11.4 cm) |
5.5" (14 cm) |
| Weight |
3.3 lbs (1.5 kg) |
3.3 lbs (1.5 kg) |
| Weight Capacity |
350 lbs (158.8 kg) |
350 lbs (158.8 kg) |
| HCPCS |
E2622/3 |
E2624/5 |
Warranty
- The expected life of the frame is five years.
-
A. For 24 Months
Ki Mobility warrants the cushion to be free from defects in materials and workmanship for a period of 24 months. This limited warranty applies to:
Axiom AS/ASP Cushion Base & Axiom AS/ ASP Fluid Pads
For a period of 24 months (2 years) from the date of purchase, provided normal use, should a defect in materials or workmanship occur, Ki Mobility will, at its option, repair or replace it without charge. This warranty does not apply to punctures, tears, or burns.
-
B. For 6 Months
Ki Mobility warrants the cushion to be free from defects in materials and workmanship for a period of 6 months. This limited warranty applies to:
Axiom AS/ASP Removable Cover
For a period of 6 months from the date of purchase, provided normal use, should a defect in materials or workmanship occur, Ki Mobility will, at its option, repair or replace it without charge. This warranty does not apply to punctures, tears or burns.
-
C. Limitations
- We do not warrant:
a. Damage from neglect, accident, misuse, or from improper installation or repair.
b. Products modified without Ki Mobility’s express written consent.
c. Damage from exceeding the weight limit.
- This warranty applies in North America only.
Check with your supplier to find out if international warranties apply.
- This warranty is not transferable and only applies to the first consumer purchase of this product through an authorized Ki Mobility supplier.
