Ki Mobility XSPxxxxF Axiom SP Fluid Cushion, Skin Protection and Positioning, Hydrolite Fluid Bladder, The Dual Density Polyurethane Foam
Like the Axiom SP Visco, the Axiom SP Fluid is designed to provide increased immersion, allowing the trochanters to bear an effective load, widening the base of support, and reducing the load the Ischial Tuberosities must bear. The Axiom SP Fluid uses a Hydrolite® fluid bladder instead of Viscoelastic Foam. The bladder rests directly under the super stretch outer cover, allowing it to conform to the tissues supporting the Ischial Tuberosities.
Fluid functions very differently than foam. While foam must compress and has elastic characteristics, fluid displaces. It actually moves away from a shape and tries to create an equilibrium where all the areas in contact with the shape have equal loading. Hydrolite® is a non-Newtonian fluid that behaves as a solid under the force of gravity, but flows as a viscous fluid under load, which can help minimize shear. It is also incredibly light, eliminating the “weight penalty” of other fluid cushions.
Features
-
Hydrolite Fluid Bladder
- The Axiom SP Fluid uses a Hydrolite fluid bladder instead of Viscoelastic Foam. The bladder rests directly under the super stretch outer cover, allowing it to conform to the tissues supporting the Ischial Tuberosities.
- Hydrolite is a non-Newtonian fluid that behaves as a solid under the force of gravity, but flows as a viscous fluid under load, which can help minimize shear. It is also incredibly light, eliminating the "weight penalty" of other fluid cushions. It is less temperature sensitive than other fluids, meaning it will provide more consistent performance regardless of climate.
-
Axiom SP Fluid is designed to provide increased envelopment, allowing the trochanters to bear an effective load. This improves stability by widening the base of support and reduces the load the tissue that supports the Ischial Tuberosities must bear.
-
Axiom SP Fluid is constructed with foam that has a high IFD and density. The dual density polyurethane foam base offers firm support in the lower layer with a durable comfort layer on top. High-quality materials lead to a long-lasting, comfortable, and high-performing product.
-

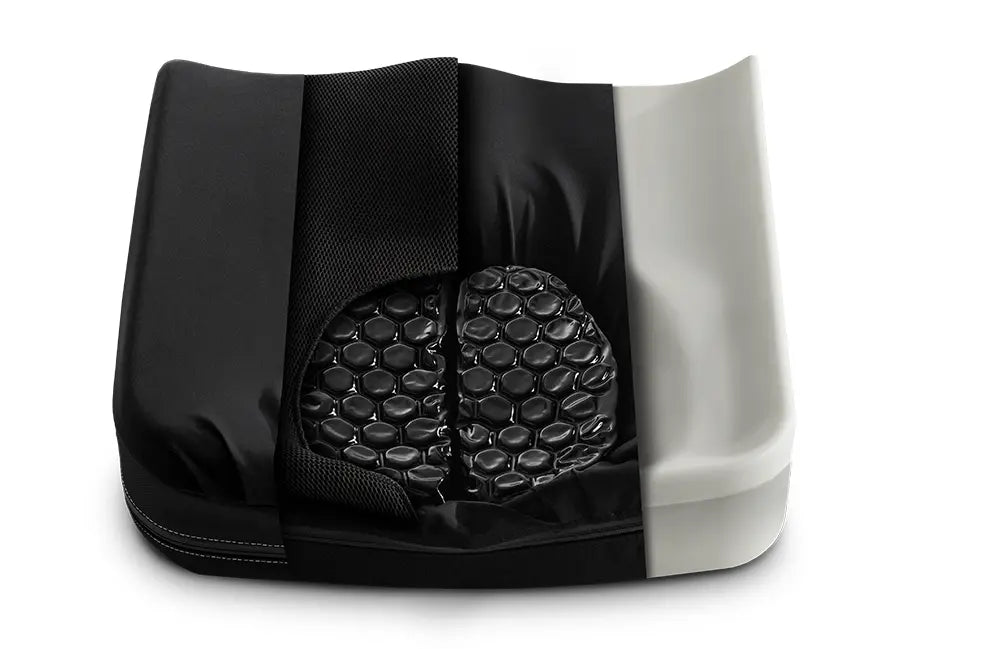

The Hydrolite fluid bladder sits on top of the waterproof inner cover; reducing surface tension and maximizing envelopment of the ischia and coccyx. The bladder rests directly under the super stretch outer cover, allowing it to conform to the tissues supporting the Ischial Tuberosities. By using the super 4-way stretch Lycra outer cover material, surface tension is reduced, providing better immersion into the well.
-
It's important for all cushions to have a properly designed pre-contoured shape. That's why we cooperated with Georgia Tech to study anthropometrics. Axiom SP Fluid has a properly designed pre-contoured shape. Axiom SP Fluid is designed to provide increased immersion, allowing the trochanters to bear an effective load, widening the base of support, and reducing the load the Ischial Tuberosities must bear.
-

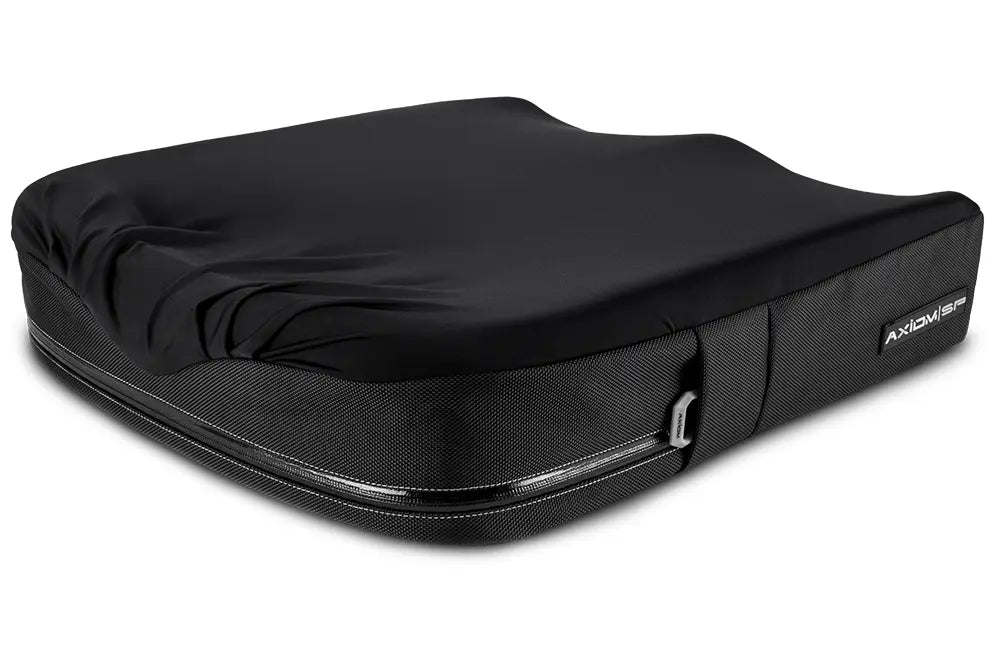

Axiom SP Fluid has an innovative cover that is aesthetically pleasing with functional benefits for both the client and caregiver. The super 4-way stretch Lycra outer cover reduces surface tension while the pleated 4-way stretch inner cover with self-sealing zipper is water resistant and is easy to clean. The water-resistant zipper and loop zipper pull make it simple to don and doff the cover while protecting the foam. There is an easy-to-reach front handle with utility loops for hanging accessories.
Product Specifications
| Width |
14" - 22" (35.6 - 55.9 cm) |
| Depth |
14" - 22" (35.6 - 55.9 cm) |
| Height (Leg Troughs) |
3.3" (8.3 cm) |
| Height (Overall) |
4.5" (11.4 cm) |
| Weight |
3.6 lbs (1.6 kg) |
| Weight Capacity |
350 lbs (158.8 kg) |
| HCPCS |
E2607/8 |
Warranty
- The expected life of the frame is five years.
-
A. For 24 Months
Ki Mobility warrants the cushion to be free from defects in materials and workmanship for a period of 24 months. This limited warranty applies to:
Axiom SP Cushion Base, Axiom SP Fluid Pad & Axiom SP Visco Cushion Base
For a period of 24 months (2 years) from the date of purchase, provided normal use, should a defect in materials or workmanship occur, Ki Mobility will, at its option, repair or replace it without charge. This warranty does not apply to punctures, tears, or burns.
-
B. For 6 Months
Ki Mobility warrants the cushion to be free from defects in materials and workmanship for a period of 6 months. This limited warranty applies to:
Axiom SP Fluid & Axiom SP Visco Removable Outer and Inner Covers
For a period of 6 months from the date of purchase, provided normal use, should a defect in materials or workmanship occur, Ki Mobility will, at its option, repair or replace it without charge. This warranty does not apply to punctures, tears or burns.
-
C. Limitations
- We do not warrant:
a. Damage from neglect, accident, misuse, or from improper installation or repair.
b. Products modified without Ki Mobility’s express written consent.
c. Damage from exceeding the weight limit.
- This warranty applies in North America only. Check with your supplier to find out if international warranties apply.
- This warranty is not transferable and only applies to the first consumer purchase of this product through an authorized Ki Mobility supplier.
