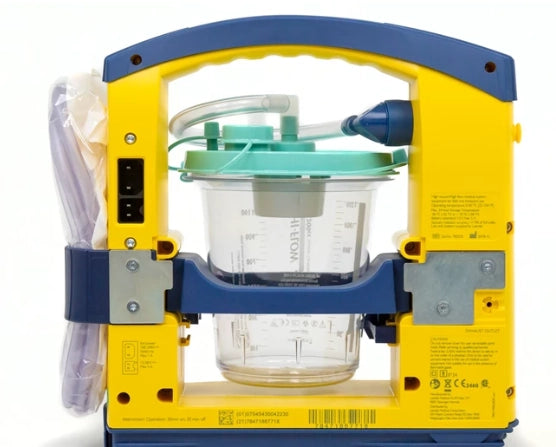

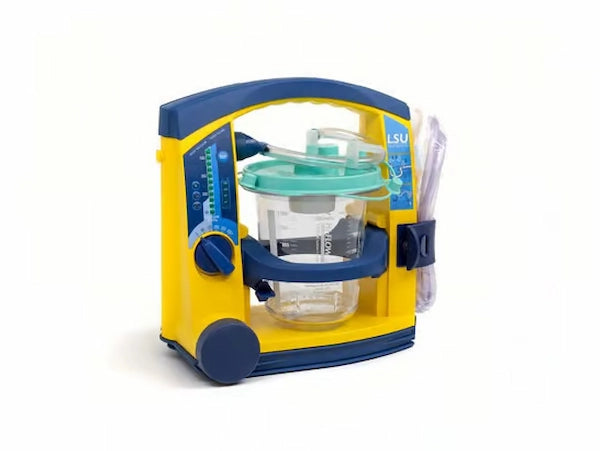

Laerdal 780020 LSU Portable Suction Unit with Bemis Canister
Laerdal 780020 LSU Portable Suction Unit with Bemis Canister
Laerdal 780020 LSU High-Vacuum Portable Suction Device with Disposable Bemis Canister for Powerful Emergency Airway Management & Clearance
Laerdal’s 780020 LSU with Bemis Canister is a rugged, portable suction unit designed for reliable airway clearance in pre-hospital and clinical emergencies. Featuring high vacuum (up to 500+ mmHg) and flow (>25 LPM), it delivers powerful performance with one-hand operation, integrated vacuum regulation, and visual LED indicators for battery and suction levels. Splash-proof and bump-resistant, it operates on a rechargeable 12V battery for up to 3+ hours at low settings or AC/DC power, with tool-free battery replacement. Quiet (46-56 dBA) and lightweight at 4 kg, it's ideal for EMS, ambulances, and trauma response. Compatible with 1000 mL disposable Bemis canisters for infection control; Made in the USA with a 5-year warranty for long-term durability.
Features:
- Powerful high-vacuum/high-flow suction (500+ mmHg max, >25 LPM free flow) for effective airway management in adults/pediatrics
- One-hand grip with combined ON/OFF and vacuum selector knob (5 levels: 80-500+ mmHg) for gloved use in high-stress scenarios
- Integrated LED bar graphs for real-time vacuum level and battery capacity monitoring, plus automatic power-save mode
- Splash-proof (IP34D) and rugged design withstands field conditions; quiet operation (46-56 dBA) minimizes patient distress
- Tool-free replaceable 12V 2Ah sealed lead-acid battery with 3-hour fast charge to 80% capacity; up to 3+ hours runtime at 80 mmHg
- Built-in AC/DC charger for versatile power (100-240 VAC or 12-28 VDC); operable while charging without external adapters
- Disposable Bemis canister system with float ball and aerosol filter prevents overflow and ensures hygienic, single-use collection
- Device test function verifies functionality (occlusion, vacuum build-up, leaks) for quick pre-use checks
- Compatible with accessories like carrying bags, wall brackets, and extra tubing for customized EMS integration
Specifications:
| Specification | Details |
|---|---|
| Model | 780020 LSU with Bemis Canister |
| Vacuum Range | 80 - 500+ mmHg (11 - 67 kPa) |
| Free Air Flow | >25 LPM at max vacuum |
| Canister Capacity | 1000 mL (disposable Bemis) |
| Battery Type | 12V 2Ah Sealed Lead-Acid, Rechargeable |
| Battery Runtime | Up to 3h 20min at 80 mmHg; 1h 30min at 200 mmHg |
| Charge Time | 3 hours to 80%; 24 hours full |
| Dimensions | 12.4" x 13" x 6.3" (h x w x d) |
| Weight | 8.9 lbs (4 kg) including battery |
| Noise Level | 46-56 dBA |
| Power Input | 100-240 VAC / 12-28 VDC |
| Warranty | 5-Year Limited |
| Compliance | ISO 10079-1, IEC 601-1 |
Contents
| Description | Quantity |
|---|---|
| LSU Suction Unit | 1 |
| Disposable Bemis Canister (1000 mL) | 1 |
| AC Power Cord | 1 |
| DC Power Cord | 1 |
| Patient Suction Tubing (1.5 m) | 1 |
| Aerosol Filter | 1 |
| Directions for Use | 1 |
