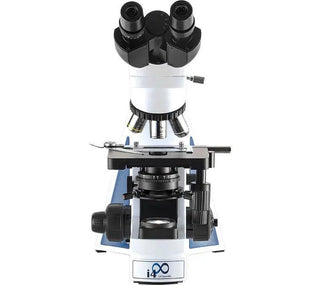

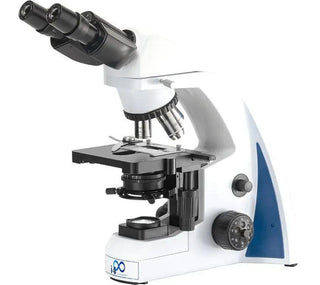

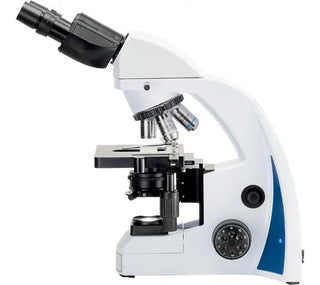

LW Scientific i4 Infinity Plan Compound Microscope, 4X to 100X Oil Objectives, Rotating Seidentopf Head, LED Illumination
The LW Scientific i4 Infinity is a laboratory compound microscope with Infinity Plan objectives for clinical, veterinary, research and teaching labs. Its Seidentopf head is inclined and rotates fully, so the eyepiece height can be set for taller users.
Cool LED illumination with variable light adjustment, a mechanical stage with coaxial controls and an Abbe condenser with iris diaphragm cover routine brightfield work. Per LW Scientific, all lenses carry a 30-year anti-fungal coating.
Features:
- Infinity Plan objectives: 4X, 10X, 40XR and 100XR oil
- Seidentopf head, inclined 30°, rotates 360°, diopter adjustment
- 10X/18 wide-field eyepieces
- Reverse quadruple ball-bearing nosepiece
- Mechanical stage with coaxial drive and acid and reagent resistant finish
- Abbe condenser, NA 1.25, with iris diaphragm
- Variable LED illumination with blue and green filters
- Auto-switching 100-240V power input
Technical Specifications:
Optics | |
|---|---|
| Head | Seidentopf, inclined 30°, rotates 360° |
| Interpupillary Distance | 48-75 mm |
| Eyepieces | 10X/18 wide field |
| Objectives | Infinity Plan 4X NA 0.10, 10X NA 0.25, 40XR NA 0.65, 100XR NA 1.25 oil |
| Nosepiece | Reverse quadruple, ball bearing |
| Condenser | Abbe, NA 1.25, iris diaphragm |
Stage and Focus | |
| Stage | Mechanical, 140 x 130 mm |
| Range of Traverse | 78 x 50 mm |
| Coarse Focus Range | 30 mm |
| Fine Focus Graduation | 2 µm |
Power and Dimensions | |
| Illumination | Variable LED |
| Power Input | 100-240V, 50/60 Hz |
| Length | 10.7" (267.5 mm) |
| Width | 6.1" (152.5 mm) |
| Unit Weight | 16 lb (7.3 kg) |
Variants, SKUs and UPCs | |
| Binocular | I4M-BN4A-IPL3 / UPC 664816000878 |
| Trinocular, C-Mount and Eyetube | I4M-TN4A-IPL3 / UPC 664816000861 |
