LW Scientific MX5 Digital Centrifuge with Brushless DC Motor, 9 Program Memory and Swing-Out, Bucket or Angled Rotor
The LW Scientific MX5 is a digital benchtop centrifuge for medical, veterinary, research and industrial labs. It spins from 100 to 5,000 rpm on a brushless DC motor and accepts swing-out, bucket and angled rotors, so one unit can handle tubes from 1 ml up to 50 ml.
Choose the rotor configuration that fits your workflow: an 8-place 15 ml swing-out rotor, a 24-place 15 ml angled rotor, or a swing-out bucket rotor with test tube or 50 ml inserts. Per LW Scientific, the MX5 is used for blood, urine, fecal and semen samples.
Features:
- Speed adjustable from 100 to 5,000 rpm
- Maximum RCF of 4,220 x g with the 8-place swing-out rotor
- Up to 9 stored programs, each saving speed, time and rotor settings
- Acceleration and deceleration levels from 1 to 9
- Short Spin mode runs while the button is held
- Lid stays locked at rest and while spinning, with double latches for manual release if power fails
- Fault codes for imbalance, lid open, over speed and other conditions
- Maintenance-free brushless DC motor with permanently lubricated bearings
Technical Specifications:
Overview | |
|---|---|
| Speed Range | 100 to 5,000 rpm |
| Maximum RCF | 4,220 x g (8-place swing-out rotor) |
| Program Memory | Up to 9 programs |
| Acceleration / Deceleration | Levels 1 to 9 |
| Motor | Brushless DC, maintenance-free |
| Power | 110V, 3-prong AC power cord |
| Fuses | Two 5 A, 250 V, pre-installed |
Rotor Capacity | |

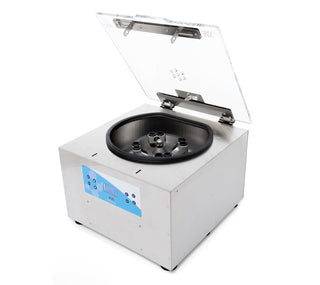

| 8-Place Swing-Out Rotor | 8 tubes, 1 to 15 ml, 4,220 x g |

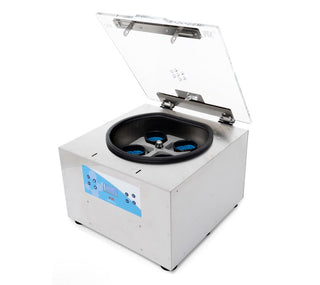

| Swing-Out Bucket Rotor, Test Tube Inserts | 24 tubes, 3 to 10 ml, or 8 conical 15 ml tubes |
| Swing-Out Bucket Rotor, 50 ml Inserts | 50 ml tubes |

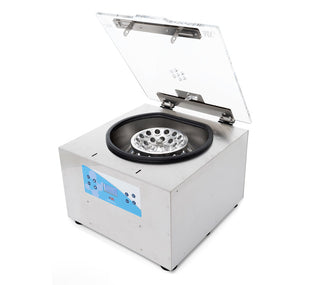

| 24-Place Angled Rotor | 24 tubes, 3 to 15 ml |
Dimensions | |
| Height | 11.5" (292 mm) |
| Length | 16.5" (419 mm) |
| Width | 15.75" (400 mm) |
| Unit Weight, Without Rotor | 43.0 lb (19.5 kg) |
In the Box | |
| Included | MX5 centrifuge, selected rotor, power cord, manual lid release tool, rotor wrench, motor shaft nut |
Variants, SKUs and UPCs | |
| 8-Place 15 ml Swing-Out Rotor | M5C-08SU-15T1 / UPC 664816003626 |
| 24-Place 15 ml Angled Rotor | M5C-24AU-15T1 / UPC 664816003688 |
| Swing-Out Bucket Rotor, 24-Place 3-10 ml and 4-Place 50 ml Inserts | M5C-BKSU-15T1 / UPC 664816003695 |
| Swing-Out Bucket Rotor, 8-Place 50 ml Inserts | M5C-BKS8-50T1 / UPC 664816003718 |
