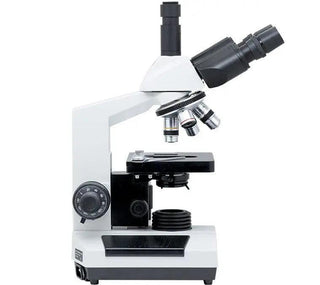

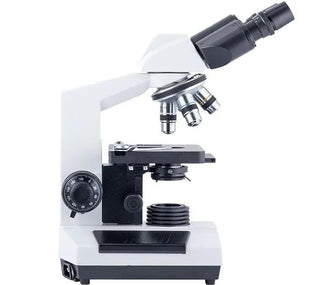

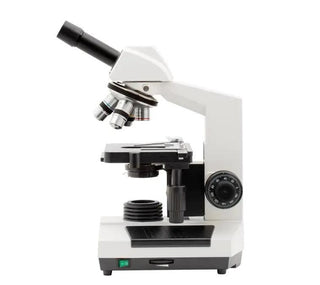

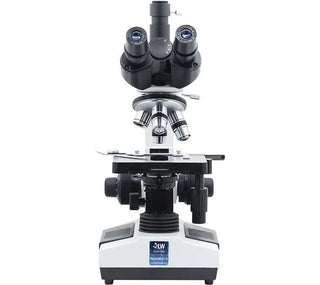

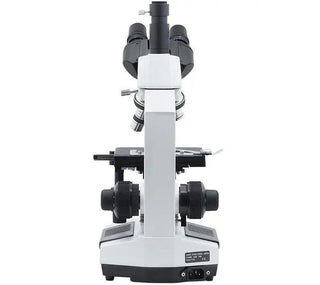

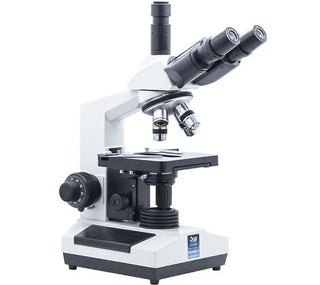

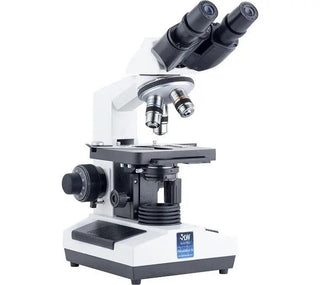

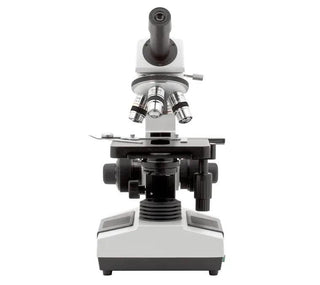

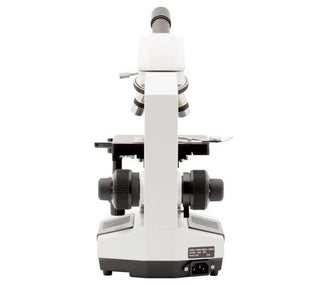

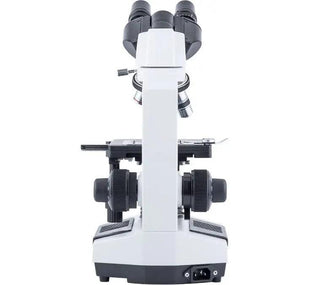

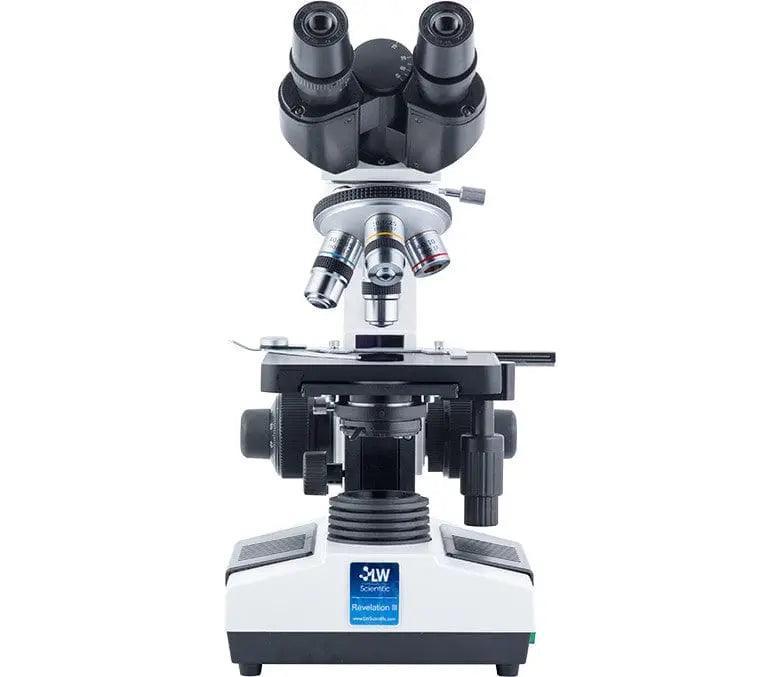

LW Scientific Revelation III Compound Microscope, Four Objectives, LED Illumination, Monocular, Binocular, Trinocular and Portable Options
The LW Scientific Revelation III is a compound microscope for medical clinics, veterinary labs, research facilities and schools. The DIN models come with Achromatic or Plan objectives in monocular, binocular or trinocular heads, and the portable models run their LED illumination from a rechargeable battery for work away from an outlet.
A forward-facing quadruple nosepiece, mechanical stage with coaxial controls and Abbe condenser with iris diaphragm cover routine brightfield work. Per LW Scientific, the LED lasts 30,000 hours and all lenses carry a 30-year anti-fungal coating.
Features:
- Four objectives: 4X, 10X, 40X and 100XR oil
- DIN Achromatic or DIN Plan objectives, titanium finish
- Head inclined 30°, rotates 360°, with diopter adjustment
- Forward-facing quadruple ball-bearing nosepiece, parfocal and color-coded
- Mechanical stage with locking lever and coaxial drive controls
- Rack and pinion Abbe condenser, NA 1.25, with iris diaphragm
- Variable LED illumination

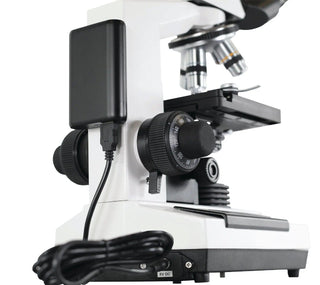

- Portable, rechargeable binocular and trinocular models available
The specifications below are from LW Scientific's Revelation III DIN spec sheet. LW Scientific does not publish a separate spec sheet for the portable, rechargeable models.
Technical Specifications:
Optics | |
|---|---|
| Eyepieces | 10X/18 wide field |
| Objectives | 4X, 10X, 40X, 100XR oil, DIN Achromatic or DIN Plan |
| Nosepiece | Quadruple, forward-facing, ball bearing |
| Condenser | Abbe, NA 1.25, rack and pinion, iris diaphragm |
| Interpupillary Distance, Binocular | 48-75 mm |
| Interpupillary Distance, Trinocular | 55-75 mm |
Stage and Focus | |
| Stage | Mechanical, 140 x 130 mm |
| Range of Traverse | 78 x 50 mm |
| Coarse Focus Range | 30 mm |
| Fine Focus Graduation | 2 µm |
Power and Dimensions, DIN Models | |
| Illumination | LED, 30,000 hour life |
| Power Input | 100-240V AC, 50/60 Hz, auto-switching |
| Height | 15" (380 mm) |
| Length | 9" (230 mm) |
| Width | 7" (178 mm) |
| Unit Weight | 14 lb (6.4 kg) |
Variants, SKUs and UPCs | |
| DIN Achromatic, Monocular | R3M-MN4A-DAL3 |
| DIN Achromatic, Binocular | R3M-BN4A-DAL3 / UPC 664816000946 |
| DIN Achromatic, Trinocular | R3M-TN4A-DAL3 / UPC 664816000939 |
| DIN Plan, Binocular | R3M-BN4A-DPL3 / UPC 664816000915 |
| DIN Plan, Trinocular | R3M-TN4A-DPL3 / UPC 664816000908 |
| Portable, Rechargeable, Binocular | R3M-BN4A-DALP |
| Portable, Rechargeable, Trinocular | R3M-TN4A-DALP |
