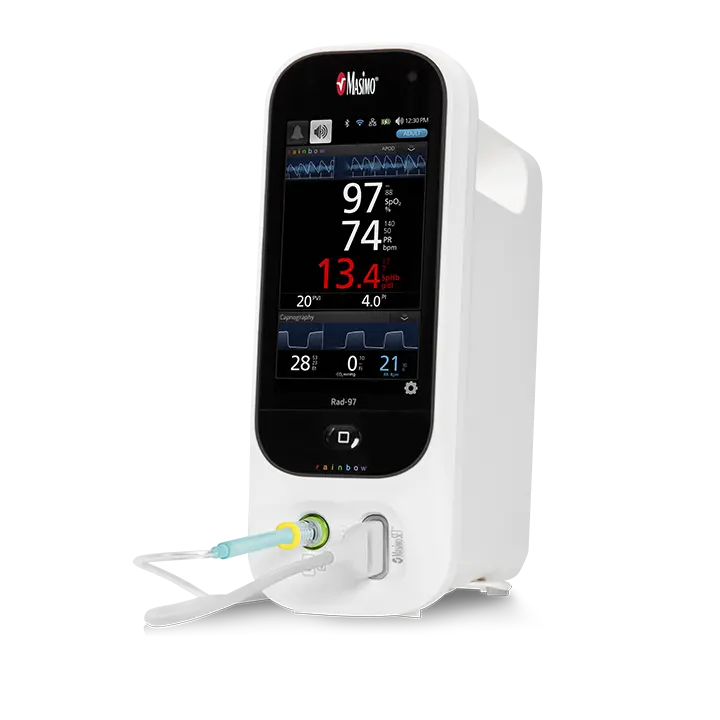

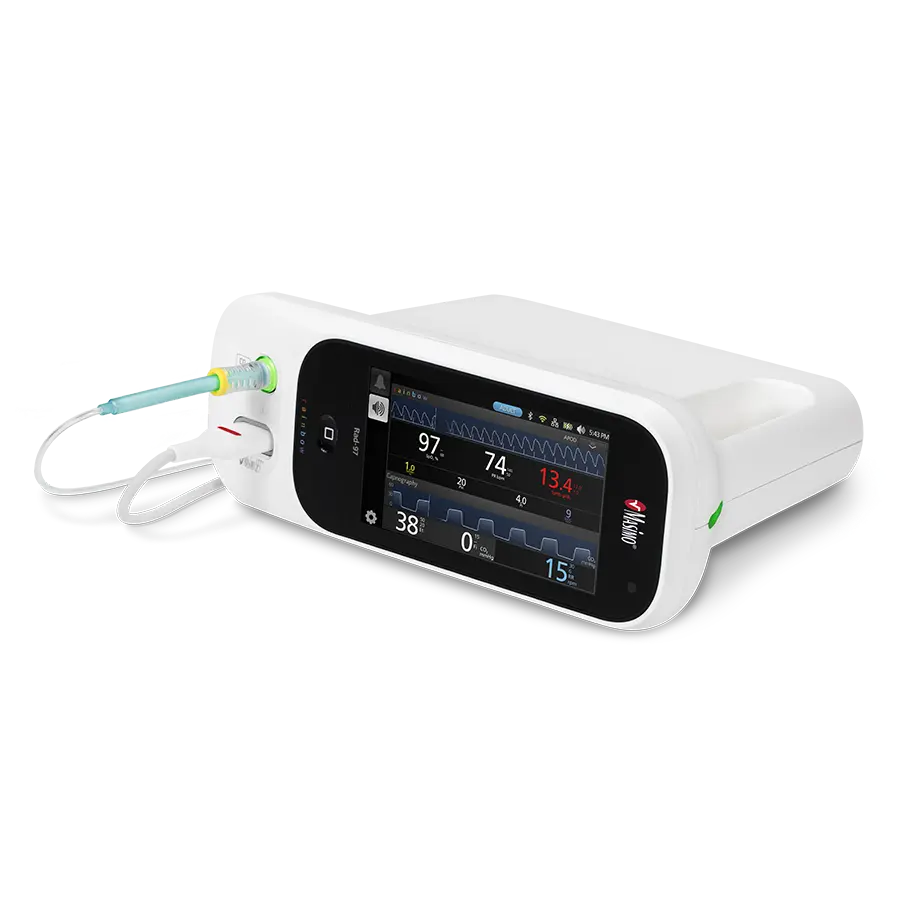

Masimo 9868 Rad-97 Pulse CO-Oximeter with NomoLine Capnography, EtCO2, SpO2 Monitoring with Sidestream Technology
The Masimo 9868 Rad-97 Pulse CO-Oximeter with Integrated NomoLine Capnography stands as a sophisticated, all-in-one bedside monitoring solution designed to provide continuous, high-fidelity physiological data in diverse clinical environments.
ed ISA™ sidestream capnography, this device offers a comprehensive view of a patient’s oxygenation and ventilation status on a single, intuitive interface. Its compact and robust design makes it an ideal choice for high-acuity settings, transport, and long-term care facilities where space and precision are of paramount importance.
The integration of NomoLine technology eliminates the common frustrations of moisture management and frequent consumable replacements, significantly streamlining clinical workflows and reducing long-term operational costs. Equipped with a high-definition multi-touch display, the Rad-97 ensures that critical trends in EtCO2 and SpO2 are visualized with exceptional clarity, allowing for rapid and informed diagnostic interventions.
Furthermore, its advanced connectivity suite, featuring built-in Wi-Fi and Bluetooth, facilitates seamless electronic medical record (EMR) integration to enhance patient safety and data accuracy. This monitor is the ultimate investment for healthcare providers seeking a versatile, maintenance-free platform that refuses to compromise on accuracy or user experience.
Features
-
Integrated Sidestream Capnography: Features ISA™ technology for highly accurate EtCO2 and respiration rate monitoring, suitable for both intubated and non-intubated patients.
-
NomoLine No-Moisture Technology: Utilizes a unique moisture-wicking sampling line that eliminates the need for water traps, drastically reducing maintenance and downtime.
-
Gold-Standard rainbow SET® Oximetry: Leverages Masimo’s premier signal extraction technology to ensure precise SpO2 readings even during patient movement or low perfusion.
-
Advanced Connectivity Hub: Built-in Wi-Fi, Bluetooth, and Ethernet support allow for seamless data transfer to hospital EMR systems and remote patient monitoring platforms.
-
Intuitive 7-inch Touchscreen: A bright, high-resolution LCD provides a customizable interface with easy-to-read waveforms and instant access to historical trends.
-
Expansion Ready Platform: The system is field-upgradeable to monitor additional parameters such as Total Hemoglobin (SpHb) and Carboxyhemoglobin (SpCO) as clinical needs evolve.
-
Rapid Startup and Calibration-Free: Designed for immediate clinical use with a fast warm-up time and no routine calibration required, ensuring maximum uptime.
Product Specifications
| Nomoline Capnography Measurements | |
| Range | |
| FiCO2 | 0–25 vol% / 0–32.5 kPa / 0-244 mmHg |
| EtCO2 | 0–25 vol% / 0–32.5 kPa / 0-244 mmHg |
| RR | 0 to 150 bpm |
| Accuracy | |
| EtCO2/FiCO2, Standard Conditions | |
| 0–15 vol% | + (0.2 vol% + 2% of reading) |
| 15–25 vol% | Unspecified |
| EtCO2/FiCO2, All Conditions | + (0.3 kPa + 4% of reading) |
| RR | + 1 bpm |
| Nomoline Sampling Lines | |
| Water Handling | Sampling lines with proprietary |
| Water Removal Tubing | |
| Sampling Flow Rate | 50 + 10 ml/min |
| Physical Characteristics | |
| Weight | 2.18 lbs (0.99 kg) |
| Dimensions | 9” x 4" x 6.5" (22.9 cm x 10.2 cm x 16.5 cm) |
| Environmental | |
| Operating Temperature | 32–95° F (0–35° C) |
| Atmospheric Pressure | 540–1,060 mBar |
| Compliance | |
| Safety Standard(s) | ANSI/AAMI ES 60601-1, CAN/CSA C22.2 No. 60601-1, IEC/EN 60601-1, 3rd Ed., ISO 80601-2-55 (Capnography) |
| Pulse Oximeter Standard(s) | ISO 80601-2-61 |
| Alarm Standard(s) | IEC 60601-1-8 |
| EMC Standard(s) | EN 60601-1-2, Class B |
| Type of Protection | Class I (AC power) / Class II (Internally Powered) |
| Degree of Protection | Type BF, Defib Proof-Applied Part |
| Mode of Operation (per IEC 60601-1) | Continuous Operation |
| Enclosure Degree of Protection | IP21 |
Warranty
- Masimo warrants that; (i) it will perform the services using qualified personnel in accordance with industry standards and (ii) any repair or replacement provided under the services will be free from material defects in materials and workmanship.
- The duration of this warranty shall be 90 days from the date of performance, repair, or replacement.
- Masimo’s obligation if OOW Device is found by Masimo to be defective during the warranty period shall be limited to repair or replacement.
- This warranty does not apply or extend to any OOW Device (a) damaged, neglected, misused or improperly operated, (b) modified, disassembled, or reassembled, (c) used with supplies, devices or electrical work external to the OOW Device, (d) where the software has been damaged, modified by anyone other than Masimo or without the express written authorization of Masimo, or (e) used contrary to Masimo’s instructions.
- MASIMO MAKES NO OTHER WARRANTIES AND DISCLAIMS ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED.
