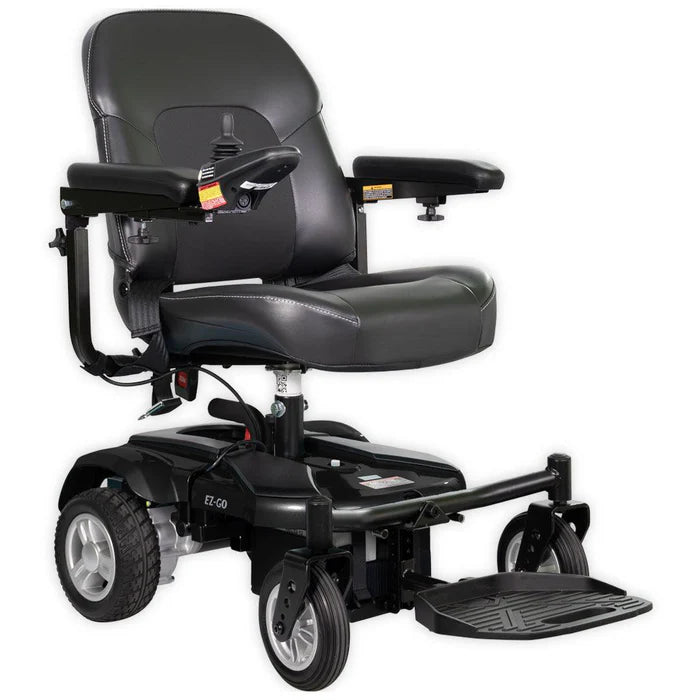

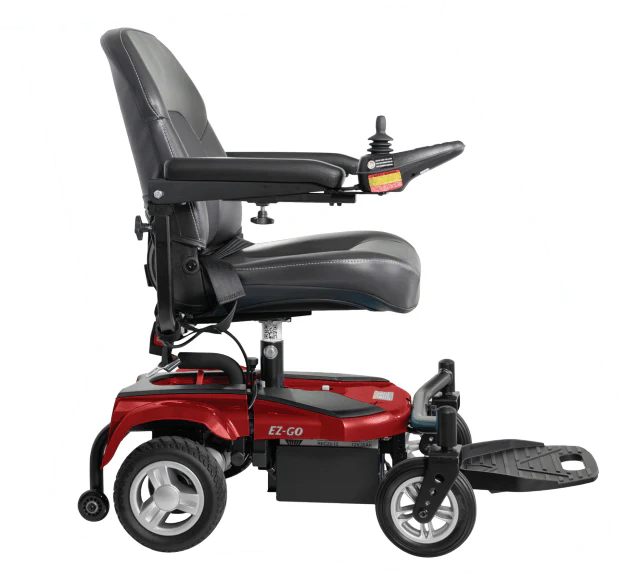

Merits EZ-GO P321B-ARMUB PORTABLE, RWD, 18"x17"x18", FISH-ON SEAT
SKU: P321B-SDMUB
Free Shipping
Regular price $1,914.00
Unit price
per
Product
# P321
Weight Capacity
300 lbs.
Drivetrain
RWD
Seat Type
Stadium
MeritsSKU P321B-SDMUB

Merits EZ-GO P321B-ARMUB PORTABLE, RWD, 18"x17"x18", FISH-ON SEAT

Product
# P321
Weight Capacity
300 lbs.
Drivetrain
RWD
Seat Type
Stadium
Regular price $1,914.00
Unit price
per
Free shipping
Availability

?
Inventory levels are dynamic and subject to change due to high demand.
(0 in cart)
SSL SecureSecure Checkout Secure Checkout
  • Fast & reliable shippingShipping cost is calculated and confirmed at checkout.
  • Regulatory compliantRegistered & certified medical equipment
  • Best price guaranteeFind it cheaper? We'll match it.
  • Need help choosing?Call +1-973-858-5049 or contact us
Request a quote

Product
# P321
Weight Capacity
300 lbs.
Drivetrain
RWD
Seat Type
Stadium

Overview

From the manufacturer



• Ergonomic mid-back seat for additional back support
• Quick connect feature for easy assembly and transportation
• Turning radius of 23” for easy maneuverability in tight spaces
• Weight capacity, 300 lbs.
• Compact and lightweight design, weighs a total of 113 lbs.

Product

Specifications

Manufacturer data. Imperial with metric in brackets.

Product
# P321
Weight Capacity
300 lbs.
Drivetrain
RWD
Seat Type
Stadium
Seat Width
18"
Seat Depth
16”
Backrest Height
17"
Seat-to-Floor Height
18"-20"
Overall Length
27”
Overall Width
23”
Overall Height
43”
Turning Radius
23”
Ground Clearance
1.8”
Total Weight
113 lbs.
Wt of Heaviest Pc.
54 lbs.
Max Speed
4.5 mph
Range Per Charge
up to 12 mi.
Motor
DC 24V / 90W
Controller
 P&G NVR2
Battery Size
(2 required) 12Ah, ES12 AGM
Charger
 1.5A off-board
Gradient
6°
Front Wheels
7” - solid
Drive Wheels
8” - foam-
Rear Wheels
3” anti-tippers
HCPCS Codes
K0814
Color Options
Red / Black

Documents

Files from the manufacturer

Spec sheetMerits_P321B_Spec_Sheet.pdf
Download PDF
Spec sheetMerits_P321B_Owners_Manual.pdf
Download PDF

Shipping & returns

Ships by freight or parcel depending on size. The shipping cost is calculated and confirmed at checkout.
