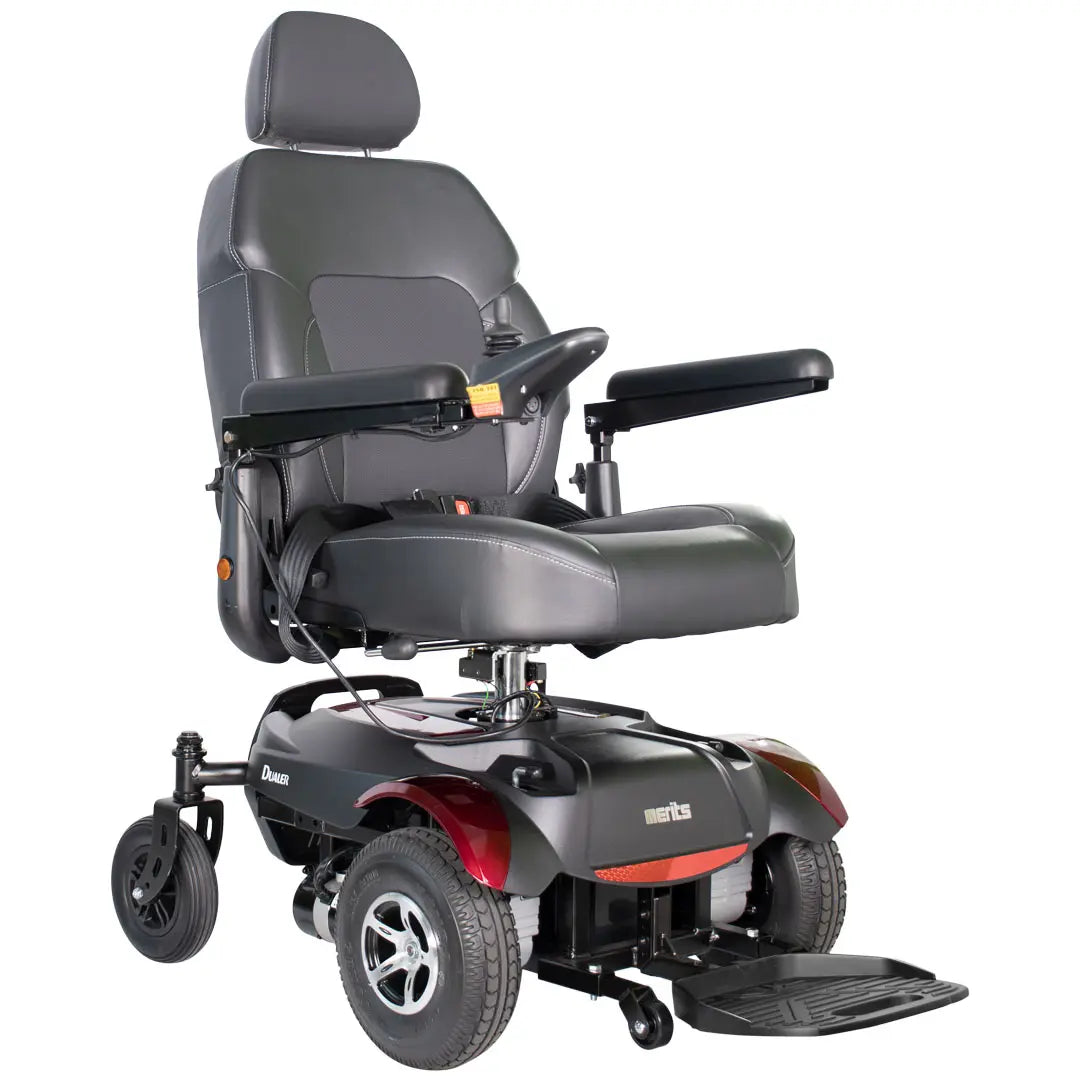

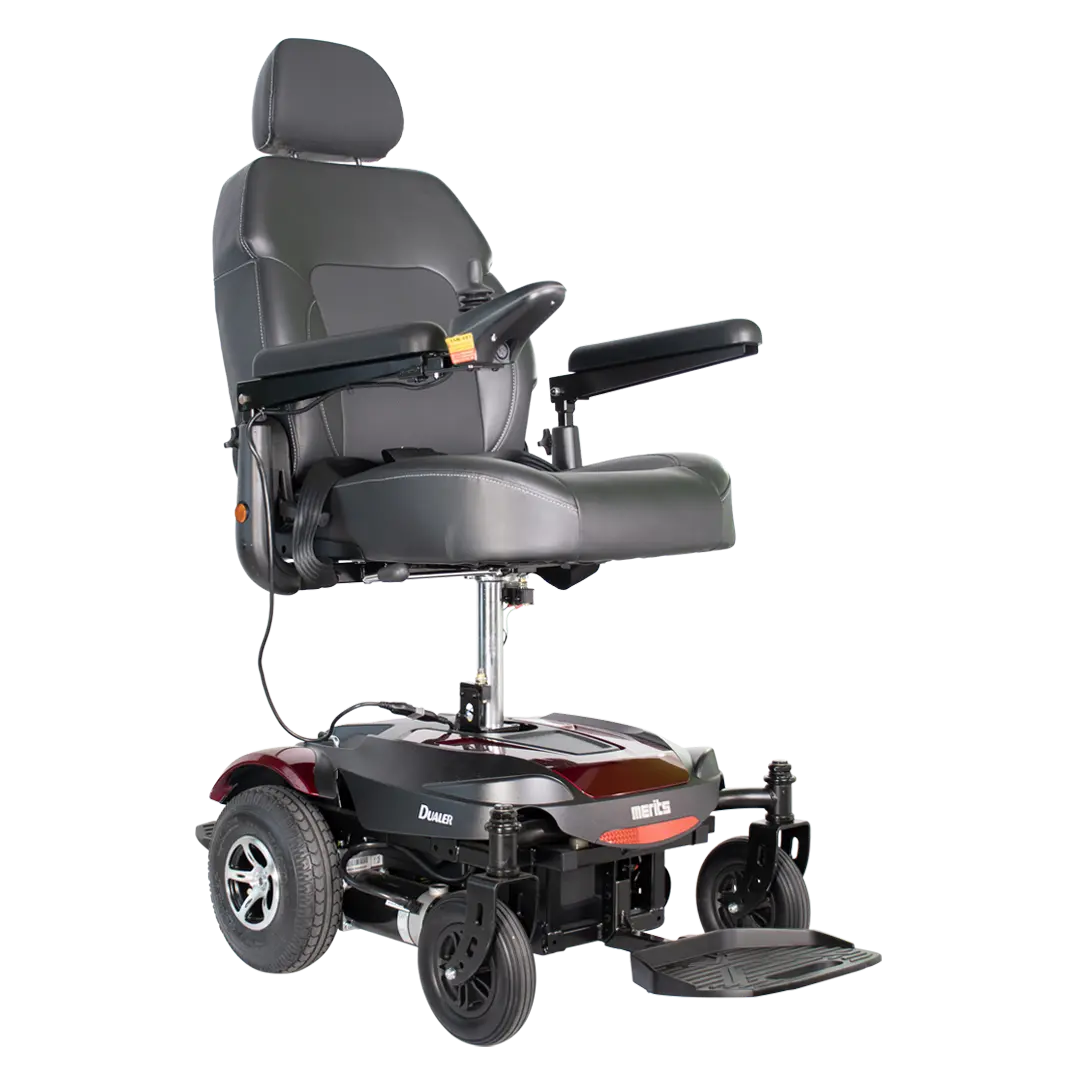

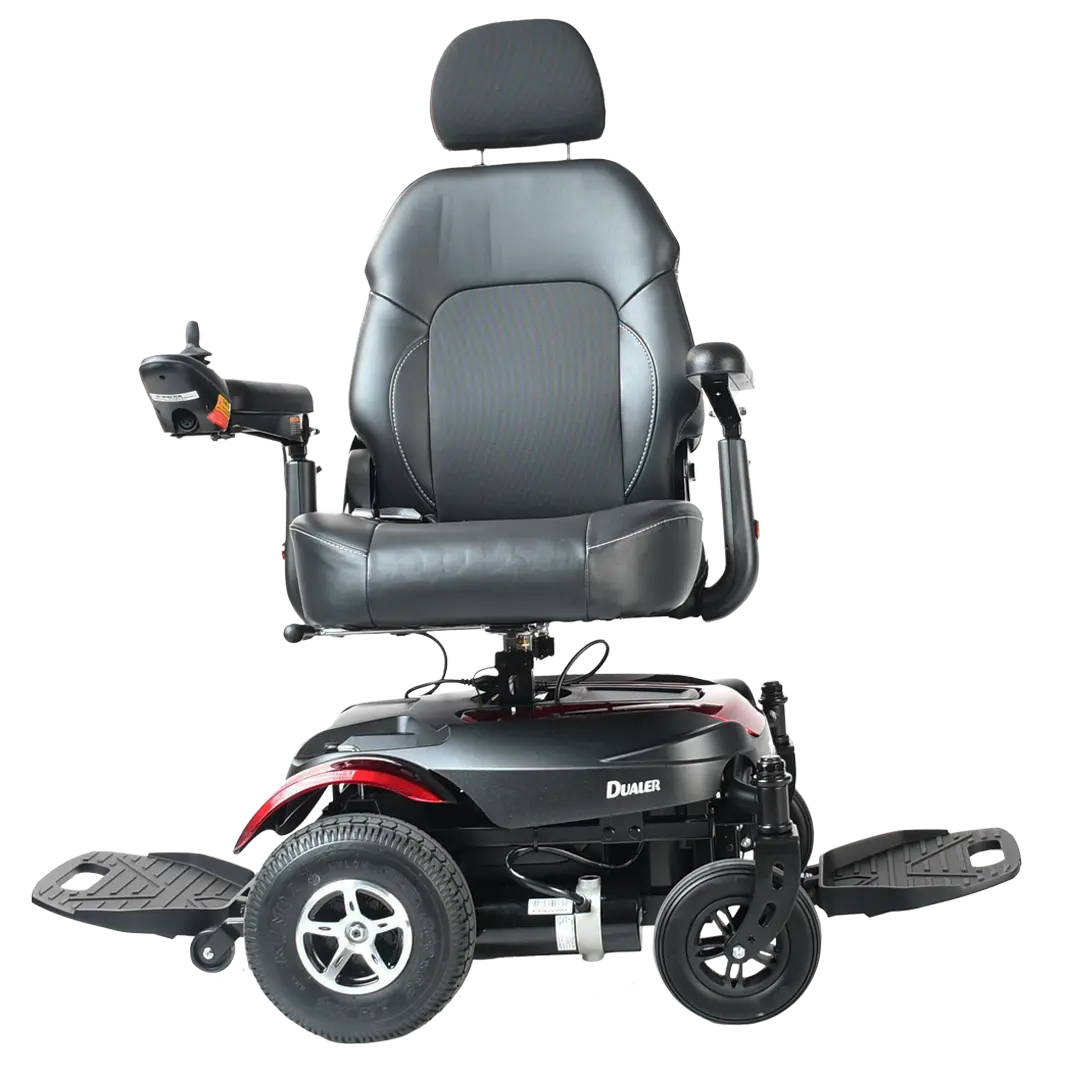

Merits P312A-ARMAB DUALER W/ LIFT POWER SEAT LIFT, RWD/FWD, 16",18", CAPTAIN or PAN SEAT, RED
Merits P312A-ARMAB DUALER W/ LIFT POWER SEAT LIFT, RWD/FWD, 16",18", CAPTAIN or PAN SEAT, RED
Merits P312A-ARMAB DUALER W/ LIFT POWER SEAT LIFT, RWD/FWD, 16",18", CAPTAIN or PAN SEAT, RED 300 LBS CAP, 10" NON-MARKING DRIVE TIRES, VR2, INCLUDES U1 BATTS
Features :
• The Dualer can change from RWD to FWD with swivel of the seat
• Ergonomic semi-reclining seat that reclines up to 135°
• 10” knobby drive tires for superior traction
• Dual footplates for comfort and convenience
• 5” power elevating seat.
Product Specifications:
|
Product |
P312 |
|
Weight Capacity |
300 lbs. |
|
Drivetrain |
RWD / FWD |
|
Seat Type |
Captain or Pan |
|
Seat Width |
16” or 18” |
|
Seat Depth |
18” |
|
Backrest Height |
18” - 20” |
|
Seat-to-Floor Height |
21.5” - 26” |
|
Seat Elevation |
5” |
|
Overall Length |
38” |
|
Overall Width |
24” |
|
Overall Height |
41” |
|
Turning Radius |
21” |
|
Ground Clearance |
2” |
|
Total Weight |
189 lbs. |
|
Wt of Heaviest Pc. |
97 lbs. |
|
Max Speed |
5 mph |
|
Range Per Charge |
up to 18 mi. |
|
Motor |
DC24V / 180W |
|
Controller |
P&G VR2 60A |
|
Battery Size |
(x2) 33Ah, U1 AGM |
|
Charger |
5A off-board |
|
Gradient |
12° |
|
Front Wheels |
8” - solid |
|
Drive Wheels |
10” - foam-fi lled |
|
Rear Wheels |
3” anti-tippers |
|
HCPCS Codes |
K0830 / K0831 |
|
Color Options |
Candy Apple Red |
Accessories:
• Oxygen tank holder
• Cane & crutch holder
• Walker holder
• Foldable rear basket
• Cup holder
• Side bag
• Cover
Options:
• Captain or Pan powered seat option
• Swing-away joystick
• 16” and 18” seat width option
• Elevating legrest available (K1095)
