Merits P326D2ARMUB VISION SPORT W/ LIFT W/ 7.5" POWER SEAT LIFT, 16",18", CAPTAIN or PAN SEAT,RED MWD, 300 LBS CAP, 10" FOAM-FILLED DRIVE TIRES, VR2, INCLUDES U1 BATTS
Features :
• • True mid-wheel: 20”turning radius
• Toggle lift operation or upgrade through the joystick (E2310)
• VR2 joystick is programmed via PP1 programmer
• Premium, semi-reclining ergonomic seat up to 135°
• 10” solid tires for superior traction
• 16” - 20” customizable seat depth

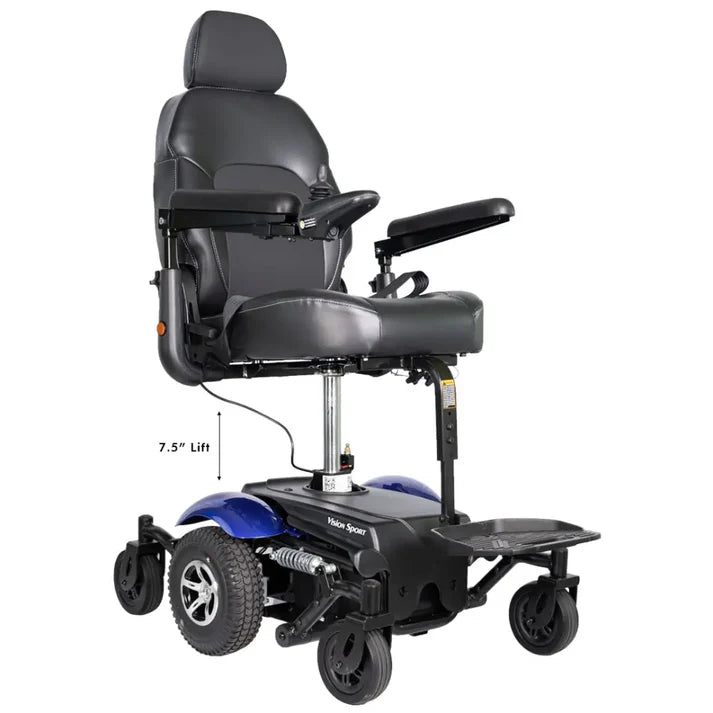

• 7.5” power elevating seat
Product Specifications:
|
Product |
P326D |
|
Weight Capacity |
300 lbs. |
|
Drivetrain |
MWD |
|
Seat Type |
Captain or Pan |
|
Seat Width |
18” or 20” |
|
Seat Depth |
16” - 20” |
|
Backrest Height |
20” |
|
Seat-to-Floor Height |
20.5” - 29.5” |
|
Seat Elevation |
7.5” |
|
Overall Length |
34” |
|
Overall Width |
24” |
|
Overall Height |
48.5” |
|
Turning Radius |
20” |
|
Ground Clearance |
2” |
|
Total Weight |
214 lbs. |
|
Wt of Heaviest Pc. |
120 lbs. |
|
Max Speed |
5 mph |
|
Range Per Charge |
up to 18 mi. |
|
Motor |
DC24V / 160W |
|
Controller |
P&G VR2 60A |
|
Battery Size |
(2 required) 35Ah, 12V, U1 |
|
Charger |
4A off-board |
|
Gradient |
6° |
|
Front Wheels |
6” - solid |
|
Drive Wheels |
10” - solid |
|
Rear Wheels |
6” - solid |
|
HCPCS Codes |
K0830 / K0831 |
|
Color Options |
Red |
Accessories:
• Unoccupied transit tie down kit
• Cup holder
• USB charger
• Oxygen tank holder
• Walker holder
• Foldable rear basket
• Safety flag
• Side bag
Options:
• Optional, 16” - 20” seat width
• Swing-away joystick
• Elevating leg rests (K0195)
• Captain or Pan powered seat option
