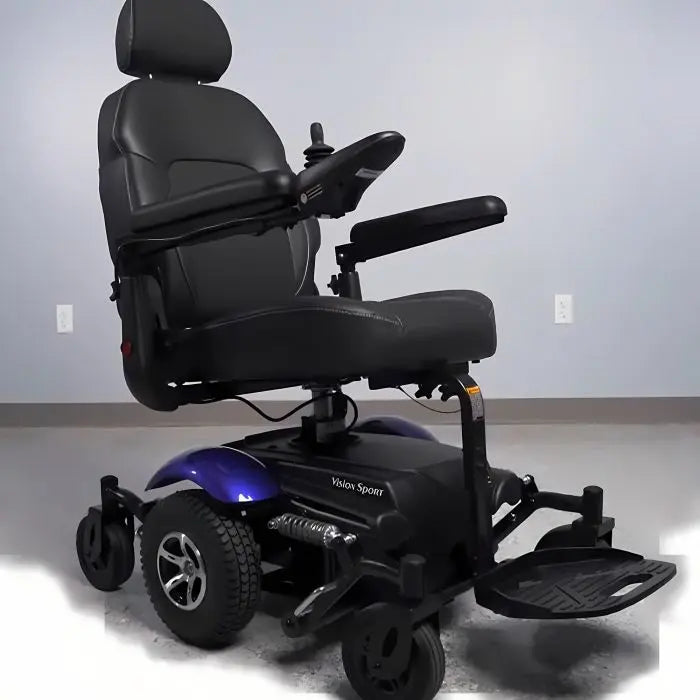

Merits P326E0M-SBMUB Vision Sport FWD, 16",18",20", CAPTAIN or PAN SEAT
Merits Vision Sport P326E0M-SBMUB FWD, 16",18",20", CAPTAIN or PAN SEAT RED/BLUE, 300 LBS CAP, 10" FOAM-FILLED DRIVE TIRES, LiNX, INCLUDES U1 BATTS
Features
• True mid-wheel: 20” turning Radius

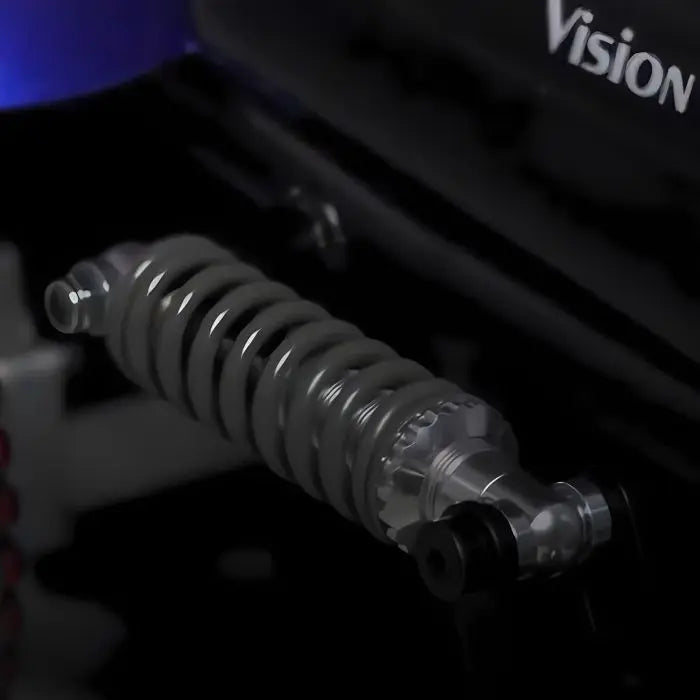

• Robust independent suspension can absorb up to 250 lbs. on
the footplate without tipping.
• Premium, semi-reclining ergonomic seat, up to 135°
• 10” Solid drive tires for superior traction
• Dynamic LiNX 40A controller for convenient Bluetooth
programming and diagnostics
• 16” - 20” customizeable seat depth
Product Specifications:
| Product | # P326 |
| Weight Capacity | 300 lbs. |
| Drivetrain | MWD |
| Seat Type | Captain or Pan |
| Seat Width | 16” - 20” |
| Seat Depth | 16” - 20” |
| Backrest Height | 18"-20" |
| Seat-to-Floor Height | 17” - 21” |
| Overall Length | 34” |
| Overall Width | 24” |
| Overall Height | 48.5” |
| Turning Radius | 20” |
| Ground Clearance | 2” |
| Total Weight | 184 lbs. |
| Wt of Heaviest Pc. | 90 lbs. |
| Max Speed | 5 mph |
| Range Per Charge | up to 18 mi. |
| Motor | DC 24V / 160W |
| Controller | Dynamic LiNX 40A |
| Battery Size | (2 required) 33Ah, U1 AGM |
| Charger | 4A off-board |
| Gradient | 6° |
| Front Wheels | 6” - solid |
| Drive Wheels | 10” - solid |
| Rear Wheels | 6” - solid |
| HCPCS Codes | K0822 / K0823 |
| Color Options | Blue / Red |
Options:
• Unoccupied transit tie down kit
• Cup holder
• USB charger
• Oxygen tank holder
• Walker holder
•16” - 20” seat width option
• Swing-away joystick
• Elevating leg rests (K0195)
• Foldable rear basket
• Cane & crutch holder
