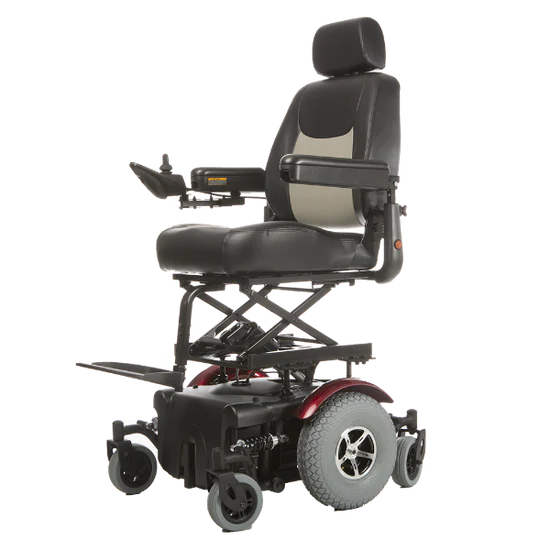

Merits P32740ARMUB VISION SUPER W/ LIFT POWER SEAT LIFT, HEAVY-DUTY, MWD, 20",22", CAPTAIN or PAN SEAT, RED
Merits P32740ARMUB VISION SUPER W/ LIFT POWER SEAT LIFT, HEAVY-DUTY, MWD, 20",22", CAPTAIN or PAN SEAT, RED
Merits P32740ARMUB VISION SUPER W/ LIFT POWER SEAT LIFT, HEAVY-DUTY, MWD, 20",22", CAPTAIN or PAN SEAT, RED 400 LBS CAP, 12" FOAM-FILLED DRIVE TIRES, VR2, INCLUDES 22NF BATTS
Features :
True mid-wheel: 21” turning radius
• Elevating 10” power scissor seat
• Dynamic LiNX & Shark controller for convenient
Bluetooth programming and diagnostics
• Premium, semi-reclining ergonomic seat up to 135°
• 18” - 22” customizeable seat depth
Product Specifications:
|
Product |
P3274 w/lift |
|
Weight Capacity |
400lbs. w/lift |
|
Drivetrain |
MWD |
|
Seat Type |
Captain or Pan |
|
Seat Width |
20” - 22” |
|
Seat Depth |
18” - 22” |
|
Backrest Height |
20” - 22” |
|
Seat-to-Floor Height |
24” - 34” w lift |
|
Seat Elevation |
10” - P3274 w/lift |
|
Overall Length |
35.4” |
|
Overall Width |
27.2” |
|
Overall Height |
48” |
|
Turning Radius |
21” |
|
Ground Clearance |
2.2” |
|
Total Weight |
243 lbs. |
|
Wt of Heaviest Pc. |
121 lbs. |
|
Max Speed |
5 mph |
|
Range Per Charge |
up to 20 mi. |
|
Motor |
DC 24V / 300W x 2pcs |
|
Controller |
LiNX, PG VR2 |
|
Battery Size |
(2 required) 50Ah, 22NF AGM |
|
Charger |
5A off-board |
|
Gradient |
8° |
|
Front Wheels |
6” - solid |
|
Drive Wheels |
12” - fl at-free |
|
Rear Wheels |
6” - solid |
|
HCPCS Codes |
K0824 / K0825 |
|
Color Options |
Red / Blue |
Accessories :
• Unoccupied transit tie down kit
• Cup holder
• USB charger
• Oxygen tank holder
• Walker holder
• Foldable rear basket
• Safety flag
• Side under, arm bag
Options:
• Optional, 20” - 22” seat width
• Captain or Pan powered seat option
