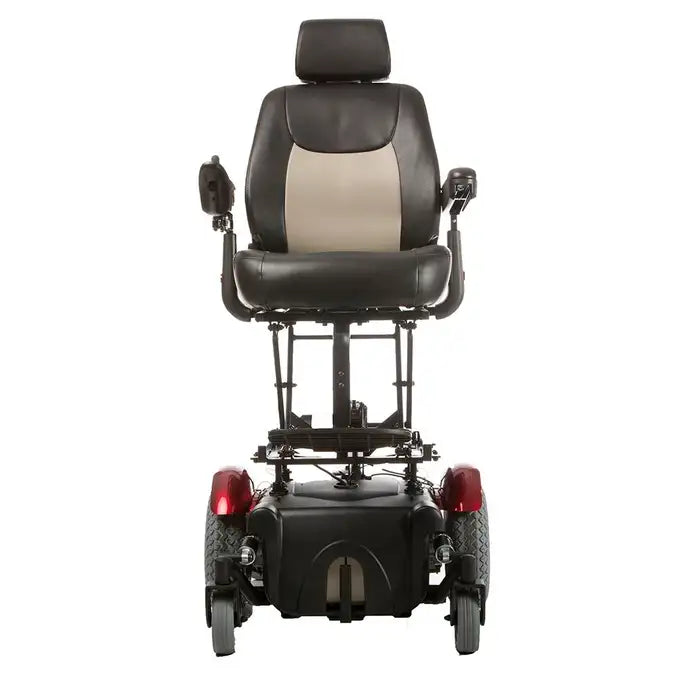

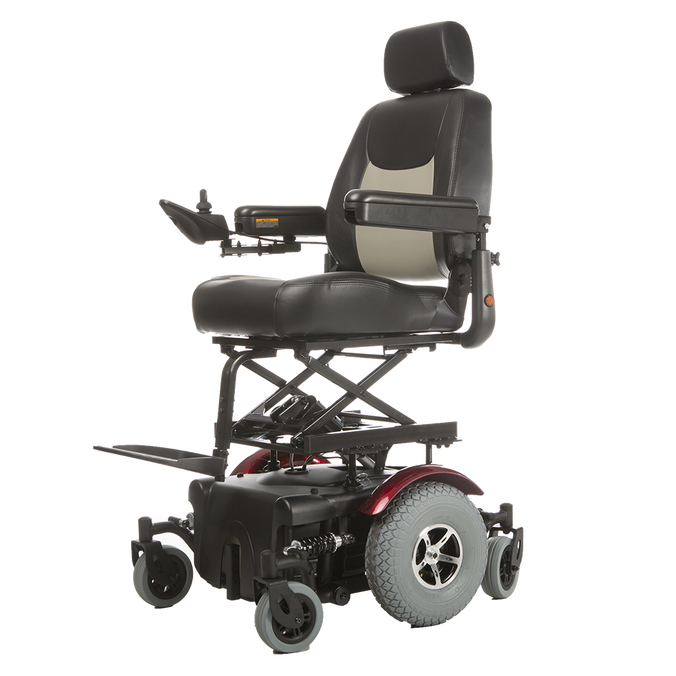

Merits P3276-ARMUB + R601-0ED20 Vision Super W HEAVY-DUTY, MWD, 20",22", REHAB SEAT
SKU: P3276-ARMUB + R601-0ED20
Free Shipping
Regular price $5,323.00
Unit price
per
Product
P3274 w/lift
Weight Capacity
400lbs. w/lift
Drivetrain
MWD
Seat Type
Captain or Pan
MeritsSKU P3276-ARMUB + R601-0ED20

Merits P3276-ARMUB + R601-0ED20 Vision Super W HEAVY-DUTY, MWD, 20",22", REHAB SEAT

Product
P3274 w/lift
Weight Capacity
400lbs. w/lift
Drivetrain
MWD
Seat Type
Captain or Pan
Regular price $5,323.00
Unit price
per
Free shipping
Availability

?
Inventory levels are dynamic and subject to change due to high demand.
(0 in cart)
SSL SecureSecure Checkout Secure Checkout
  • Fast & reliable shippingShipping cost is calculated and confirmed at checkout.
  • Regulatory compliantRegistered & certified medical equipment
  • Best price guaranteeFind it cheaper? We'll match it.
  • Need help choosing?Call +1-973-858-5049 or contact us
Request a quote

Product
P3274 w/lift
Weight Capacity
400lbs. w/lift
Drivetrain
MWD
Seat Type
Captain or Pan

Overview

From the manufacturer

• True mid-wheel: 21” turning radius
• Elevating 10” power scissor seat
• Dynamic LiNX & Shark controller for convenient
Bluetooth programming and diagnostics
• Premium, semi-reclining ergonomic seat up to 135°
• 18” - 22” customizeable seat depth

Product

Specifications

Manufacturer data. Imperial with metric in brackets.

Product
P3274 w/lift
Weight Capacity
400lbs. w/lift
Drivetrain
MWD
Seat Type
Captain or Pan
Seat Width
20” - 22”
Seat Depth
18” - 22”
Backrest Height
20” - 22”
Seat-to-Floor Height
24” - 34” w lift
Seat Elevation
10” - P3274 w/lift
Overall Length
35.4”
Overall Width
27.2”
Overall Height
48”
Turning Radius
21”
Ground Clearance
2.2”
Total Weight
243 lbs.
Wt of Heaviest Pc.
121 lbs.
Max Speed
5 mph
Range Per Charge
up to 20 mi.
Motor
DC 24V / 300W x 2pcs
Controller
LiNX, PG VR2
Battery Size
(2 required) 50Ah, 22NF AGM
Charger
5A off-board
Gradient
8°
Front Wheels
6” - solid
Drive Wheels
12” - fl at-free
Rear Wheels
6” - solid
HCPCS Codes
K0824 / K0825K0830 / K0831
Color Options
Red / Black+G2H2G1:H28

Documents

Files from the manufacturer

Spec sheetMerits_P3276-ARMUB_R601-0ED20_Spec_Sheet.pdf
Download PDF
