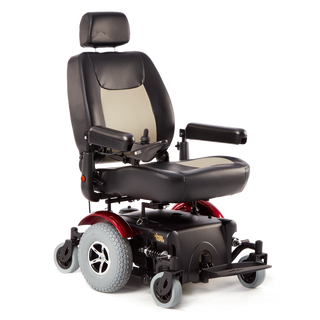

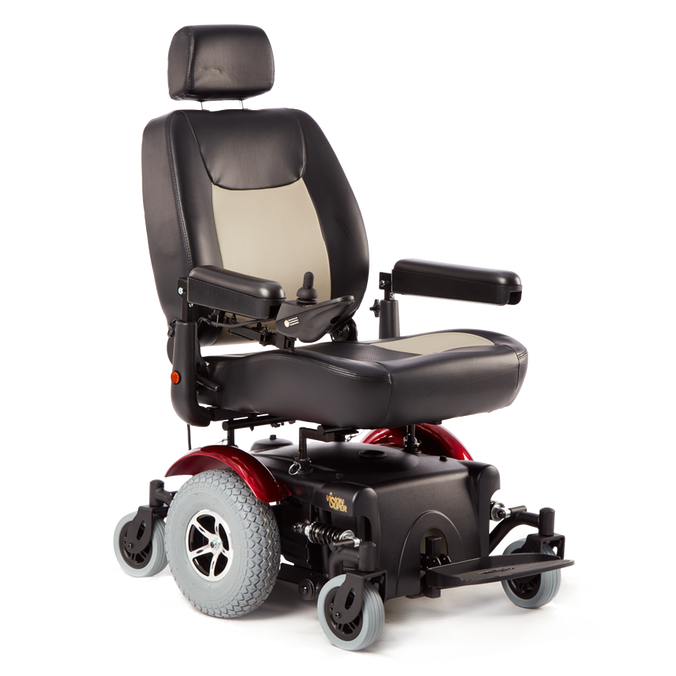

Merits P3278-ARMUB Vision Super HEAVY-DUTY, MWD, 20",22",24", CAPTAIN or PAN SEAT RED, 450 LBS CAP, 12" FOAM-FILLED DRIVE TIRES, LiNX, INCLUDES 22NF BATTS
Features:
• True mid-wheel: 21” turning radius

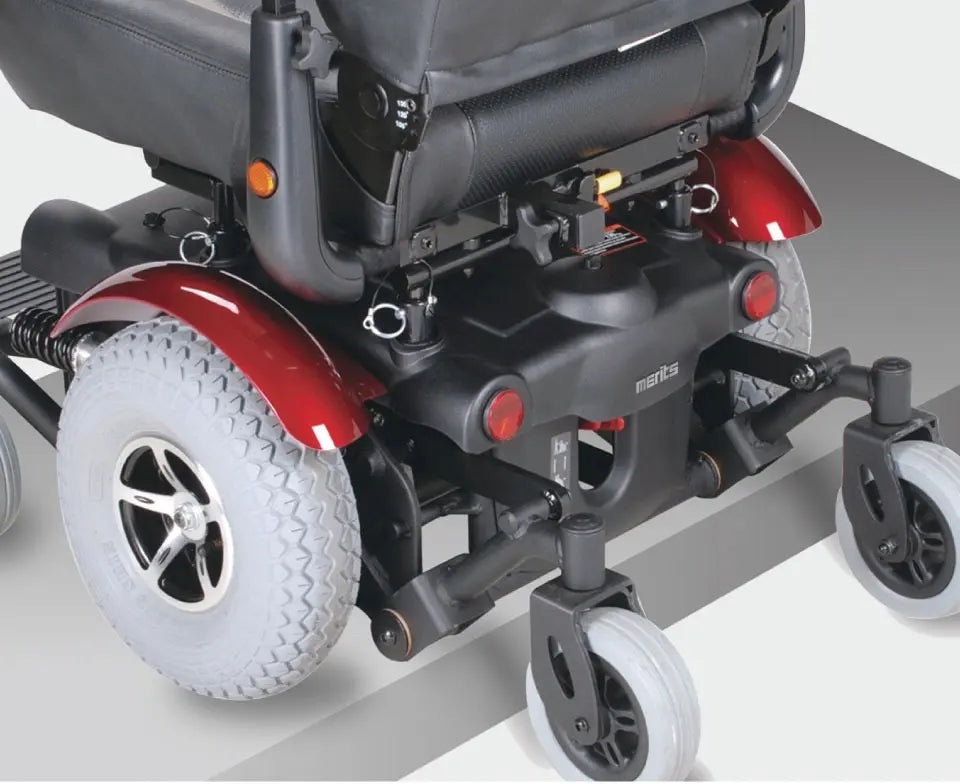

• Robust independent suspension can absorb up to 350 lbs. on
the footplate without tipping forward (does not apply to lift option)
• Dynamic LiNX & Shark controller for convenient
Bluetooth programming and diagnostics
• Premium, semi-reclining ergonomic seat up to 135°
• 18” - 22” customizeable seat depth
Product Specifications:
| Product | P327 |
| Weight Capacity | 450 lbs. |
| Drivetrain | MWD |
| Seat Type | Captain or Pan |
| Seat Width | 20” - 24” |
| Seat Depth | 18” - 22” |
| Backrest Height | 20” - 22” |
| Seat-to-Floor Height | 22” |
| Overall Length | 35.4” |
| Overall Width | 27.2” |
| Overall Height | 48” |
| Turning Radius | 21” |
| Ground Clearance | 2.2” |
| Total Weight | 243 lbs. |
| Wt of Heaviest Pc. | 121 lbs. |
| Max Speed | 5 mph |
| Range Per Charge | up to 20 mi. |
| Motor | DC 24V / 300W x |
| Controller | Dynamic Shark 50A/ PG |
| Battery Size | (2 required) 55Ah, 22NF AGM |
| Charger | 5A off-board |
| Gradient | 8° |
| Front Wheels | 6” - solid |
| Drive Wheels | 12” - fl at-free |
| Rear Wheels | 6” - solid |
| HCPCS Codes | K0824 / K0825 K0830 / K0831 |
| Color Options | Red / Black |
Accessories:
• Unoccupied transit tie down kit
• Cup holder
• USB charger
• Oxygen tank holder
• Walker holder
• Foldable rear basket
• Safety fl ag
• Side under, arm bag
Options:
• Optional, 20” - 24” seat width
• 10” scissor power seat lift
• Elevating leg rests (K0195)
• Captain or Pan powered seat option
