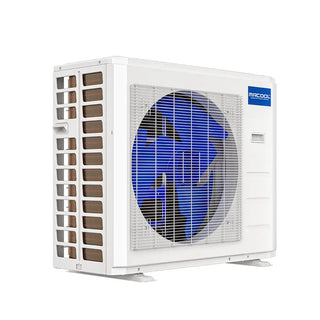

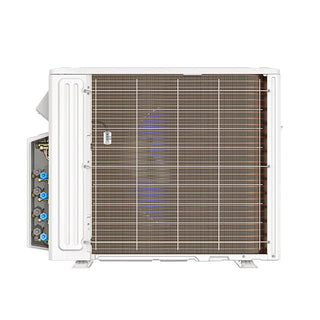

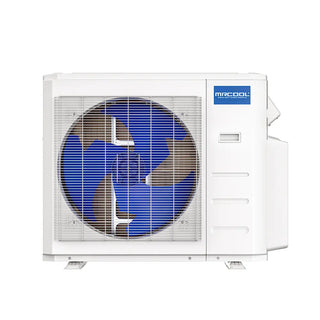

MrCool DIY-MULTI4-27HP230D-O 27k DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230V, Heat and Cool Multiple Rooms
5th Generation MRCOOL® DIY® 27k BTU Multi-Zone Ductless Mini Split Condenser. You can install this system yourself without needing the help of an HVAC expert! Thanks to the incredible efficiency of this system, you will save money in multiple ways with its SEER2 rating of 23 and HSPF2-4 rating of 9.5. This condenser can support up to 4 air handlers, meaning it can provide heating and cooling to four separate areas totaling 1,000 to 1,200 square feet. This system is unique because it uses special, patented Quick Connect® pipe sets pre-charged with the newer refrigerant R-454B, making it more sustainable and efficient than its previous generation. These pipe sets connect to the connection points of the condenser and air handler units, making the installation process extremely easy.
These pipe sets are sold separately.
The SmartHVAC app allows you to integrate the system with your phone and Amazon Alexa or Google Home, enabling you to control your comfort with just your voice. The app also lets you customize your comfort with various features, from setting schedulers to monitoring the system's energy usage. Includes a 5-year parts warranty, a 7-year compressor warranty, and a Limited Lifetime Replacement warranty if you enroll in the MRCOOL® Maintenance Program. Get the best for your home and build a DIY® system!
Features
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Product Specifications
| SEER2 | 23 |
| EER2 | 12 |
| HSPF2-4 | 9,5 |
| HSPF2-5 | 7 |
| TONNAGE | 2,25 |
| COOLING CAPACITY (BTU) | 26000 |
| HEATING CAPACITY (BTU) | 26000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 25 |
| MIN CIRCUIT AMPACITY (A) | 23 |
| COLOR | White |
| ZONE CAPACITY | 4 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 84.66 |
| DECIBEL RATING (DBA) | 61 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 221.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.14 |
| NET HEIGHT (IN) | 31.89 |
| NET WIDTH (IN) | 37.24 |
| NET WEIGHT (LBS) | 140.21 |
| GROSS DEPTH (IN) | 19.69 |
| GROSS HEIGHT (IN) | 34.84 |
| GROSS WIDTH (IN) | 42.91 |
| GROSS WEIGHT (LBS) | 151.02 |
