MrCool DIYM327HPW00C00,Mini Split - 27,000 BTU 3 Zone,(9K + 9K + 9K), Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit
This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat three different rooms. The best part about all of this is that you can install it yourself! This System includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Multi is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.

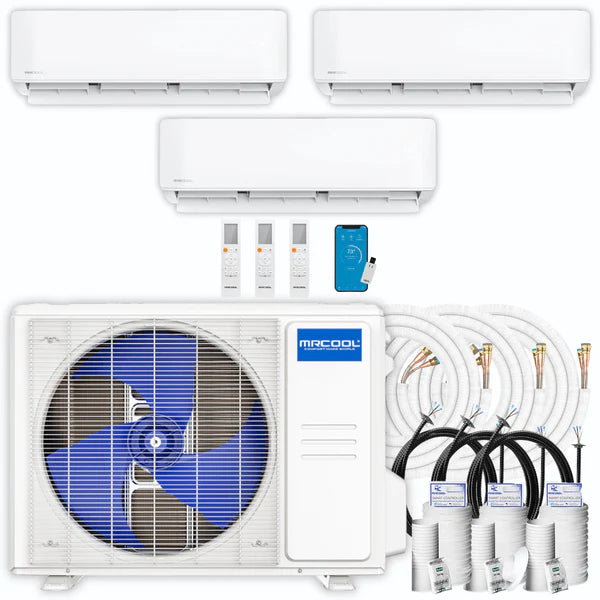

Package Includes
MRCOOL DIY Multi-Zone 3-Zone Condenser, 4th Gen Series,
DIY-MULTI3-27HP230C(This part is Discontinued)
MRCOOL DIY 4th Generation 9K BTU Heat Pump Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x3)
MRCOOL 16ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, DIY16-1412 (x3)
Condenser
- Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
- Works In All Environments. The ability to heat even when temperatures drop to -13°F.
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!
Air Handler, 9K BTU, Quantity 3
- Large Coverage Area. Handler covers an area up to 375 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Features
- Easy DIY® Installation
- "Pre-charged DIY®
- Quick Connect Line Set"
- Simple to Use
- Multi-room Comfort
- Energy Efficient DC Inverter
- 100% Sealed System
- Gold Fin® Condenser
- Eco Safe R-454B Refrigerant
- Smartphone App Controls
- Lifetime Technical Support
- Follow Me® Feature
- Low Ambient Cooling
Product Specifications
Condenser Specifications
| Product Dimensions | 37.24'W x 16.14'D x 31.89'H |
| Cooling Capacity | 27,000 BTU |
| Heating Capacity | 27,000 BTU |
| Zone Capacity | 3 |
| Min Ambient Cool | 5F ~ 122F |
| Min Ambient Heat | -13F ~ 75.2F |
| SEER | 22 |
| EER | 12 |
| Voltage | Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase) |
| Registered Warranty | 7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 9K BTU
| Product Dimensions | 31.57'W x 7.44'D x 11.69'H |
| Mount Type | Wall |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity |
9,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Line Set
| Length | 16 Feet |
| Liquid Line Size |
1/4' |
| Suction Line Size | 1/2' |
