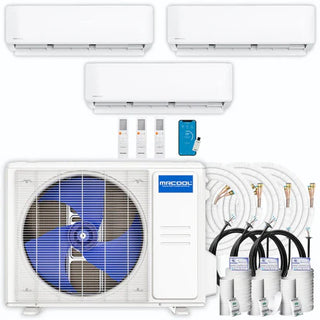

MrCool DIYM327HPW05D00 DIY 5th Gen Multi-Zone 3-Zone 27,000 BTU 23 SEER2 (9K + 9K + 9K) Ductless Mini-Split Air Conditioner and Heat Pump
Heat or cool three zones with the MRCOOL DIY Multi-Zone 27,000 BTU 23 SEER2 3 Zone Ductless Heat Pump Split System - 9K + 9K + 9K. This DIY Series multi-zone product features easy installation that requires no special tools or training. You'll save thousands of dollars on installation and you can get the amazing air comfort of your dreams due to the condenser’s 27,000 BTU capacity.
The three indoor air handlers are all 9,000 btu and use the condenser's power to heat and cool up to approximately 350 square feet each. A heat pump by design, this ductless HVAC solution can run in reverse and pull in heat from the outdoors when in a heating mode. It comes with a 7 Year Compressor and 5 Year Parts Manufacturer Warranty!
The three MRCOOL DIY Multi-Zone air handlers included in this set provide directional control of the heated or cooled air. This distributes the air evenly so everyone in the room can stay comfortable.
Package Includes
DIY-MULTI4-27HP230D-O Condenser(x1)
DIY-09-HP-WMAH-230D25-O Air Handler(x3)
16ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor - R454B (x3)
Features
- Easy DIY® Installation
- "Pre-charged DIY®
- Quick Connect Line Set"
- Simple to Use
- Multi-room Comfort
- Energy Efficient DC Inverter
- 100% Sealed System
- Gold Fin® Condenser
- Eco Safe R-454B Refrigerant
- Smartphone App Controls
- Lifetime Technical Support
- Follow Me® Feature
- Low Ambient Cooling
Product Specifications
9k DIY 5th Generation Mini-Split Air Handler 230V
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle (Hz) | 60 |
| Mount Type | Wall |
| Color | White |
| Max Coverage Area | 400 sqft |
| Oscillation | Yes |
| Filter Type | Reusable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| WiFi Compatibility | Yes |
| App Compatibility | Yes |
| Works With iOS | Yes |
| Works With Android | Yes |
| Remote Control Included | Yes |
| UL Listed | Yes |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| Base Parts Warranty | 5 |
| Base Compressor Warranty | 7 |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Net Depth (in) | 7,44 |
| Net Height (in) | 11,69 |
| Net Width (in) | 31.57 |
| Net Weight | 24.47 |
| Gross Depth (in) | 16.34 |
| Gross Height (in) | 14.37 |
| Gross Width (in) | 36.02 |
| Gross Weight (lbs) | 35.05 |
DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230V
| SEER2 | 23 |
| EER2 | 12 |
| HSPF2-4 | 9,5 |
| HSPF2-5 | 7 |
| TONNAGE | 2,25 |
| COOLING CAPACITY (BTU) | 26000 |
| HEATING CAPACITY (BTU) | 26000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 25 |
| MIN CIRCUIT AMPACITY (A) | 23 |
| COLOR | White |
| ZONE CAPACITY | 4 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 84.66 |
| DECIBEL RATING (DBA) | 61 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 221.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.14 |
| NET HEIGHT (IN) | 31.89 |
| NET WIDTH (IN) | 37.24 |
| NET WEIGHT (LBS) | 140.21 |
| GROSS DEPTH (IN) | 19.69 |
| GROSS HEIGHT (IN) | 34.84 |
| GROSS WIDTH (IN) | 42.91 |
| GROSS WEIGHT (LBS) | 151.02 |
DIY16-1438-O 16ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor - R454B
| Product Type | Line Set |
| Line Set Use | Mr. Cool DIY ONLY |
| Line Set Size (in.) | 1/4 x 3/8 |
| Liquid Connection Size (in.) | 1/4" |
| Suction (Gas) Connection Size (in.) | 3/8" |
| Insulation (in.) | 3/4" |
| Length (ft.) | 16' |
| Wire | Not Included |
