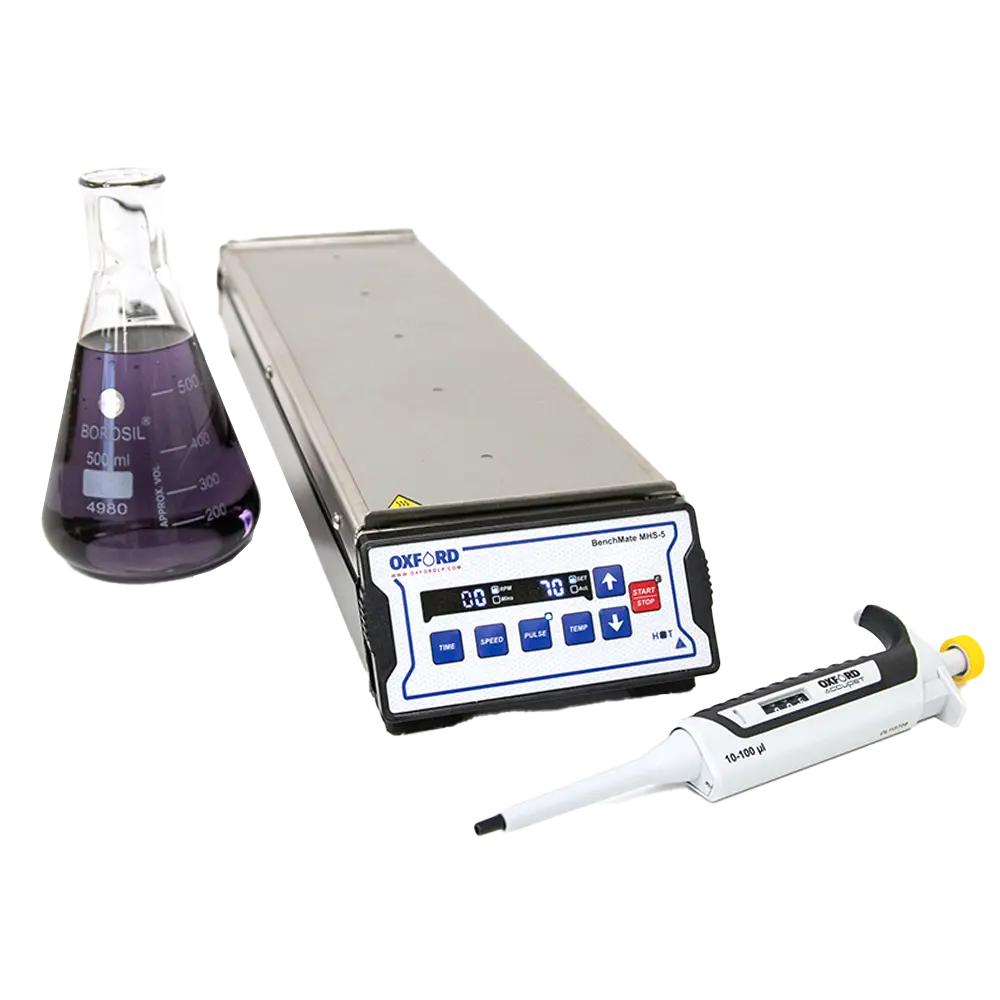

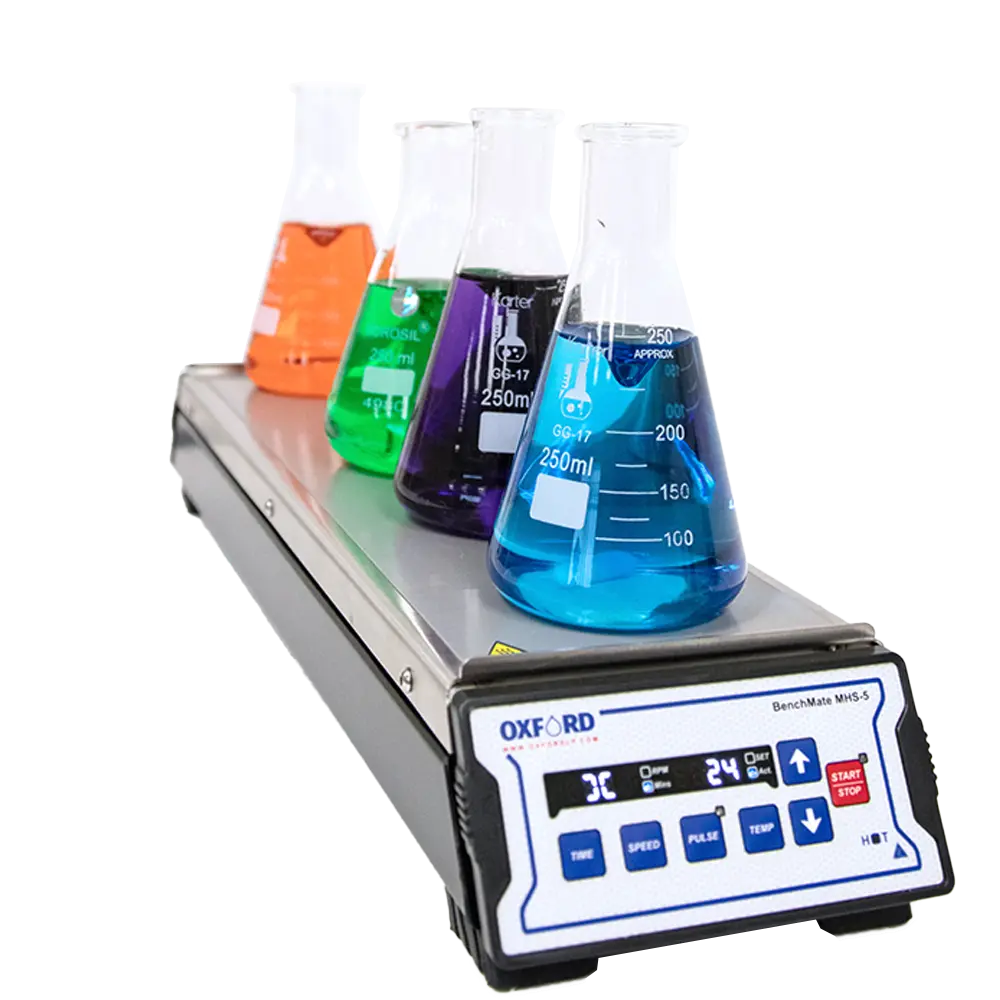

Oxford BenchMate MHS-5 Multi-Position Magnetic Hotplate Stirrer
Oxford BenchMate MHS-5 Multi-Position Magnetic Hotplate Stirrer, 300 RPM - 1500 RPM
This hotplate stirrer units is ideal for mixing solutions, dissolving solutes in solvents, heating solutions, maintaining suspensions in liquids, and keeping multiple solutions at a fixed temperature.
This hotplate stirrer unit has a variable speed range of 300 rpm – 1500 rpm in 10 rpm steps, as well as a timer setting of 1-999 mins and an infinite mode. The closed design allows for easy cleaning and protects the equipment from accidental spills. Meanwhile, the non-slip and sturdy rubber feet provide a solid and secure base.
Feature:
- High-performance multi-position hotplate stirrer with 5 stirring positions for optimal efficiency of time and laboratory space utilization.
- Variable speed from 300 rpm to 1500 rpm in 10 rpm increments.
- Timer setting from 1-999 mins and infinite mode.
- The closed design allows for easy cleaning and protects the equipment from accidental spills.
- Non-slip and sturdy rubber feet.
Specification:
| Number of Stirring positions | 5 |
| Motor Type | BLDC |
| Max Stirring quantity per position | 400 mL |
| Max Stirring Quantity on Equip (H,O) | 2 Liters |
| Speed range | 300 to 1500 rpm |
| Speed control | 10 rpm / Step |
| Heat Temp, range | Room Temp. to 120°C |
| Temperature control | 1°C/Step |
| Time range | 1 to 999 minutes & Infinite |
| Recommended Stirring bar length | 25mm |
| Set-up plate dimensions | 456x118 mm |
| Dimensions (W x D x H) | 565x136x75 mm |
| Heat output | 330 W(110V) |
| 375 W (220V) | |
| Protection class according to DIN EN | IP42 |
| Permissible ambient temp. | 5-40°C |
| Permissible relative humidity | 80% |
| Weight | 3Kg |
| Input Voltage | 110V - 3.6A |
| 220V - 1.7A | |
| Power Consumption | 400 W |
