PHCbi High-Performance Swing Glass Door Pharmaceutical Refrigerator, Cooling with EPA SNAP Compliant Refrigerants, Precision Temperature Control Protects Inventory, QPS Listed

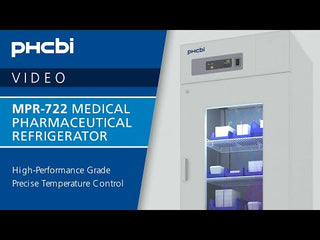

The PHCbi High-Performance Swing Glass Door Pharmaceutical Refrigerator is designed to provide dependable storage for pharmaceuticals, vaccines, biologics, reagents, and laboratory materials requiring precise temperature control. Available with either adjustable open-wire shelves or heavy-duty pull-out drawers, the refrigerator maintains stable temperatures from +2°C to +23°C using a forced-air circulation system with dual blowers for uniform airflow throughout the cabinet.
The microprocessor controller, LED temperature display, cycle defrost system, and visual and audible alarms provide reliable monitoring, while the environmentally responsible SNAP-compliant refrigerant and CFC/HFC-free insulation support efficient laboratory operation.
Features
- Temperature range +2°C to +23°C
- Available with wire shelves or pull-out drawer storage
- Swing glass window door
- Positive forced-air circulation with dual blowers
- Fast temperature recovery after door openings
- Uniform cabinet temperature
- Cycle defrost system
- Microprocessor controller
- LED temperature display
- Lockable keypad controller
- HFO R-513A SNAP-compliant refrigerant
- CFC/HFC-free polyurethane insulation
- Visual, audible, and remote alarms
- Three access ports
- Fluorescent interior lighting
- Optional chart recorder
- Optional battery backup
- Optional blackout panel
- Optional LabSVIFT™ Gen 2
- Optional LabAlert Monitoring System
- QPS Listed
- 3-Year Parts & Labor Warranty (U.S. & Canada)
Specification
| Brand | PHCbi |
| Product Type | Pharmaceutical Refrigerator |
| Door Type | Swing Glass Window Door |
| Temperature Control Range | +2°C to +23°C |
| Temperature Uniformity | ±3°C |
| Controller | Microprocessor with Non-Volatile Memory |
| Display | LED (0.1°C Resolution) |
| Controller Security | Lockable Keypad |
| Temperature Sensor | Thermistor |
| Cooling Method | Forced Air Circulation |
| Defrost Method | Cycle Defrost |
| Refrigerant | HFO R-513A (110 g) |
| Insulation | PUF (CFC/HFC-Free) |
| Exterior Material | Painted Steel |
| Interior Material | Painted Steel |
| Door Lock | Included |
| Door | Painted Steel with Double-Layer Glass Window and Heat Reflection Film |
| Access Ports | 3 (Left, Right & Top) |
| Access Port Diameter | 1.1 in (30 mm) |
| Casters | 4 |
| Leveling Legs | 2 |
| Interior Light | Fluorescent |
| Power Supply | 115V, 60Hz, NEMA 5-15P |
| Running / Maximum Current | 3.3 / 4.5 A |
| Power Consumption | 7.19 kWh/day |
| Noise Level | 48 dB(A) |
| BTU Output | 1127 BTU/hr |
| Certifications | QPS Listed |
| Warranty | 3 Years Parts & Labor (U.S. & Canada) |
| SKU | MPR-722-PA | MPR-722R-PA |
|---|---|---|
| Storage Configuration | 4 Open Wire Shelves | 5 Heavy-Duty Pull-Out Drawers |
| Effective Capacity | 24.2 Cu. Ft. (684 L) | 23.7 Cu. Ft. (671 L) |
| External Dimensions (W × D × H) | 30.3 × 36.2 × 76.9 in | 30.3 × 36.2 × 76.9 in |
| Internal Dimensions (W × D × H) | 25.6 × 27.9 × 59.1 in | 25.6 × 27.9 × 59.1 in |
| Net Weight | 334 lbs (174 kg) | 425 lbs (193 kg) |
| Shelf / Drawer Size | 22.2 × 23.7 in | 21.65 × 20.9 × 3.9 in |
| Maximum Load | 110 lbs (50 kg) per Shelf | 88 lbs (40 kg) per Drawer |
