Overview
From the manufacturer
The PHCbi MCO-170MP-PA Cell-IQ Multigas Incubator is designed to optimize mammalian cell culture by accurately controlling temperature, CO₂, oxygen, and humidity to better reproduce physiological in vivo conditions. The Direct Heat and Air Jacket system delivers stable chamber temperatures, while the dual filter infrared CO₂ sensor and stabilized zirconia O₂ sensor provide precise gas regulation with rapid recovery following door openings.
The inCu-saFe copper-enriched stainless steel chamber provides passive contamination control, while optional SafeCell™ UV and optional hydrogen peroxide (H₂O₂) vapor decontamination systems enhance chamber cleanliness. A color LCD touchscreen, USB data transfer, and integrated shelf channels simplify operation and maintenance for advanced laboratory applications.
Features
Key features
- 5.7 Cu. Ft. (161 L) chamber capacity
- Multigas CO₂/O₂ incubation
- Temperature control range from ambient +5°C to +50°C
- CO₂ control range from 0% to 20%
- O₂ control range from 1% to 18% and 22% to 80%
- Direct Heat and Air Jacket system
- Dual filter infrared CO₂ sensor
- Stabilized zirconia O₂ sensor

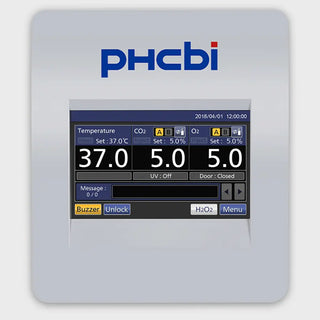

- Color LCD touchscreen
- Microprocessor controller
- USB data transfer
- inCu-saFe copper-enriched stainless steel chamber
- Optional SafeCell™ UV decontamination
- Optional H₂O₂ vapor decontamination
- Three stainless steel shelves
- Supports up to ten shelves
- Field-reversible outer door
- LabAlert Monitoring System compatible
- QPS Listed
- 3-Year Parts & Labor Warranty
Specifications
Manufacturer data. Imperial with metric in brackets.
- Brand
- PHCbi
- Model
- MCO-170MP-PA
- Series
- Cell-IQ
- Product Type
- Multigas (CO₂/O₂) Incubator
- Chamber Capacity
- 5.7 Cu. Ft. (161 L)
- External Dimensions (W × D × H)
- 24.4 × 28.0 × 35.6 in (620 × 710 × 905 mm)
- Internal Dimensions (W × D × H)
- 19.3 × 20.6 × 26.2 in (490 × 523 × 665 mm)
- Net Weight
- 170 lbs
- Temperature Control Range
- Ambient +5°C to +50°C
- Temperature Fluctuation
- ±0.1°C
- Temperature Uniformity
- ±0.25°C
- CO₂ Control Range
- 0–20%
- CO₂ Fluctuation
- ±0.15%
- O₂ Control Range
- 1–18%, 22–80%
- O₂ Fluctuation
- ±0.2%
- Humidity
- 95% RH at 37°C ±5%
- Controller
- Microprocessor
- Display
- Color LCD Touchscreen
- Temperature Sensor
- Thermistor
- CO₂ Sensor
- Dual Filter IR
- O₂ Sensor
- Stabilized Zirconia
- Exterior Material
- Painted Steel
- Interior Material
- Stainless Steel Copper-Enriched Alloy
- Insulation
- Polystyrene
- Outer Door
- 1 Field-Reversible Door
- Inner Door

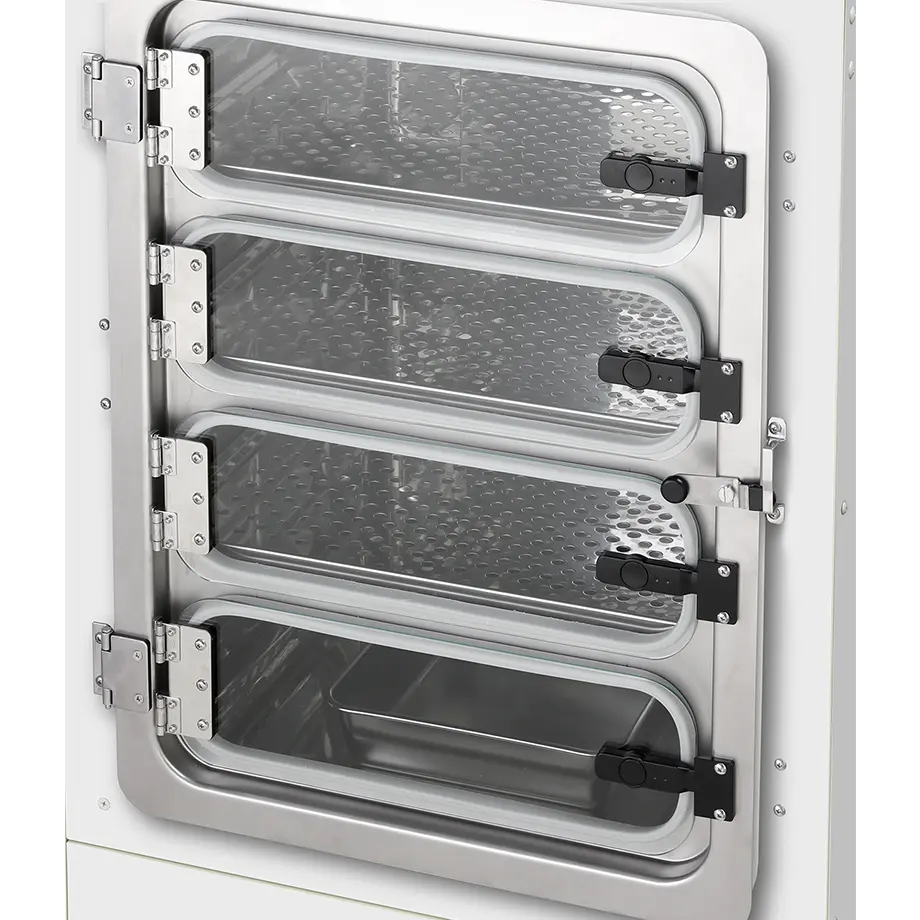

- Stainless Steel Frame with 4 Tempered Glass Inner Doors
- Humidity Pan
- Stainless Steel
- Shelves
- 3 Stainless Steel Copper-Enriched Shelves
- Shelf Dimensions
- 18.5 × 17.7 × 0.5 in (470 × 450 × 12 mm)
- Maximum Shelf Capacity
- 10 Shelves
- Maximum Shelf Load
- 15.4 lbs (7 kg)
- Maximum Total Load
- 61 lbs (28 kg)
- Access Port
- 1 Rear Upper Left
- Access Port Diameter
- 1.2 in (30 mm)
- Leveling Feet
- 4
- Decontamination
- inCu-saFe Chamber, Air Plenum & Shelves
- SafeCell™ UV
- Optional
- H₂O₂ Vapor Decontamination
- Optional
- Alarms
- Power Failure, Temperature Deviation, CO₂ Deviation, N₂/O₂ Deviation, CO₂ Supply Empty, N₂/O₂ Supply Empty, Door Open
- Power Supply
- 115V, 60Hz, 1Ø, NEMA 5-15P
- Noise Level
- 29 dB(A)
- Optional Communication
- LabAlert Monitoring System
- Certification
- QPS Listed
- Warranty
- 3 Years Parts & Labor
