Overview
From the manufacturer

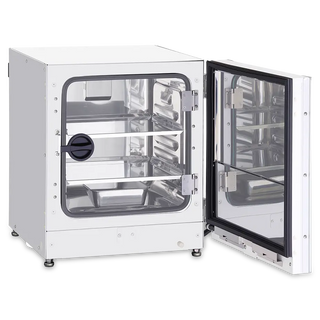

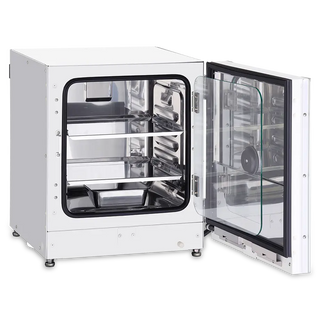

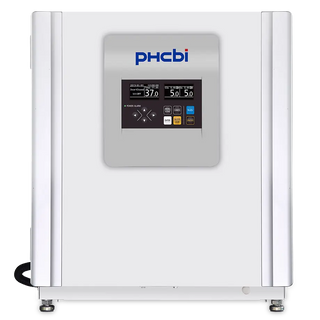

The PHCbi MCO-50M-PA Cell-IQ Multigas Incubator is engineered to precisely control temperature, CO₂, oxygen, and humidity for advanced cell culture applications including stem cell research and in vitro fertilization. The Direct Heat and Air Jacket system maintains stable chamber conditions, while the dual infrared CO₂ sensor and stabilized zirconia O₂ sensor provide accurate gas control with rapid recovery following door openings.
The inCu-saFe copper-enriched stainless steel chamber minimizes contamination, and the integrated shelf channel design simplifies cleaning. A white graphic OLED interface with USB data logging provides intuitive control, while optional SafeCell™ UV and high-speed H₂O₂ vapor decontamination systems are available for enhanced contamination control.
Features
Key features
- 1.8 Cu. Ft. (50 L) chamber capacity
- Multigas CO₂/O₂ incubation
- Temperature control range from ambient +5°C to +50°C
- CO₂ control range from 0% to 20%
- O₂ control range from 1% to 18% and 22% to 80%
- Direct Heat and Air Jacket system
- Dual infrared CO₂ sensor
- Stabilized zirconia O₂ sensor

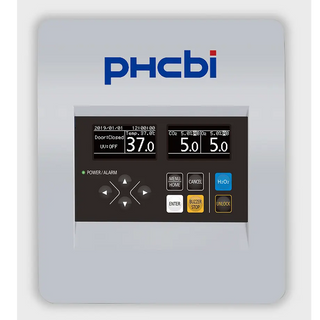

- White graphic OLED display
- Microprocessor controller with soft keys
- USB data logging
- inCu-saFe copper-enriched stainless steel chamber
- Integrated shelf channel design
- Peltier dew stick humidity control
- Optional SafeCell™ UV decontamination
- Optional H₂O₂ vapor decontamination
- Double or triple stackable
- LabAlert Monitoring System compatible
- QPS Listed
- 3-Year Parts & Labor Warranty
Specifications
Manufacturer data. Imperial with metric in brackets.
- Brand
- PHCbi
- Model
- MCO-50M-PA
- Series
- Cell-IQ
- Product Type
- Multigas (CO₂/O₂) Incubator
- Chamber Capacity
- 1.8 Cu. Ft. (50 L)
- External Dimensions (W × D × H)
- 18.9 × 21.7 × 23.0 in (480 × 550 × 585 mm)
- Internal Dimensions (W × D × H)
- 14.6 × 14.3 × 15.2 in (370 × 363 × 385 mm)
- Net Weight
- 101 lbs
- Temperature Control Range
- Ambient +5°C to +50°C
- Temperature Fluctuation
- ±0.1°C
- Temperature Uniformity
- ±0.25°C
- CO₂ Control Range
- 0–20%
- CO₂ Fluctuation
- ±0.15%
- O₂ Control Range
- 1–18%, 22–80%
- O₂ Fluctuation
- ±0.2%
- Humidity
- 95% RH at 37°C ±5%
- Controller
- Microprocessor with Soft Keys
- Display
- White Graphic OLED
- CO₂ Sensor
- Dual Filter IR
- O₂ Sensor
- Stabilized Zirconia
- Temperature Sensor
- Thermistor
- Exterior Material
- Painted Steel
- Interior Material
- Stainless Steel Copper-Enriched Alloy
- Outer Door
- 1 Field-Reversible Door
- Inner Door
- Tempered Glass with Positive Latch
- Humidity Pan
- Stainless Steel
- Shelves
- 2 Stainless Steel Copper-Enriched Shelves
- Maximum Shelf Capacity
- 5 Shelves
- Maximum Shelf Load
- 15.4 lbs (7 kg)
- Maximum Total Load
- 30.9 lbs (14 kg)
- Access Port
- 1 Rear Upper Left
- Access Port Diameter
- 1.2 in (30 mm)
- Leveling Feet
- 4
- Decontamination
- inCu-saFe Chamber, Plenum, Shelves & Shelf Channels
- SafeCell™ UV
- Optional
- H₂O₂ Vapor Decontamination
- Optional
- Alarms
- Power Failure, Temperature Deviation, CO₂ Deviation, O₂ Deviation, CO₂ Supply Empty, Door Open
- Power Supply
- 115V, 60Hz, 1Ø, NEMA 5-15P
- Noise Level
- 29 dB(A)
- Optional Communication
- LabAlert Monitoring System
- Certification
- QPS Listed
- Warranty
- 3 Years Parts & Labor
