PHCbi MCO-80ICL-PA CytoGrow Reach-In CO₂ Incubator, 30.1 Cu. Ft., 115V, Optional UV Protection
PHCbi MCO-80ICL-PA CytoGrow Reach-In CO₂ Incubator, 30.1 Cu. Ft., 115V, Optional UV Protection
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Humidity Control, Infrared (IR) CO₂ Sensor

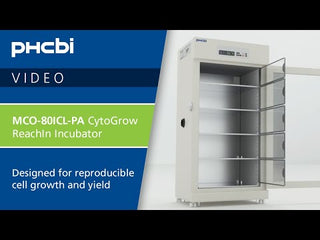

The PHCbi MCO-80ICL-PA CytoGrow ReachIn CO₂ Incubator is designed for laboratories requiring large-capacity incubation for biological samples, microbiological studies, and cell culture applications. Its Direct Heat Air Jacket system and infrared CO₂ sensor provide precise environmental control with rapid CO₂ recovery after door openings. A horizontal laminar airflow system promotes excellent temperature uniformity while allowing full use of solid shelves for maximum culturing capacity.
The inCu-saFe copper-enriched stainless steel chamber provides passive contamination control, while the optional SafeCell™ UV system helps reduce airborne contaminants. Independent LED displays, programmable humidity settings, and a microprocessor controller provide reliable operation for demanding laboratory environments.
Features
- 30.1 Cu. Ft. (851 L) chamber capacity
- Direct Heat Air Jacket heating system
- Infrared (IR) CO₂ sensor
- Temperature control range from ambient +5°C to +50°C
- CO₂ control range from 0% to 20%
- Horizontal laminar airflow system
- Microprocessor controller
- Independent LED displays for temperature and CO₂
- inCu-saFe copper-enriched stainless steel chamber
- Optional SafeCell™ UV decontamination
- Two selectable humidity modes
- Five stainless steel shelves
- Supports up to 18 shelves
- Heated dual-pane glass door
- Remote alarm contacts
- Dual access ports
- Large-capacity ReachIn design
- LabAlert Monitoring System compatible
- 3-Year Parts & Labor Warranty
Specification
| Brand | PHCbi |
| Model | MCO-80ICL-PA |
| Series | CytoGrow ReachIn |
| Product Type | CO₂ Incubator |
| Chamber Capacity | 30.1 Cu. Ft. (851 L) |
| External Dimensions (W × D × H) | 38.6 × 37.2 × 80.3 in (986 × 945 × 2040 mm) |
| Internal Dimensions (W × D × H) | 31.7 × 27.3 × 60.0 in (806 × 693 × 1524 mm) |
| Net Weight | 606 lbs (275 kg) |
| Temperature Control Range | Ambient +5°C to +50°C |
| Temperature Fluctuation | ±0.1°C |
| Temperature Uniformity | ±0.5°C (9-point measurement) |
| CO₂ Control Range | 0–20% |
| CO₂ Fluctuation | ±0.15% |
| Humidity | Normal Mode: >80% RH; High Mode: >90% RH |
| Controller | Microprocessor |
| Display | Dual LED Displays (Temperature & CO₂) |
| CO₂ Sensor | Infrared (IR) |
| Temperature Sensor | Thermistor |
| Exterior Material | Painted Steel |
| Interior Material | Stainless Steel Copper-Enriched Alloy |
| Outer Door | Heated Dual-Pane Glass Door with Latch |
| Shelves | 5 Stainless Steel Copper-Enriched Shelves |
| Maximum Shelf Capacity | 18 Shelves |
| Shelf Dimensions | 30.6 × 25.9 × 0.4 in (776 × 659 × 10 mm) |
| Maximum Load per Shelf | 66.1 lbs (30 kg) |
| Maximum Total Load | 330 lbs (150 kg) |
| Access Ports | 2 (Left & Right Side) |
| Access Port Diameter | 1.6 in (40 mm) |
| Casters | 4 Dual-Wheel Swivel Casters |
| Leveling Feet | 4 |
| Humidity Reservoir | Stainless Steel with Front Drain Valve |
| Decontamination | inCu-saFe Chamber, Air Plenum & Shelves |
| SafeCell™ UV | Optional |
| Alarms | Power Failure, Temperature Deviation, CO₂ Deviation, CO₂ Supply Empty, Door Open, Low Water |
| Chamber Outlet | 115V, 3A Max |
| Cabinet Outlet | 115V, 1A Max |
| Power Supply | 115V, 60Hz, 1Ø, NEMA 5-20P |
| Noise Level | 33 dB(A) |
| Optional Communication | LabAlert Monitoring System |
| Warranty | 3 Years Parts & Labor |
