- Capacity
- 8.2 cu.ft. (232 L)
- Door
- Solid
- Size (W × D × H)
- 68.1" × 30.1" × 39.8"
Overview
From the manufacturer

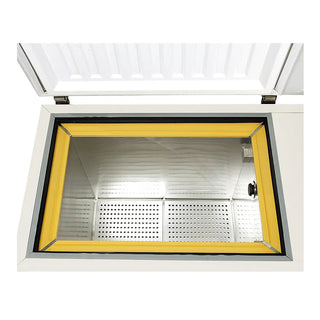

The PHCbi MDF-C2156VANC-PA Cryogenic Chest Freezer provides air phase cryogenic storage without using liquid nitrogen as the primary cooling medium. Its cascade refrigeration system with auto-cascade low stage delivers uniform temperatures down to -150°C, while the integrated microprocessor controller and LCD display provide precise temperature management and monitoring.
VIP Plus vacuum insulated panels maximize storage efficiency within a compact footprint, and the standard integrated LN₂ backup system provides additional protection when connected to an external liquid nitrogen supply. The insulated locking lid with sub-lids helps minimize cold air loss during routine sample access.
Features
Key features
- Cooling performance down to -150°C
- 8.2 Cu. Ft. (231 L) effective capacity
- Air phase cryogenic storage
- No liquid nitrogen required as the primary cooling medium
- Cascade refrigeration system with auto-cascade low stage
- Integrated LN₂ backup system
- VIP Plus vacuum insulated panels
- Microprocessor temperature control system
- LCD alphanumeric display
- Platinum Pt-1000 temperature sensor
- Insulated locking outer lid
- Two insulated inner lids
- Holds up to 165 standard 2-inch storage boxes
- Holds up to 105 standard 3-inch storage boxes
- Stores up to 15 inventory racks
- Audible and visual alarm system
- Remote alarm contacts
- Optional LabSVIFT Gen 2 and LabAlert Monitoring System
- QPS Listed
Specifications
Manufacturer data. Imperial with metric in brackets.
- Brand
- PHCbi
- Model
- MDF-C2156VANC-PA
- Product Type
- Cryogenic Chest Freezer
- Cooling Performance
- -150°C
- Temperature Control Range
- -125°C to -150°C
- Effective Capacity
- 8.2 Cu. Ft. (231 L)
- External Dimensions (W × D × H)
- 68.1 × 30.1 × 39.8 in
- Internal Dimensions (W × D × H)
- 29.9 × 19.5 × 24.2 in
- Footprint
- 13.07 sq. ft. (1.15 m²)
- Net Weight
- 716.5 lbs
- Refrigeration System
- Cascade with Auto-Cascade Low Stage
- Compressors
- (2) 1100 W
- Refrigerant
- High Stage: HFC / Low Stage: HFC Mixed
- Insulation
- 5.31 in (135 mm) Rigid Polyurethane Foam + VIP Plus® Vacuum Insulated Panels
- Controller
- Microprocessor
- Display
- Alphanumeric LCD
- Temperature Sensor
- Pt-1000
- Outer Lid
- Locking Lid with Key Lock
- Inner Lids
- 2 Insulated Lids
- Capacity (2" Boxes)
- 165
- Capacity (3" Boxes)
- 105
- Inventory Racks
- 15
- Access Ports
- 1
- Access Port Diameter
- 1.5 in (39 mm)
- Casters
- 6 (3 Leveling Feet)
- Noise Level
- 51 dB(A)
- BTU Output
- 5790 BTU/hr
- LN₂ Backup System
- Integrated
- LN₂ Backup Temperature Range
- -105°C to -135°C
- Remote Alarm Contacts
- DC 30V 2A
- Power Supply
- 220V, 1Ø, NEMA 6-15P
- Maximum Current
- 9 A
- Certification
- QPS Listed
- Warranty
- 3 Years Parts & Labor + 5 Years Parts on Compressor
