PHCbi MDF-DU302VX-PA TwinGuard -86°C Dual Cool Upright Ultra Low Temperature Freezer, 12.7 Cu. Ft., 220V
PHCbi MDF-DU302VX-PA TwinGuard -86°C Dual Cool Upright Ultra Low Temperature Freezer, 12.7 Cu. Ft., 220V
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
PHCbi MDF-DU302VX-PA TwinGuard -86°C Dual Cool Upright Ultra Low Temperature Freezer, Two Auto-Cascade Cooling Circuits That Work Together, Both Independently And Concurrently
The PHCbi MDF-DU302VX-PA TwinGuard Upright Ultra-Low Temperature Freezer is designed to provide continuous protection for valuable samples using two independent auto-cascade cooling circuits that operate both independently and concurrently. This patented TwinGuard design delivers temperatures down to -86°C, while maintaining -80°C during a service event, helping safeguard stored materials.
With a 12.7 cu. ft. (360 L) capacity, VIP Plus vacuum insulation, color LCD touchscreen controller, USB data transfer capability, and a slim-profile cabinet requiring only 6.36 sq. ft. of floor space, the MDF-DU302VX-PA combines reliable ultra-low temperature storage with efficient space utilization and advanced monitoring capabilities.
Features
- Patented TwinGuard dual auto-cascade cooling system
- Cooling performance down to -86°C
- Maintains -80°C during a service event
- 12.7 Cu. Ft. (360 L) storage capacity
- Slim-profile cabinet design
- Requires only 6.36 sq. ft. of floor space
- VIP Plus vacuum insulated panels

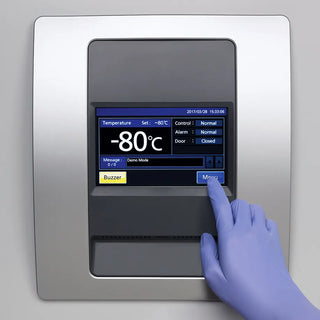

- Color LCD touchscreen controller
- Password-protected microprocessor controller
- USB data transfer capability
- Predictive performance monitoring
- Audible and visual alarm system
- EZlatch one-handed door handle
- Holds up to 240 standard 2" storage boxes
- Holds up to 144 standard 3" storage boxes
- Two insulated inner doors
- Three adjustable shelves
- Automatic and manual vacuum relief ports
- Optional CO₂ backup system
- Optional liquid nitrogen backup system
- 5-Year Parts & Labor Warranty (U.S. & Canada)
Specification
| Brand | PHCbi |
| Model | MDF-DU302VX-PA |
| Series | TwinGuard |
| Product Type | Upright Ultra-Low Temperature Freezer |
| Effective Capacity | 12.7 Cu. Ft. (360 L) |
| Cooling Performance | Down to -86°C |
| Temperature Setting Range | -50°C to -90°C |
| Temperature Control Range | -50°C to -86°C |
| Service Event Temperature | -80°C |
| External Dimensions (W × D × H) | 26.4 × 34.7 × 72.4 in |
| Internal Dimensions (W × D × H) | 19.3 × 23.6 × 48.4 in |
| Net Weight | 496 lbs (225 kg) |
| Power Supply | 208–230V, 1Ø, 60Hz |
| Plug Type | NEMA 6-15P |
| Refrigeration System | Two Auto-Cascade Circuits |
| Compressors | Two 450W Compressors |
| Refrigerant | Mixed HC/HFC Blend |
| Insulation | VIP Plus Vacuum Insulated Panels |
| Insulation Thickness | 3.1 in (80 mm) |
| Controller | Microprocessor, Touchscreen, Password Protected |
| Display | LCD Color Touchscreen |
| Temperature Sensor | Pt-1000 |
| Outer Door | Key Lock with Optional Padlock Provision |
| Inner Doors | 2 Insulated ABS Doors with Stainless Steel Frames |
| Shelves | 3 Adjustable |
| Shelf Load Capacity | 110 lbs (50 kg) |
| Capacity (2" Boxes) | 240 |
| Capacity (3" Boxes) | 144 |
| Inventory Racks | 12 |
| Vacuum Relief | Automatic (Door) & Manual (Side Wall) |
| Access Ports | 3 |
| Access Port Diameter | 0.6 in (17 mm) |
| Noise Level | 52 dB(A) |
| Alarms | Power Failure, High/Low Temperature, Sensor Failure, Cooling Circuit Abnormality, Door Open, Battery Check, Fan Motor Check |
| Remote Alarm Contacts | DC 30V 2A |
| Factory Certifications | ISO9001, ISO13485, ISO14001 |
| NRTL Listing | QPS |
| Warranty | 5 Years Parts & Labor (U.S. & Canada) |
