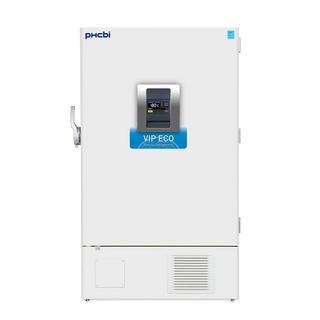

PHCbi MDF-DU901VHA-PA VIP ECO -86°C Ultra Low Freezer, 845L Capacity, ENERGY STAR, Variable-Speed Cascade Refrigeration, 115V
The PHCbi VIP ECO MDF-DU901VHA-PA is a large-capacity upright ultra-low temperature freezer engineered for biobanks, research laboratories, pharmaceutical facilities, hospitals, and life science applications requiring secure long-term storage of valuable biological samples. With an expansive 29.8 cu. ft. (845 L) capacity and storage temperatures as low as -86°C, this ENERGY STAR certified freezer combines exceptional storage density, advanced temperature protection, and industry-leading energy efficiency.
Powered by PHCbi's synchronized variable-speed cascade refrigeration system and natural refrigerants, the MDF-DU901VHA-PA delivers dependable temperature recovery, excellent uniformity, and reduced operating costs. VIP Plus vacuum insulation maximizes usable storage space while minimizing heat intrusion, allowing storage of up to 672 standard 2-inch boxes or 448 standard 3-inch boxes within a compact footprint. The intuitive color touchscreen controller, secure EZlatch door system, insulated inner doors, and comprehensive alarm monitoring provide superior sample protection for demanding laboratory environments.
Features
- Large-capacity 29.8 cu. ft. (845 L) upright ULT freezer
- Ultra-low temperature storage from -50°C to -86°C
- ENERGY STAR® certified for reduced operating costs
- VIP Plus vacuum insulation for maximum storage efficiency
- Variable-speed dual compressor cascade refrigeration system
- Natural refrigerants (R-290 and R-170) for sustainability
- Large color LCD touchscreen controller
- Password-protected microprocessor controls
- USB data logging and operating history download

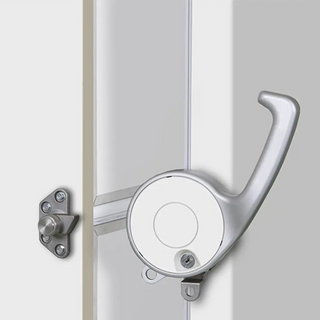

- EZlatch one-handed door access system

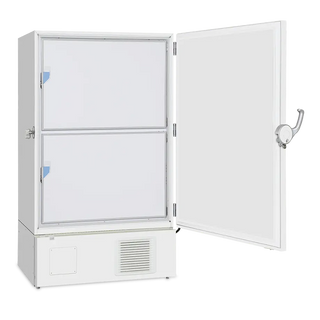

- Two insulated inner doors for improved temperature retention
- Fast temperature recovery after door openings
- Excellent chamber temperature uniformity
- Comprehensive visual, audible, and remote alarm system
- Manual and automatic vacuum relief ports
- Accommodates up to 672 standard 2-inch storage boxes
- Accommodates up to 448 standard 3-inch storage boxes
- Adjustable stainless steel shelves
- Designed to fit through standard 36-inch doorways
- Ideal for biobanks, pharmaceutical storage, and laboratory research applications
Specification
| Brand | PHCbi |
| Series | VIP ECO |
| Model | MDF-DU901VHA-PA |
| Product Type | Upright Ultra Low Temperature Freezer |
| Temperature Range | -50°C to -86°C |
| Cooling Performance | -86°C |
| Capacity | 29.8 cu. ft. (845 L) |
| External Dimensions (W × D × H) | 45.3 × 34.3 × 78.5 in |
| External Dimensions (W × D × H) | 1150 × 870 × 1993 mm |
| Internal Dimensions (W × D × H) | 39.8 × 23.6 × 55.1 in |
| Internal Dimensions (W × D × H) | 1010 × 600 × 1400 mm |
| Net Weight | 723 lbs (328 kg) |
| Power Supply | 115V, 60Hz, 1Ø |
| Plug Type | NEMA 5-20P |
| Noise Level | 52 dB(A) |
| Refrigeration System | Synchronized Variable-Speed Cascade |
| Compressors | Dual 1000W Variable-Speed Compressors |
| Refrigerant (High Stage) | R-290 Natural Refrigerant |
| Refrigerant (Low Stage) | R-170 Natural Refrigerant |
| Insulation | VIP Plus Vacuum Insulation + Polyurethane Foam |
| Insulation Thickness | 3.1 in (80 mm) |
| Shelves | 3 Adjustable Stainless Steel Shelves |
| Inner Doors | 2 Insulated Inner Doors |
| Outer Door | Lockable EZlatch Door |
| Storage Capacity (2" Boxes) | 672 |
| Storage Capacity (3" Boxes) | 448 |
| Inventory Rack Capacity | 28 Racks |
| Temperature Sensor | Pt-1000 |
| Controller | Microprocessor Touchscreen |
| USB Data Port | Yes |
| Alarm System | Power Failure, High/Low Temp, Door Open, Sensor Failure |
| Remote Alarm Contacts | Yes |
| Access Ports | 2 |
| Casters | 4 |
| ENERGY STAR Certified | Yes |
| Warranty | 5 Years Parts & Labor (North America) |
| Country of Use | USA / North America |
| Application | Biobank, Laboratory, Pharmaceutical, Research Storage |
