PHCbi MDF-MU549DHL-PA High-Performance -40°C Biomedical Freezer, 16.9 Cu. Ft., Dual Chamber, 115V
PHCbi MDF-MU549DHL-PA High-Performance -40°C Biomedical Freezer, 16.9 Cu. Ft., Dual Chamber, 115V
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
PHCbi MDF-MU549DHL-PA High-Performance -40°C Biomedical Freezer, Smart Cabinet Design, Natural Refrigerants and Inverter Technology, ENERGY STAR Certified
The PHCbi MDF-MU549DHL-PA High-Performance Biomedical ECO Freezer is designed for dependable storage of biologics, enzymes, culture media, vaccines, laboratory specimens, pharmaceutical products, and other temperature-sensitive materials. Featuring two independently controlled chambers, each operating from -20°C to -40°C, the freezer allows separate temperature settings to support multiple storage applications.
Natural hydrocarbon refrigerant, variable-speed inverter compressors, DC condenser fans, and integrated electronic controls provide energy-efficient performance, while the cold wall refrigeration system helps maintain uniform cabinet temperatures. The unit also features a microprocessor controller with LED display, manual defrost, secure door locks, and ENERGY STAR certification.
Features
- Temperature range -20°C to -40°C
- 16.9 Cu. Ft. (479 L) total capacity
- Two independently controlled storage chambers
- Independent temperature settings for each chamber
- ENERGY STAR Certified
- Natural refrigerant (R-290)
- Two variable-speed inverter compressors
- DC condenser fans
- Cold wall refrigeration system

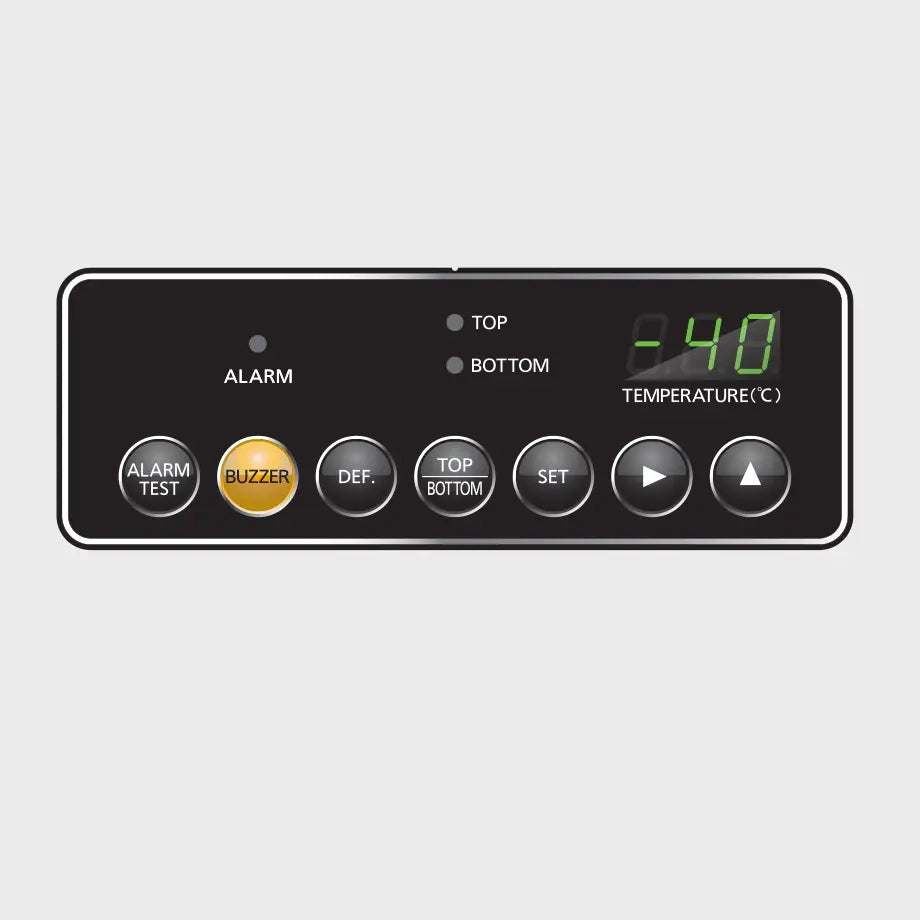

- Microprocessor controller
- Password-protected touchpad controls
- LED temperature display
- Simultaneous or individual chamber temperature display
- Manual defrost
- Six vinyl-coated wire shelves (4 adjustable)
- Two lockable doors
- Door latches with padlock provision
- Two standard access ports
- Visual, audible, and remote alarms
- Optional storage bins
- Optional LabSVIFT Gen 2 communication
- Optional LabAlert Monitoring System
- QPS Listed
- 3-Year Parts & Labor Warranty (U.S. & Canada)
Specification
| Brand | PHCbi |
| Model | MDF-MU549DHL-PA |
| Series | Biomedical ECO |
| Product Type | Biomedical Freezer |
| Temperature Control Range | Top Chamber: -20°C to -40°C; Bottom Chamber: -20°C to -40°C |
| Effective Capacity | 16.9 Cu. Ft. (479 L) Total |
| Chamber Capacity | 8.46 Cu. Ft. (239.5 L) Each Chamber |
| External Dimensions (W × D × H) | 31.2 × 30.3 × 70.9 in |
| Internal Dimensions (W × D × H) | 25.6 × 24.2 × 23.6 in (Each Chamber) |
| Net Weight | 363.8 lbs (165 kg) |
| Refrigeration System | Cold Wall |
| Compressors | (2) 400W Variable-Speed Inverter Driven |
| Refrigerant | R-290 (60 g) |
| Defrost | Manual |
| Insulation | Rigid Polyurethane, Foamed-in-Place, Low GWP |
| Insulation Thickness | 2.8 in (70 mm) |
| Controller | Microprocessor, Touchpad Data Entry, Password Protected |
| Display | LED |
| Temperature Sensor | Thermistor (One per Chamber) |
| Exterior Material | Painted Steel |
| Interior Material | Painted Steel |
| Doors | 2 |
| Key Locks | 1 per Door |
| Additional Lock | Door Latch with Padlock Provision |
| Shelves | 6 Vinyl-Coated Wire Shelves (4 Adjustable) |
| Shelf Dimensions | 24.6 × 20.1 in |
| Maximum Shelf Load | 66.1 lbs (30 kg) |
| Maximum Freezer Load | 396.8 lbs (180 kg) Total |
| Capacity (2" Storage Boxes) | 288 Total (144 per Chamber) |
| Capacity (3" Storage Boxes) | 192 Total (96 per Chamber) |
| Optional Storage Bins | 12 Total (6 per Chamber) |
| Access Ports | 2 (One per Chamber) |
| Access Port Diameter | 1.2 in (30 mm) |
| Casters | 4 |
| Leveling Feet | 2 |
| Power Supply | 115V, 60Hz, 1Ø, NEMA 5-15P |
| Maximum Current | 3.7 A |
| Power Consumption | 3.58 kWh/day |
| Heat Rejection | 717 BTU/hr |
| Noise Level | 42 dB(A) |
| Alarms | Power Failure, High Temperature, Low Temperature |
| Certifications | ENERGY STAR, QPS Listed |
| Warranty | 3 Years Parts & Labor (U.S. & Canada) |
