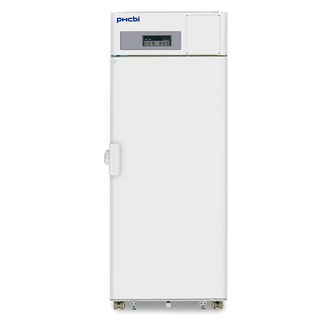

PHCbi MDF-U731-PA High-Performance -30°C Automatic Defrost Upright Biomedical Freezer, Effective capacity, Temperature range
The PHCbi MDF-U731-PA High-Performance Laboratory Grade Freezer is engineered to provide dependable, uniform storage for biologics, enzymes, culture media, vaccines, laboratory specimens, and other temperature-sensitive materials. Its forced air circulation system delivers consistent temperature distribution throughout the cabinet, while the electronically controlled automatic defrost system operates only when needed to minimize maintenance and reduce frost buildup.
A password-protected microprocessor controller, LED display, battery backup, self-diagnostic messaging system, and comprehensive alarm functions provide dependable monitoring and reliable laboratory performance. Flexible storage options, including adjustable wire shelves and optional storage bins or drawer racks, allow the freezer to adapt to a variety of laboratory workflows.
Features
- Temperature control range -20°C to -30°C
- 22.0 Cu. Ft. (623 L) storage capacity
- Automatic defrost system
- Forced air evaporator
- Uniform temperature distribution
- Single hermetic reciprocating compressor
- Microprocessor controller
- Password-protected softkey controls
- LED temperature display
- Battery backup
- Self-diagnostic messaging system
- Audible, visual, and remote alarms
- Four adjustable wire shelves
- Cam latch door closure
- Key lock with padlock provision
- Two access ports (top and left side)
- Optional storage bins
- Optional fixed side-access racks
- Optional sliding drawer racks
- Optional LabSVIFT Gen 1 communication
- Optional LabAlert Monitoring System
- QPS Listed
- 3-Year Parts & Labor Warranty (U.S. & Canada)
Specification
| Brand | PHCbi |
| Model | MDF-U731-PA |
| Product Type | Laboratory Grade Freezer |
| Freezer Type | Upright Automatic Defrost |
| Temperature Control Range | -20°C to -30°C |
| Effective Capacity | 22.0 Cu. Ft. (623 L) |
| External Dimensions (W × D × H) | 30.3 × 32.7 × 77.0 in |
| Internal Dimensions (W × D × H) | 25.6 × 27.6 × 53.9 in |
| Net Weight | 342 lbs (155 kg) |
| Refrigeration System | Single Hermetic Reciprocating Compressor |
| Compressor | (1) 400 W |
| Refrigerant | HFO R-449A (210 g), SNAP and CARB Approved |
| Evaporator Type | Forced Air |
| Defrost | Automatic |
| Insulation | Rigid Polyurethane Foamed-in-Place |
| Controller | Microprocessor, Softkey Data Entry, Password Protected, Memory |
| Display | LED |
| Temperature Sensor | Thermistor |
| Exterior Material | Powder Coated Steel |
| Interior Material | Painted Steel |
| Door | 1 Solid Door |
| Door Lock | Standard Key Lock |
| Additional Lock | Padlock Provision |
| Shelves | 4 Adjustable Wire Shelves |
| Shelf Dimensions | 24.6 × 24.4 in |
| Maximum Shelf Load | 110 lbs (50 kg) |
| Access Ports | 2 (Left Side and Top) |
| Access Port Diameter | 1.1 in (30 mm) |
| Casters | 2 Swivel, 2 Fixed |
| Leveling Feet | 2 Front |
| Power Supply | 115V, 1Ø, NEMA 5-15P |
| Maximum Current | 2.4 / 2.2 A |
| Power Consumption | 6.55 kWh/day |
| Heat Rejection | 955 BTU/hr |
| Noise Level | 40 dB(A) |
| Alarms | Power Failure, High Temperature, Low Temperature, Door Ajar |
| Remote Alarm Outputs | Normally Open / Normally Closed / Common, DC 30V 2A |
| Optional Bins | MDF-T07SC-PW (Up to 10 Bins) |
| Certifications | QPS Listed |
| Warranty | 3 Years Parts & Labor (U.S. & Canada) |
- .
