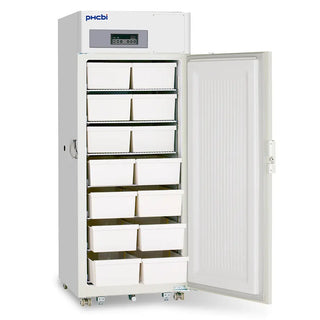

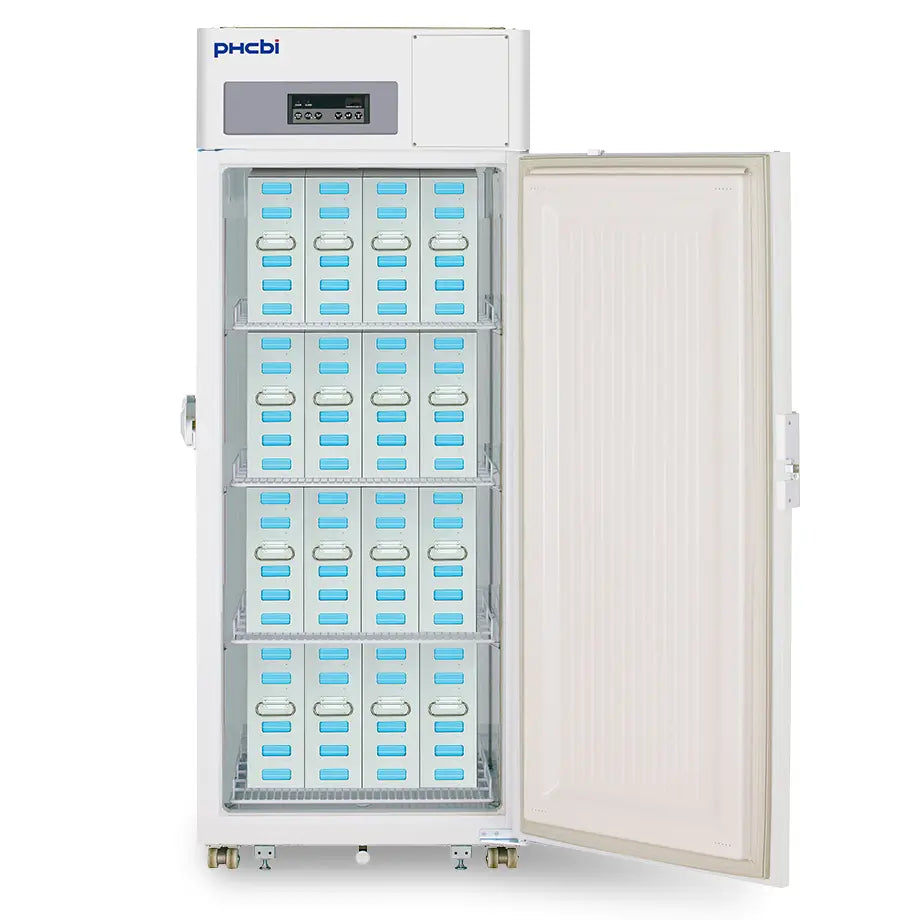

PHCbi MDF-U731M-PA -30°C Manual Defrost Upright Biomedical Freezer, Effective capacity, ENERGY STAR Certified, Microprocessor Control and Alarm System
The PHCbi MDF-U731M-PA Biomedical Freezer is a -30°C manual defrost upright freezer engineered to provide stable, reliable cold storage for biologics, enzymes, culture media, vaccines, laboratory specimens, and other temperature-sensitive materials. Its cold wall evaporator design promotes uniform temperature distribution without the fluctuations associated with automatic defrost cycles, while reserve refrigeration power automatically supports rapid temperature recovery following door openings.
The freezer features a password-protected microprocessor controller with LED display, audible and visual alarms, battery backup, adjustable wire shelving, and optional storage accessories for flexible laboratory storage.
Features
- Temperature control range -20°C to -30°C
- 24.4 Cu. Ft. (690 L) storage capacity
- Manual defrost system
- Cold wall evaporator
- Uniform storage environment
- Single hermetic reciprocating compressor
- Microprocessor controller
- Password-protected softkey controls
- LED temperature display
- Battery backup
- Self-diagnostic messaging system
- Audible, visual, and remote alarms
- Four adjustable wire shelves
- Cam latch door closure
- Key lock with padlock provision
- Two access ports (top and left side)
- Optional storage bins
- Optional side-access racks
- Optional sliding drawer racks
- Optional LabSVIFT Gen 1 communication
- Optional LabAlert Monitoring System
- ENERGY STAR Certified
- QPS Listed
- 3-Year Parts & Labor Warranty (U.S. & Canada)
Specification
| Brand | PHCbi |
| Model | MDF-U731M-PA |
| Product Type | Biomedical Freezer |
| Freezer Type | Upright Manual Defrost |
| Temperature Control Range | -20°C to -30°C |
| Effective Capacity | 24.4 Cu. Ft. (690 L) |
| External Dimensions (W × D × H) | 30.3 × 32.7 × 77.0 in |
| Internal Dimensions (W × D × H) | 25.6 × 27.6 × 59.8 in |
| Net Weight | 335 lbs (152 kg) |
| Refrigeration System | Single Hermetic Reciprocating Compressor |
| Compressor | (1) 400 W |
| Refrigerant | HFO R-449A (260 g), SNAP and CARB Approved |
| Evaporator Type | Cold Wall |
| Defrost | Manual |
| Insulation | Rigid Polyurethane Foamed-in-Place |
| Controller | Microprocessor, Softkey Data Entry, Password Protected, Memory |
| Display | LED |
| Temperature Sensor | Thermistor |
| Exterior Material | Powder Coated Steel |
| Interior Material | Painted Steel |
| Doors | 1 Solid Door |
| Door Lock | Standard Key Lock |
| Additional Lock | Padlock Provision |
| Shelves | 4 Adjustable Wire Shelves |
| Shelf Dimensions | 24.6 × 24.4 in |
| Maximum Shelf Load | 110 lbs (50 kg) |
| Access Ports | 2 (Left Side and Top) |
| Access Port Diameter | 1.1 in (30 mm) |
| Casters | 2 Swivel, 2 Fixed |
| Leveling Feet | 2 Front |
| Power Supply | 115V, 1Ø, NEMA 5-15P |
| Maximum Current | 2.4 / 2.2 A |
| Power Consumption | 2.89 kWh/day |
| Heat Rejection | 801 BTU/hr |
| Noise Level | 40 dB(A) |
| Alarms | Power Failure, High Temperature, Low Temperature, Door Ajar |
| Remote Alarm Output | Normally Open / Normally Closed / Common, DC 30V 2A |
| Certifications | ENERGY STAR, QPS Listed |
| Warranty | 3 Years Parts & Labor (U.S. & Canada) |
