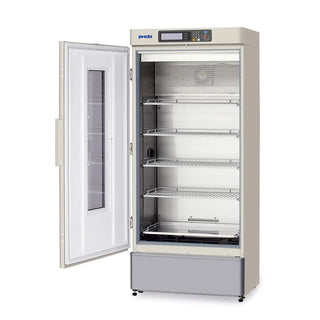

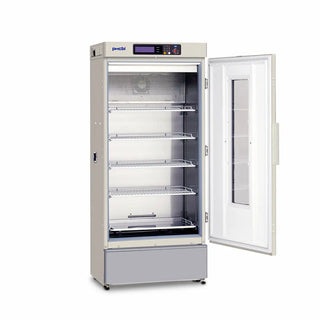

PHCbi MIR-254-PA Heated & Cooled Laboratory Incubator, 8.4 Cu. Ft., 115V, Microprocessor With PID Control
SKU: MIR-254-PA
Free Shipping
Regular price $15,923.70 $13,610.00 15% off
Unit price
per
Capacity
8.4 cu.ft. (238 L)
Door
Glass & solid combo, right hinge
Size (W × D × H)
27.6" × 22.8" × 63.7"
PHCbiSKU MIR-254-PA

PHCbi MIR-254-PA Heated & Cooled Laboratory Incubator, 8.4 Cu. Ft., 115V, Microprocessor With PID Control

Capacity
8.4 cu.ft. (238 L)
Door
Glass & solid combo, right hinge
Size (W × D × H)
27.6" × 22.8" × 63.7"
Regular price $15,923.70 $13,610.00
Unit price
per
Save $2,313.70 (15%)
Free shipping
Availability

?
Inventory levels are dynamic and subject to change due to high demand.

Standard Warranty: 3 year labor & parts warranty

(0 in cart)
SSL SecureSecure Checkout Secure Checkout
  • Fast & reliable shippingShipping cost is calculated and confirmed at checkout.
  • Regulatory compliantRegistered & certified medical equipment
  • Best price guaranteeFind it cheaper? We'll match it.
  • Need help choosing?Call +1-973-858-5049 or contact us
Request a quote

Capacity
8.4 cu.ft. (238 L)
Door
Glass & solid combo, right hinge
Size (W × D × H)
27.6" × 22.8" × 63.7"

Overview

From the manufacturer

The PHCbi MIR-254-PA Heated & Cooled Laboratory Incubator delivers stable temperature control from -10°C to +60°C for microbiology, plant cell biology, industrial testing, and laboratory research applications. A microprocessor with PID control maintains accurate temperature regulation, while fan-forced air circulation provides excellent chamber uniformity without drying culture media.

The programmable controller supports multi-step operation with memory for up to ten programs, allowing flexible test protocols. A solid insulated door with an integrated viewing window, automatic and manual defrost, stainless steel chamber, and SNAP-approved refrigerant provide dependable performance for demanding laboratory environments.

Features

Key features

  • 8.4 Cu. Ft. (238 L) chamber capacity
  • Temperature range from -10°C to +60°C
  • Microprocessor with PID control
  • LCD alphanumeric display
  • Programmable multi-step operation
  • Up to 12 programmable steps
  • Stores up to 10 programs
  • Fan-forced air circulation
  • Automatic and manual defrost
  • SNAP-approved R-513A refrigerant
  • Solid insulated door with viewing window
  • Stainless steel chamber

Specifications

Manufacturer data. Imperial with metric in brackets.

Brand
PHCbi
Model
MIR-254-PA
Product Type
Heated & Cooled Laboratory Incubator
Chamber Capacity
8.4 Cu. Ft. (238 L)
External Dimensions (W × D × H)
27.6 × 22.8 × 63.7 in (700 × 580 × 1618 mm)
Internal Dimensions (W × D × H)
24.4 × 14.5 × 42.8 in (620 × 368 × 1088 mm)
Net Weight
238 lbs
Temperature Range
-10°C to +60°C
Temperature Uniformity
±1.5°C (-10°C to Ambient), ±0.2°C (Ambient to +60°C)
Controller
Microprocessor with PID Control
Display
LCD Alphanumeric
Temperature Sensor
Thermistor
Programming
12 Steps, 1–99 Repeat Cycles, 10 Program Memory
Refrigeration System
Single Compressor
Compressor
250 W Output
Refrigerant
SNAP Approved R-513A
Conditioning System
Fan-Forced Air
Defrost
Automatic and Manual
Defrost Heater
218 W
Insulation
Rigid Polyurethane Foam-in-Place
Exterior Material
Painted Steel
Interior Material
Stainless Steel
Door
Solid Painted Steel with Viewing Window
Interior Light
15 W Fluorescent
Adjustable Shelves
5 Polyethylene-Coated Wire Shelves
Fixed Tray
1 Stainless Steel Tray
Maximum Shelf Load
44 lbs (20 kg)
Access Port
1
Access Port Position
Left Sidewall
Access Port Diameter
1.6 in (40 mm)
Casters
4
Leveling Feet
4 Adjustable
Alarms
Power Failure, High Temperature, Low Temperature, Door Open
Remote Alarm Contact
DC 30V, 2A
Power Supply
115V, 60Hz, 1Ø, NEMA 5-15P
Noise Level
44 dB(A)
Optional Monitoring
LabAlert Monitoring System, LabSVIFT™ Gen 2
Warranty
3 Years Parts & Labor

Documents

Files from the manufacturer

Spec sheetPHCBI_MIR_254_product_sheet.pdf
Download PDF

Shipping & returns

Ships by freight or parcel depending on size. The shipping cost is calculated and confirmed at checkout.

View the return policy for this item

Warranty

3 year labor & parts warranty.

Optional CPS protection plans can be added before checkout.
