- Capacity
- 14.3 cu.ft. (405 L)
- Door
- Solid, right hinge
- Size (W × D × H)
- 31.5" × 32.8" × 71.3"
Overview
From the manufacturer

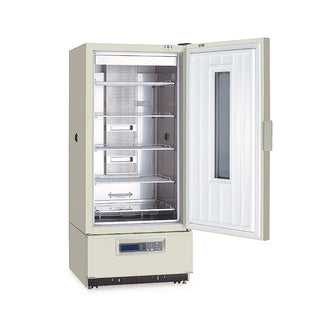

The PHCbi MIR-554-PA Heated & Cooled Laboratory Incubator provides reliable temperature conditioning from -10°C to +60°C for microbiology, plant cell biology, industrial testing, and laboratory research applications. A microprocessor with PID control and fan-forced rear wall plenum airflow deliver excellent temperature uniformity throughout the chamber while minimizing media dehydration.
The programmable controller supports multi-step operation with storage for up to ten programs, providing flexibility for complex testing protocols. The large-capacity cabinet features a solid insulated door with a viewing window and light-tight cover, stainless steel interior, automatic and manual defrost, and SNAP-approved R-513A refrigerant for dependable laboratory performance.
Features
Key features
- 14.3 Cu. Ft. (406 L) chamber capacity
- Temperature range from -10°C to +60°C
- Microprocessor with PID control
- LCD alphanumeric display
- Programmable multi-step operation
- Up to 12 programmable steps
- Stores up to 10 programs
- Fan-forced rear wall plenum airflow
- Automatic and manual defrost
- SNAP-approved R-513A refrigerant
- Solid insulated door with viewing window
- Light-tight door cover
- Stainless steel chamber
- Interior fluorescent lighting
- Five polyethylene-coated wire shelves
- Adjustable temperature in 0.1°C increments
- Key lock
- Visual, audible, and remote alarms
- LabAlert and LabSVIFT™ Gen 2 compatible
- 3-Year Parts & Labor Warranty
Specifications
Manufacturer data. Imperial with metric in brackets.
- Brand
- PHCbi
- Model
- MIR-554-PA
- Product Type
- Heated & Cooled Laboratory Incubator
- Chamber Capacity
- 14.3 Cu. Ft. (406 L)
- External Dimensions (W × D × H)
- 31.5 × 32.8 × 71.3 in (800 × 832 × 1810 mm)
- Internal Dimensions (W × D × H)
- 25.2 × 21.7 × 45.7 in (640 × 550 × 1160 mm)
- Net Weight
- 430 lbs
- Temperature Range
- -10°C to +60°C
- Temperature Uniformity
- ±1.5°C (-10°C to Ambient), ±0.2°C (Ambient to +60°C)
- Controller
- Microprocessor with PID Control
- Display
- LCD Alphanumeric
- Temperature Sensor
- Thermistor
- Programming
- 12 Steps, 1–99 Repeat Cycles, 10 Program Memory
- Refrigeration System
- Single Compressor
- Compressor
- 250 W Output
- Refrigerant
- SNAP Approved R-513A
- Conditioning System
- Fan-Forced Air, Rear Wall Plenum
- Defrost
- Automatic and Manual
- Defrost Heater
- 322 W
- Insulation
- Rigid Polyurethane Foam-in-Place
- Exterior Material
- Painted Steel
- Interior Material
- Stainless Steel
- Door
- Solid Painted Steel with Viewing Window and Light-Tight Door
- Door Lock
- Standard Key Lock
- Interior Light
- 15 W Fluorescent
- Adjustable Shelves
- 4 Polyethylene-Coated Wire Shelves
- Lower Shelf
- 1 Polyethylene-Coated Wire Shelf
- Shelf Dimensions (Upper)
- 22.9 × 17.3 in (580 × 440 mm)
- Shelf Dimensions (Lower)
- 22.9 × 19.3 in (580 × 490 mm)
- Maximum Shelf Load
- 110 lbs (50 kg)
- Access Ports
- 2
- Access Port Position
- Left & Right Sidewall
- Access Port Diameter
- 1.6 in (40 mm)
- Casters
- 4
- Leveling Feet
- 4 Adjustable
- Alarms
- Power Failure, High Temperature, Low Temperature, Door Open
- Remote Alarm Contact
- DC 30V, 2A
- Power Supply
- 115V, 60Hz, 1Ø, NEMA 5-15P
- Noise Level
- 45 dB(A)
- Optional Monitoring
- LabAlert Monitoring System, LabSVIFT™ Gen 2
- Warranty
- 3 Years Parts & Labor
