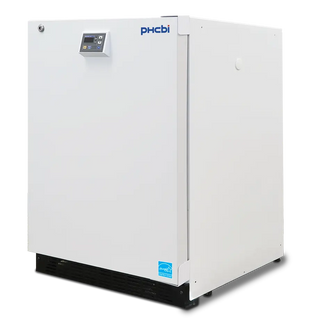

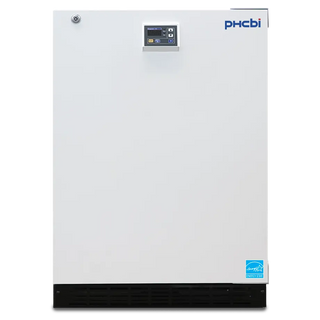

PHCbi PF-L5181W-PA High Performance Undercounter Medical Freezer, ENERGY STAR Certified, Temperature Control Precision
The PHCbi PF-L5181W-PA High-Performance Undercounter Lab Grade Freezer is designed for reliable storage of vaccines, enzymes, and other temperature-sensitive laboratory materials in a compact footprint that fits beneath most laboratory benches and workstations.
Maintaining temperatures from -15°C to -25°C, the freezer combines manual defrost, forced-air circulation, and direct contact evaporator shelving to provide stable temperature uniformity, even when fully loaded. An inverter-driven compressor, natural R-600a refrigerant, microprocessor controller with LED display, anti-tamper security, and comprehensive alarm monitoring deliver dependable laboratory performance while meeting ENERGY STAR efficiency standards.
Features
- Temperature range -15°C to -25°C
- 5.0 Cu. Ft. (142 L) storage capacity
- ENERGY STAR Certified
- Undercounter laboratory design
- Solid door for light-sensitive materials
- Manual defrost system
- Direct contact evaporator shelving
- Forced-air circulation
- Inverter compressor technology
- Natural refrigerant (R-600a)
- Microprocessor controller
- LED temperature display
- Front panel anti-tamper lockout
- High, low, door, and sensor failure alarms
- Self-closing door
- Three coated steel wire shelves
- Standard access port
- Keyed door lock
- Optional stacking kit
- Optional LabAlert Monitoring System
- 2-Year Parts & Labor Warranty
Specification
| Brand | PHCbi |
| Model | PF-L5181W-PA |
| Product Type | Undercounter Laboratory Freezer |
| Door Type | Solid Door |
| Effective Capacity | 5.0 Cu. Ft. (142 L) |
| Cooling Performance | -15°C to -25°C |
| Temperature Setting Range | -15°C to -25°C (0.1°C Increments) |
| Temperature Control Range | -15°C to -25°C |
| Temperature Uniformity | ±5°C (Typical) |
| External Dimensions (W × D × H) | 23.8 × 23.7 × 34.1 in (606 × 600 × 867 mm) |
| Overall Depth (Including Controller) | 24.5 in (622 mm) |
| Internal Dimensions (W × D × H) | 19.9 × 17.1 × 25.6 in (507 × 434 × 650 mm) |
| Net Weight | 100 lbs (45 kg) |
| Controller | Microprocessor |
| Display | LED |
| Security | Front Panel Anti-Tamper Lockout |
| Temperature Sensor | Thermistor |
| Refrigeration System | Direct Contact Evaporator Shelving |
| Compressor | 40W Hermetic Inverter |
| Refrigerant | R-600a |
| Defrost | Manual |
| Insulation | SNAP-Compliant HFO Foamed-in-Place |
| Exterior Material | White PCM Galvanized Steel, Polyester Resin Baked Finish |
| Interior Material | HFO Vacuum-Formed Plastic |
| Door | 1 Electro-Galvanized Steel Door |
| Door Lock | 1 Key Lock (2 Keys Included) |
| Shelves | 3 Coated Steel Wire Shelves |
| Shelf Dimensions | 19.2 × 14.75 in (487 × 375 mm) |
| Access Port | 1 |
| Access Port Location | Right Side |
| Access Port Diameter | 1.2 in (30 mm) |
| Leveling Feet | 4 |
| Power Supply | 115V, 60Hz, 1Ø, NEMA 5-15P |
| Alarms | High Temperature, Low Temperature, Door, Sensor Failure |
| Optional Accessories | 4–20mA Analog Output, Stacking Kit, Keypad Electric Lock |
| Optional Monitoring | LabAlert Monitoring System |
| ENERGY STAR | Yes |
| Warranty | 2 Years Parts & Labor |
