PHCbi VIP ECO Natural Refrigerant -86°C Upright Ultra Low Temperature Freezer, ENERGY STAR Certified, Balanced Power
The PHCbi VIP ECO Natural Refrigerant Upright Ultra Low Temperature Freezer delivers dependable ultra-low temperature storage with an effective capacity of 18.6 cu. ft. (528 L) and cooling performance down to -86°C. Featuring a synchronized variable speed cascade refrigeration system, natural refrigerants, VIP Plus vacuum insulated panels, and ENERGY STAR certified performance, the freezer is designed to provide reliable sample protection while reducing daily energy consumption.

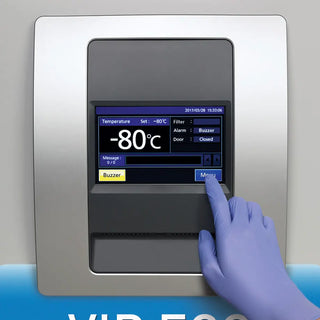

An eye-level LCD color touchscreen, USB data transfer, password-protected controller, audible and visual warnings, and the EZlatch one-handed door handle provide convenient operation and monitoring. Available in 115V and 220V configurations to meet different installation requirements.
Features
- Cooling performance down to -86°C
- 18.6 Cu. Ft. (528 L) effective capacity
- Available in 115V and 220V
- ENERGY STAR Certified
- Natural refrigerants (R-290 / R-170)
- Synchronized variable speed cascade refrigeration system
- Two 750W variable speed compressors
- VIP Plus vacuum insulated panels
- LCD color touchscreen display
- Password-protected microprocessor controller
- USB data transfer capability
- Audible and visual warnings
- Temperature and door opening history

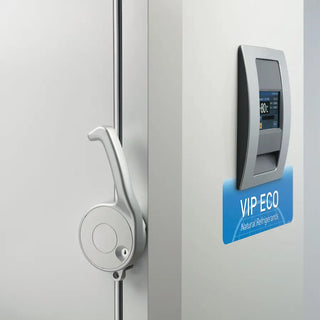

- EZlatch one-handed door handle
- Holds up to 384 standard 2-inch storage boxes
- Holds up to 256 standard 3-inch storage boxes
- Three adjustable shelves
- Two insulated ABS inner doors with stainless steel frames
- Automatic vacuum relief
- Manual vacuum relief
- Three access ports
- QPS Listed
- 5-Year Parts & Labor Warranty (U.S. & Canada)
Specification
| Brand | PHCbi |
| Series | VIP ECO |
| Product Type | Upright Ultra Low Temperature Freezer |
| Available Models | MDF-DU502VHA-PA (115V), MDF-DU502VH-PA (220V) |
| Effective Capacity | 18.6 Cu. Ft. (528 L) |
| External Dimensions (W × D × H) | 31.1 × 34.7 × 78.5 in |
| Internal Dimensions (W × D × H) | 24.8 × 23.6 × 55.1 in |
| Net Weight | 542 lbs (246 kg) |
| Refrigeration System | Synchronized Variable Speed Cascade System |
| Compressors | Two 750W Variable Speed Compressors |
| Refrigerant | High Stage: R-290 Natural Refrigerant / Low Stage: R-170 Natural Refrigerant |
| Insulation | VIP Plus Vacuum Insulated Panels + Foamed-in-Place Insulation |
| Controller | Microprocessor, Touchscreen Data Entry, Password Protected |
| Display | LCD Color Touchscreen |
| Temperature Sensor | Pt-1000 |
| Outer Door | Key Lock with Optional Padlock Provision |
| Inner Doors | 2 Insulated ABS Doors with Stainless Steel Frames |
| Shelves | 3 Adjustable |
| Shelf Dimensions | 24.2 × 21.0 in |
| Maximum Shelf Load | 110 lbs (50 kg) |
| Capacity (2" Storage Boxes) | 384 |
| Capacity (3" Storage Boxes) | 256 |
| Inventory Rack Capacity | 16 |
| Auto Vacuum Relief | 1 |
| Manual Vacuum Relief | 1 |
| Access Ports | 3 |
| Access Port Diameter | 0.6 in (17 mm) |
| Noise Level | 46 dB(A) |
| Certifications | ENERGY STAR, QPS Listed |
| Warranty | 5 Years Parts & Labor (U.S. & Canada) |
| SKU | Voltage | Plug Type | Cooling Performance | Temperature Setting Range | Temperature Control Range |
|---|---|---|---|---|---|
| MDF-DU502VHA-PA | 115V | NEMA 5-20P | -50°C to -86°C | -50°C to -90°C | -50°C to -90°C |
| MDF-DU502VH-PA | 220V | NEMA 6-15P | -40°C to -86°C | -40°C to -90°C | -40°C to -90°C |
