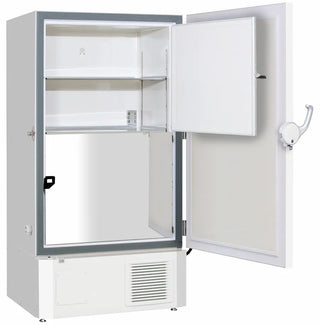

PHCbi VIP ECO Natural Refrigerant -86°C Upright Ultra Low Temperature Freezer, 25.7 Cu. Ft. Energy Efficient, Balanced Power, ENERGY STAR Certified
The PHCbi VIP ECO Natural Refrigerant Upright Ultra Low Temperature Freezer delivers dependable sample protection with temperatures down to -86°C while combining outstanding energy efficiency and reliable performance. Featuring an effective storage capacity of 25.7 cu. ft. (729 L), the freezer utilizes a synchronized variable speed cascade refrigeration system with natural refrigerants and VIP Plus vacuum insulated panels to maximize storage efficiency and temperature stability. An eye-level LCD color touchscreen with password-protected controls, USB data transfer, EZlatch one-handed door access, and comprehensive visual and audible alarms provide convenient operation and secure monitoring. Available in both 115V and 220V configurations, the VIP ECO freezer is designed for laboratories requiring reliable ultra-low temperature storage with ENERGY STAR certified performance.
Features
- Cooling performance down to -86°C
- 25.7 Cu. Ft. (729 L) effective storage capacity
- Available in 115V and 220V configurations
- ENERGY STAR Certified
- Natural refrigerants (R-290 / R-170)
- Synchronized variable speed cascade refrigeration system
- Two 750W variable speed compressors
- VIP Plus vacuum insulated panels

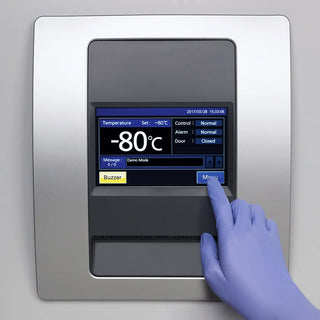

- LCD color touchscreen display
- Password-protected microprocessor controller
- USB data transfer capability
- Audible and visual warning system
- Temperature and door opening history

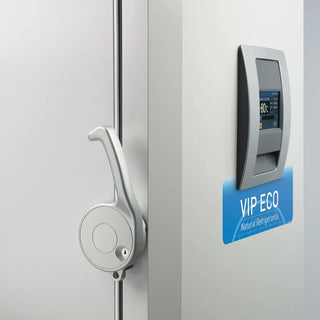

- EZlatch one-handed door handle
- Holds up to 576 standard 2-inch storage boxes
- Holds up to 384 standard 3-inch storage boxes
- Three adjustable shelves
- Two insulated inner doors with stainless steel frames
- Automatic vacuum relief
- Manual vacuum relief
- Three access ports
- QPS Listed
- 5-Year Parts & Labor Warranty (U.S. & Canada)
Specification
| Specification | Value |
|---|---|
| Brand | PHCbi |
| Series | VIP ECO |
| Product Type | Upright Ultra Low Temperature Freezer |
| Available Models | MDF-DU702VHA-PA (115V), MDF-DU702VH-PA (220V) |
| Effective Capacity | 25.7 Cu. Ft. (729 L) |
| Cooling Performance | Down to -86°C |
| External Dimensions (W × D × H) | 40.6 × 36.8 × 78.5 in |
| Internal Dimensions (W × D × H) | 34.3 × 23.6 × 55.1 in |
| Net Weight | 613 lbs (278 kg) |
| Refrigeration System | Synchronized Variable Speed Cascade System |
| Compressors | Two 750W Variable Speed Compressors |
| Refrigerant | High Stage: R-290 / Low Stage: R-170 |
| Insulation | VIP Plus Vacuum Insulated Panels + Rigid Polyurethane Foam |
| Controller | Password-Protected Microprocessor |
| Display | LCD Color Touchscreen |
| Temperature Sensor | Pt-1000 |
| Outer Door | Key Lock with Optional Padlock Provision |
| Inner Doors | Two Insulated ABS Doors with Stainless Steel Frames |
| Shelves | Three Adjustable |
| Maximum Shelf Load | 110 lbs (50 kg) |
| Capacity (2" Storage Boxes) | 576 |
| Capacity (3" Storage Boxes) | 384 |
| Inventory Rack Capacity | 24 |
| Auto Vacuum Relief | Yes |
| Manual Vacuum Relief | Yes |
| Access Ports | 3 |
| Access Port Diameter | 0.6 in (17 mm) |
| Noise Level | 46 dB(A) |
| Alarm System | Power Failure, High/Low Temperature, Sensor Failure, Door Open, Battery Check |
| Remote Alarm Contacts | DC 30V 2A |
| Certifications | ENERGY STAR, QPS Listed |
| Warranty | 5 Years Parts & Labor (U.S. & Canada) |
| SKU | Voltage | Plug Type | Cooling Performance | Temperature Setting Range | Temperature Control Range |
|---|---|---|---|---|---|
| MDF-DU702VHA-PA | 115V | NEMA 5-20P | -50°C to -86°C | -50°C to -90°C | -50°C to -86°C |
| MDF-DU702VH-PA | 220V | NEMA 6-15P | -40°C to -86°C | -40°C to -90°C | -40°C to -86°C |
