| General Specifications | |
|---|---|
| Brand / Line | Powerline by Body-Solid |
| Product Name | Vertical Leg Press Machine |
| Model | PVLP156X |
| Product Category | Compact Plate-Loaded Vertical Leg Press |
| Commercial Rating | In-Home / Personal Gym Use |
| Frame Material | Heavy-Duty Alloy Steel |
| Finish | Electrostatically Applied Powder Coat Finish |
| Maximum Weight Capacity | 400.00 lbs. (181.44 kg) |
| Guide Mechanism | Precision Nylon Bushing System |
| Safety Mechanism | Dual 1/2" Steel Locking Pins (3 Adjustable Start/Stop Heights) |
| Weight Posts | 3 x 1.00" Standard Weight Posts (Compatible with optional OAS14 Olympic Adapter Sleeves) |
| Target Musculature & Exercises | |
| Primary Exercises | Vertical Leg Press, Vertical Calf Raise |
| Target Muscle Groups | Quadriceps (Rectus Femoris, Vastus Lateralis, Vastus Medialis), Gluteus Maximus, Hamstrings, Calves (Gastrocnemius, Soleus) |
| Dimensions & Weights | |
| Assembled Machine Dimensions | |
| Length | 45.00" (1,143.00 mm) (Alternative Spec Sheet: 46.00" / 1,168.40 mm) |
| Width | 47.00" (1,193.80 mm) (Alternative Spec Sheet: 48.00" / 1,219.20 mm) |
| Height | 55.00" (1,397.00 mm) (Extends up to 61.00" H / 1,549.40 mm H) |
| Assembled Unit Weight | 77.00 lbs (34.93 kg) / 93.00 lbs (42.18 kg) |
| Shipping & Package Specifications | |
| Package Length | 47.64" (1,210.06 mm) |
| Package Width | 34.25" (869.95 mm) |
| Package Height | 6.69" (169.93 mm) |
| Package Volume | 6.32 cu. ft. (0.18 m³) |
| Gross Shipping Weight | 94.60 lbs (42.91 kg) |
| Manufacturer Warranty Structure | |
| Powerline In-Home Warranty | |
| Frame & Welds | 10 Years |
| Bushings & Hardware | 1 Year |
| Pads, Grips, Cables, & Pulleys | 1 Year |
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Powerline PVLP156X Vertical Leg Press Machine, Vertical Space-Saving Design, Ergonomic Back and Neck Support, Triple Weight Post Distribution

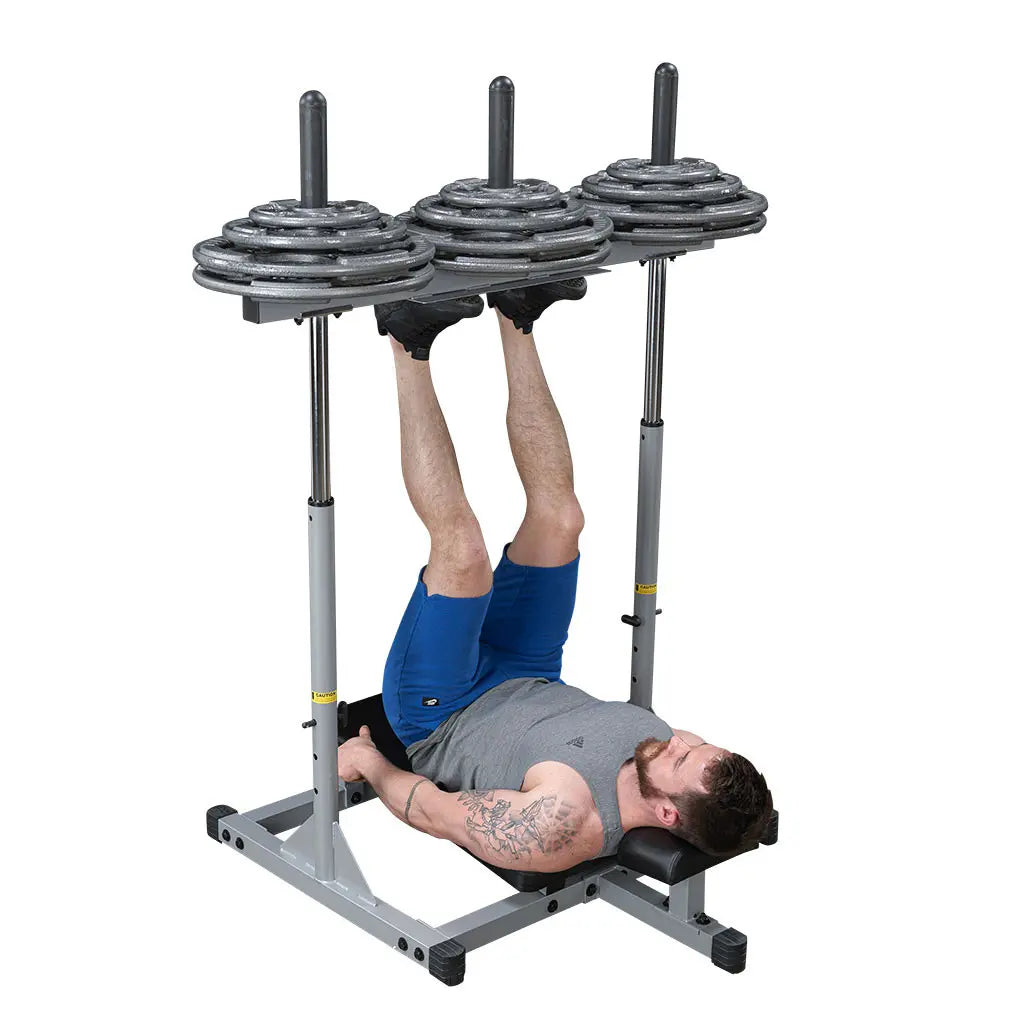

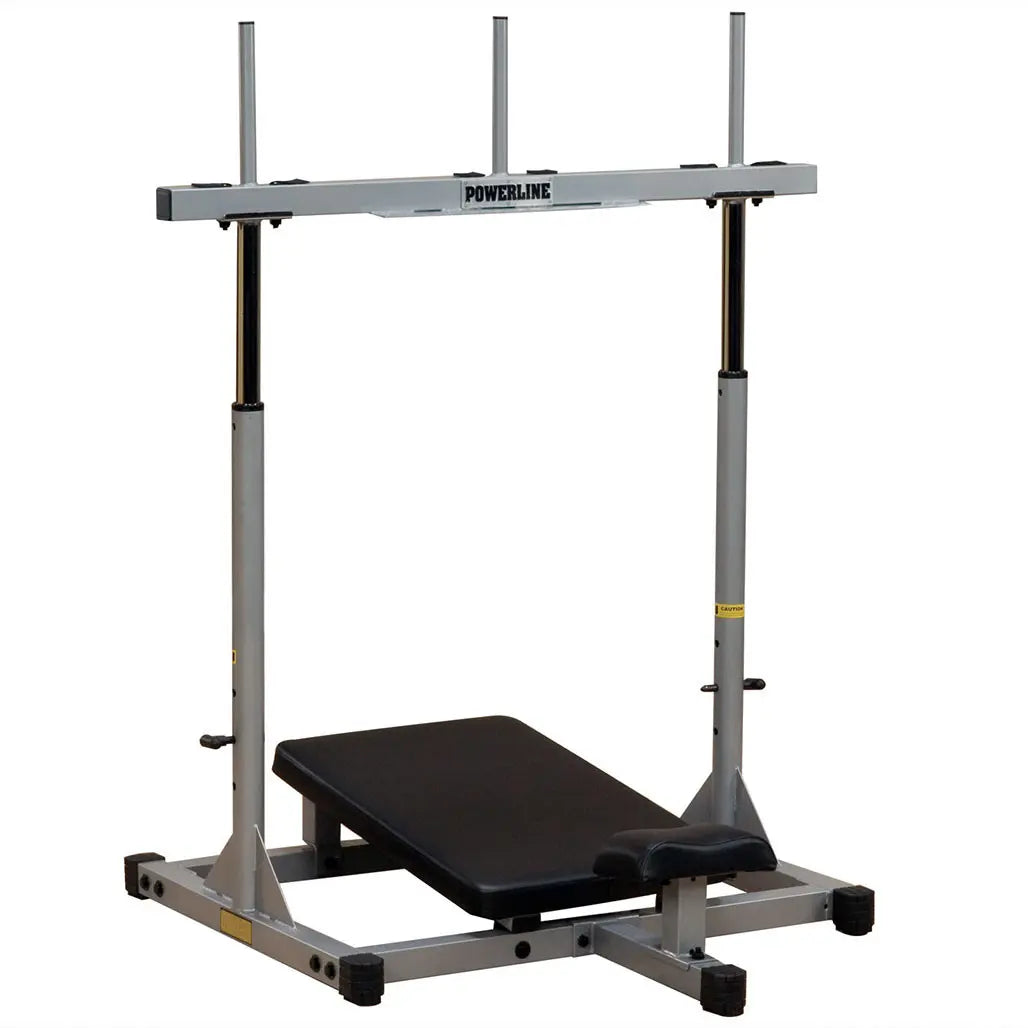

The Powerline Vertical Leg Press (PVLP156X) by Body-Solid delivers an efficient, space-saving lower-body training station designed to maximize quadriceps, hamstring, glute, and calf muscle gains. By utilizing a vertical lifting plane where users press resistance directly above the hips, this machine provides superior lumbar support while eliminating unnecessary strain on the spine and shoulders.
Engineered with a durable alloy steel frame finished in an electrostatically applied powder coat, the PVLP156X features a 400 lb. weight capacity. Smooth, consistent carriage motion is driven by precision nylon bushings along heavy-duty guide posts. For user comfort and safety, it includes extra-thick back padding, a contoured head and neck pad, a wide diamond-plate non-slip foot deck, and dual 1/2" steel locking pins with three adjustable starting and stopping positions.
Features:
- Vertical Space-Saving Design: Direct-overhead pressing motion provides maximum lower-body isolation while taking up minimal floor space compared to traditional angled leg presses.

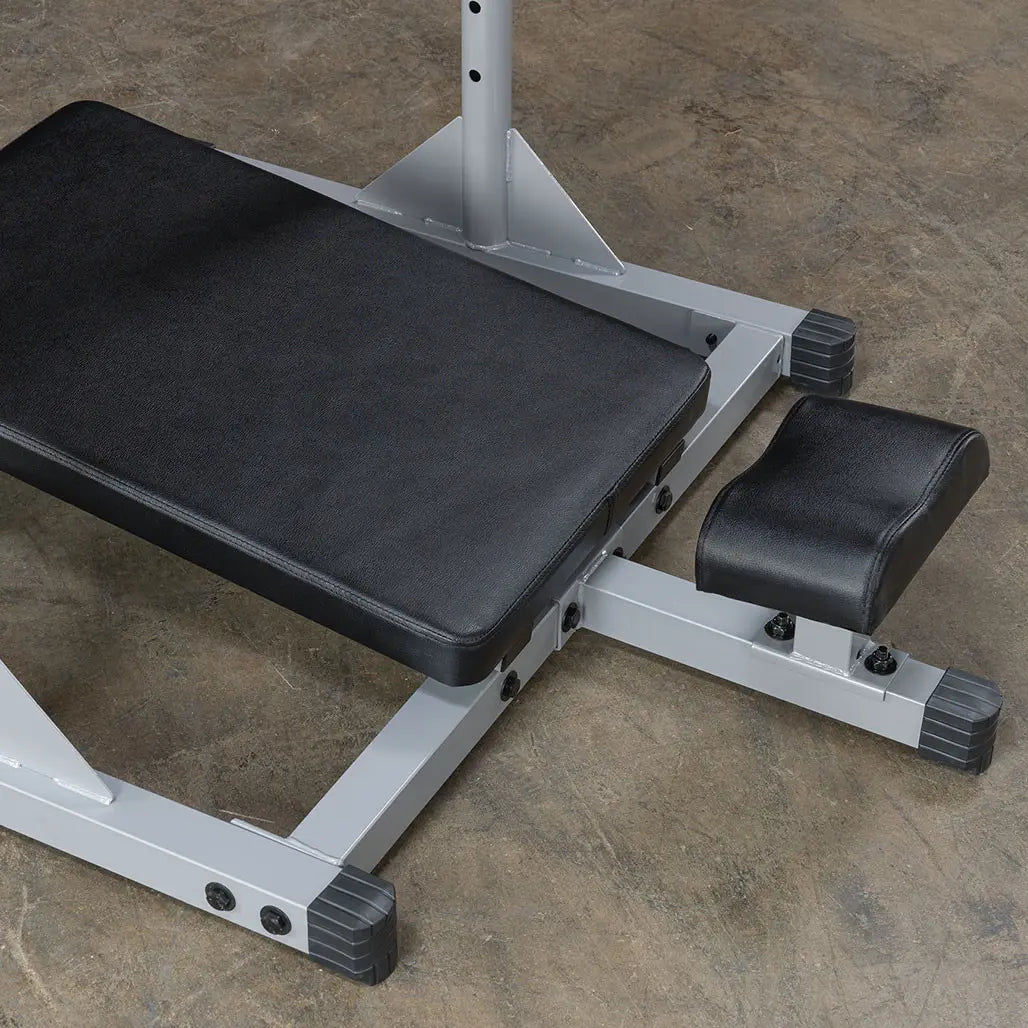

- Ergonomic Back & Neck Support: Features extra-thick back cushioning alongside a contoured head and neck support pad to maintain proper spinal alignment during heavy reps.
- Triple Weight Post Distribution: Equipped with three 1" standard weight plate posts to ensure balanced resistance and smooth plate loading.
- Smooth Nylon Bushing Carriage: Industrial nylon bushings glide effortlessly along guide rods for quiet, consistent exercise movement.
- Diamond-Plate Steel Foot Deck: Extra-wide non-slip press plate ensures secure foot placement for both leg press and calf raise variations.
- Dual Steel Locking Pins: Features dual 1/2" solid steel safety locking pins with 3 adjustable starting/stopping height positions for solo lifting confidence.
- Standard Plate Compatible: 1" weight posts accept standard plates (Olympic 2" adapter sleeves, weight plates, and collars sold separately).
Specifications:
