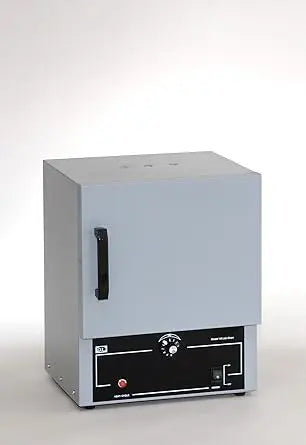

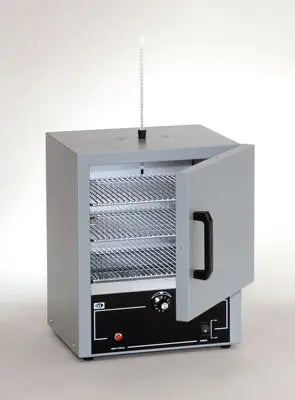

Quincy Lab 10GC Gravity Convection Analog Lab Oven
Quincy Lab 10GC Gravity Convection Analog Lab Oven
Quincy Lab 10GC Aluminized Steel Bi-Metal Gravity Convection Oven, 0.7 Cubic feet
The ‘GC’, (gravity convection) and 'AF' (air forced), Lab Series Ovens series are designed to meet the laboratory needs of industry, research organizations and schools.
Well-crafted and versatile, they are used for part drying, baking, curing, sterilizing, evaporating, heat treating, annealing, and testing, as well as many more applications.
Temperature range
Ambient (room temperature) +25°F minimum to a maximum of 450°F (232°C).
Oven Features
Although there are several different models and styles, all of our Analog Lab Oven Series offer these standard features:
- Bi-metal thermostat (10 GC & AF Series only).
- Hydraulic thermostat.
- Accuracy of ±3°C.
- Over-temperature safety feature.
- Corrosion resistant aluminized interior.
- 115 Volts & 230 Volts available.
- Resistive-tubular incoloy heating elements.
- 1" inch of high density mineral wool insulation.
- Insulated Steel Doors with high impact thermoplastic handles.
- 2 adjustable and 1 fixed nickel plated shelves.
- Baked in scratch-resistant powder coated finish.
- A circulating fan which provides air circulation for improved uniformity (AF Models only).
Over temperature safety
Our Lab Ovens offer a thermo safety alarm which will shut the unit off in the event of a runaway condition until oven is manually reset.
Product Specifications:
| MODEL | 10GC |
| INTERIOR DIMENSIONS | |
| Inches W x H x D | 12 x 10 x 10 |
| (cm) W x H x D | 30.5 x 25.4 x 25.4 |
| EXTERIOR DIMENSIONS | |
| Inches W x H x D | 14 x 17.5 x 12.3 |
| (cm) W x H x D | 35.5 x 44.5 x 31.2 |
| CAPACITY | |
| Cubic feet | 0.7 |
| Liters | 20 |
| ELECTRICAL | |
| Volts / Amps | 115 / 5.2 |
| Watts | 600 |
| Frequency (Hz) | 50/60 |
| PERFORMANCE | |
| Control Stability | |
| Typically ± °C / °F | 3° / 6° |
| Time to temp. | |
| Ambient to 100°C | 6 min |
| Ambient to Max | 22 min |
| Recovery time at 150°C | |
| Door opened 15 sec. | 3.5 min. |
| Door opened 30 sec. | 6 min. |
| Weight (lbs.) | |
| Shipping / alone | 43 / 31.4 |
| Shelves | |
| Max. per unit (1in. center) | 10 |
| Maximum lbs. / shelf | 35 lbs. |
