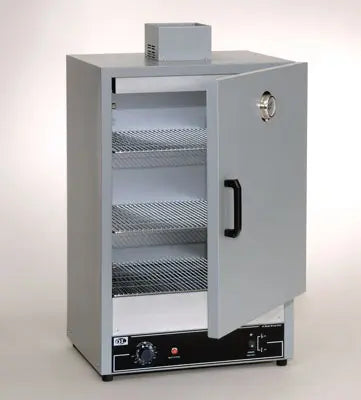

Quincy Lab 30AF Air Forced Analog Lab Oven
Quincy Lab 30AF Air Forced Analog Lab Oven
Quincy Lab 30AF Analog Oven: Air Forced, 1.83 cu ft Capacity, 232°C Max Temp, 1572W
The Quincy Lab 30AF mechanical convection oven has a maximum temperature of 232 degrees Centigrade (450 Fahrenheit) and has a chamber volume of 1.83 cubic feet (51.8 liters). The AF series ovens are competitively priced and offer exceptional value and reliability.
The AF series models offer a forced air circulation allowing for a more uniform distribution of heat throughout the chamber, which also facilitates evaporating. Cabinets are as attractive as they are durable. Exteriors are painted light gray and have a hard, scratch-resistant hammer finish. Doors open with high impact thermoplastic handles. Cabinets have heavy steel double-wall construction. Work space is insulated from the outer cabinet with one inch of high density mineral wool, and interiors are made of corrosive-resistant aluminized steel.
Product Description
- These mechanical convection ovens are designed to meet the laboratory needs of industry, research organizations and schools. Well-crafted and versatile, they are used for drying, baking, sterilizing. evaporating, heat treating, annealing and testing
- Cabinets are as attractive as they are durable. Exteriors are painted light gray and have a hard, scratch-resistant hammer finish. Doors open with high impact thermoplastic handles. Cabinets have heavy steel double-wall construction
- Work space is insulated from the outer cabinet with one inch of high density mineral wool, and interiors are made of corrosive-resistant aluminized steel
- Quincy Lab uses quality UL and CSA recognized components in all ovens. The control panel is equipped with an illuminated ON-OFF rocker switch and a heat/cycle pilot light
- Temperature is controlled by an automatic Hydraulic thermostat
- Energy efficient, low-watt density incoloy sheathed elements are engineered into a compact design for quick run-up and recovery times. Temperature uniformity is greatly improved by a perforated heat shield which absorbs radiant heat and distributes it more evenly
Product Specifications:
| MODEL | 30AF |
| INTERIOR DIMENSIONS | |
| Inches W x H x D | 18 x 14.2 x 12 |
| (cm) W x H x D | 45.7 x 36 x 30.5 |
| EXTERIOR DIMENSIONS | |
| Inches W x H x D | 20 x 29 x 14.3 |
| (cm) W x H x D | 50.8 x 73.7 x 36.2 |
| CAPACITY | |
| Cubic feet | 1,83 |
| Liters | 52 |
| ELECTRICAL | |
| Volts / Amps | 120 / 13.1 |
| Watts | 1572 |
| Frequency (Hz) | 50/60 |
| PERFORMANCE | |
| Control Stability | |
| Typically ± °C / °F | 3° / 6° |
| Time to temp. | |
| Ambient to 100°C | 7min |
| Ambient to Max | 22min |
| Recovery time at 150°C | |
| Door opened 15 sec. | 3min |
| Door opened 30 sec. | 5min |
| Weight (lbs.) | |
| Shipping / alone | 84.2 / 64.2 |
| Shelves | |
| Max. per unit (1in. center) | 14 |
| Maximum lbs. / shelf | 35 lbs. |
