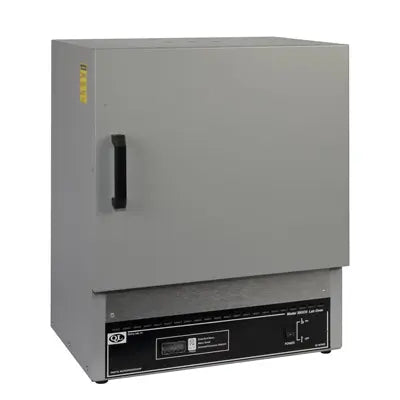

Quincy Lab 30GCE Digital Gravity Convection Lab Oven
Quincy Lab 30GCE Digital Gravity Convection Lab Oven
Quincy Lab 30GCE Digital Gravity Convection Lab Oven, 2 Cubic feet, Maximum 450°F, (232°C), 1200W
‘GCE’, (Digital Gravity Convection) Lab Oven series are designed to meet the laboratory needs of industry, research organizations and schools.
Well-crafted and versatile, they are used for part drying, baking, curing, sterilizing, evaporating, heat treating, annealing, and testing, as well as other applications.

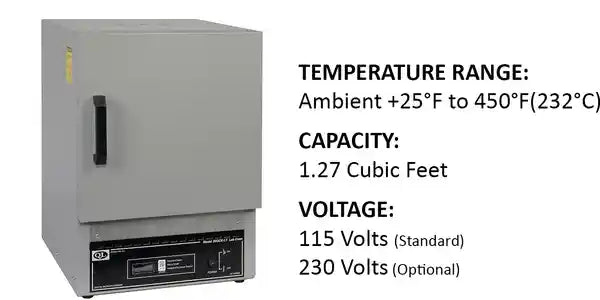

GCE & AFE Temperature Range:
Ambient (room temperature) +25°F minimum to a maximum of 450°F (232°C).
Oven Features:
Although there are several different models and styles, all of our Digital Lab Oven Series offer these standard features:
- Digital PID microprocessor
- Accuracy of ±0.5°C
- Dual overtemperature safety feature
- Corrosion resistant aluminized interior
- 115 Volts & 230 Volts available
- Resistive-tubular incoloy heating elements
- 1" inch of high density mineral wool insulation
- Insulated Steel Doors with high impact thermoplastic handles

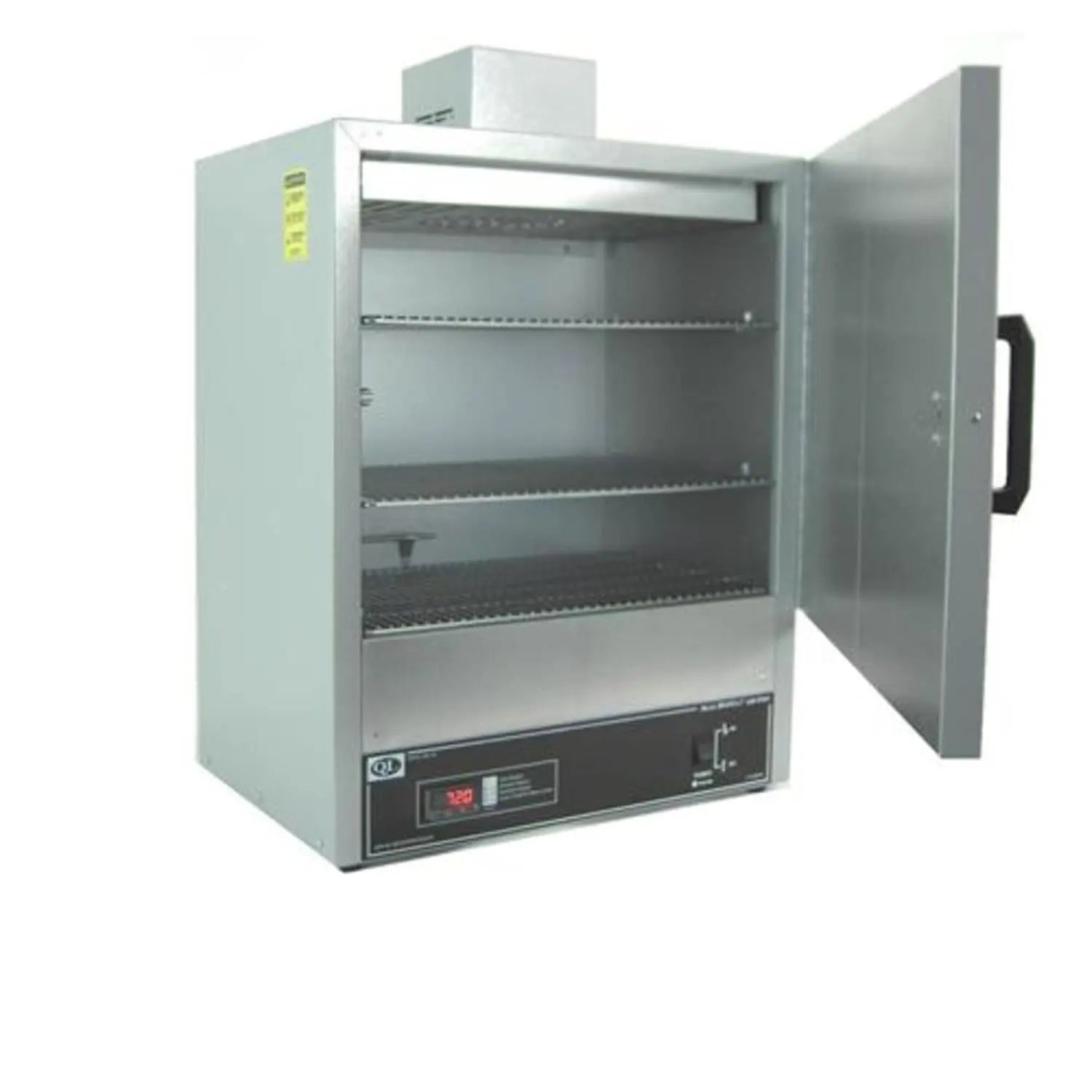

- 2 adjustable and 1 fixed nickeled plated shelves
- Baked in scratch-resistant powder coated finish
- A circulating fan which provides air circulation for improved uniformity (AF Models only)
Digital PID microprocessor:
Provides not only ease of use but maintains an accuracy of ±0.5°C allowing for the most demanding applications.
Dual Over temperature safety
Our digital ovens offer both an electronic fail safety alarm and a secondary thermo safety alarm which will shut-off the unit until it is manually reset.
Product Specifications:
| MODEL | 30GCE |
| INTERIOR DIMENSIONS | |
| Inches W x H x D | 18x16x12 |
| (cm) W x H x D | 46x41x31 |
| EXTERIOR DIMENSIONS | |
| Inches W x H x D | 20x25x14 |
| (cm) W x H x D | 51x64x36 |
| CAPACITY | |
| Cubic feet | 2 |
| Liters | 56,6 |
| ELECTRICAL | |
| Volts / Amps | 115/10.5 |
| Watts | 1200 |
| Frequency (Hz) | 5-15P |
| PERFORMANCE | |
| Control Stability at 100°C | |
| Typically ± °C / °F | 1.0°C / 0.5°C |
| Time to temp. | |
| AMBIENT TO MAX | 37min |
| Recovery time at 200°F | |
| Door opened 15 sec. | 10min |
| Door opened 30 sec. | 11min |
| Weight (lbs.) | |
| Shipping / alone | 78/70 |
| Shelves | |
| MAXIMUM PER UNIT | 16 |
| MAXIMUM POUNDS / SHELF | 35 |
| TEMPERATURE RANGE | |
| Ambient + 15 F to: F / C | 450°/232° |
