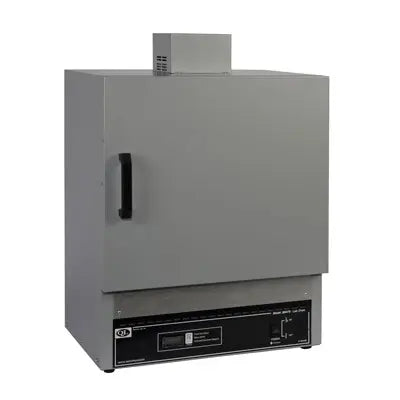

Quincy Lab 40AFE-LT Digital Air Forced Convection Low Temp Lab Oven
Quincy Lab 40AFE-LT Digital Air Forced Convection Low Temp Lab Oven
Quincy Lab 40AFE-LT Air Forced Convection Digital Low Temperature Oven, 2.86 Cubic feet, Maximum 225°F, (107°C), 800W
'AFE-LT' (Digital Air Forced Low Temperature), Lab Ovens series are designed to meet the laboratory needs of industry, research organizations and schools.
Well-crafted and versatile, they are used for part drying, baking, curing, sterilizing, evaporating, heat treating, annealing, and testing.
The Quincy 40AFE-LT has a capacity of 2.86 cubic feet and a temperature range of +15°F to 225°F 107°C.
- AFE-LT Models - Quincy Lab uses only quality UL and CSA recognized components in all ovens. The 'AFE-LT' models offer forced-air circulation allowing for uniform distribution of heat throughout the chamber, which also facilitates dehydration and evaporating. The AFE-LT series ovens have a temperature range of 225°F/107°C, and are competitively priced and offer exceptional value and reliability.
AFE-LT Series Temperature Range
Ambient +15°F minimum to a maximum of 225°F (107°C).
Oven Features
Although there are several different models and styles, all of our Digital Lab Oven Series offer these standard features:
- Digital PID microprocessor
- Accuracy of ±0.5°C
- Dual overtemperature safety feature
- Corrosion resistant aluminized interior
- 115 Volts & 230 Volts available
- Resistive-tubular incoloy heating elements
- 1" inch of high density mineral wool insulation
- Insulated Steel Doors with high impact thermoplastic handles

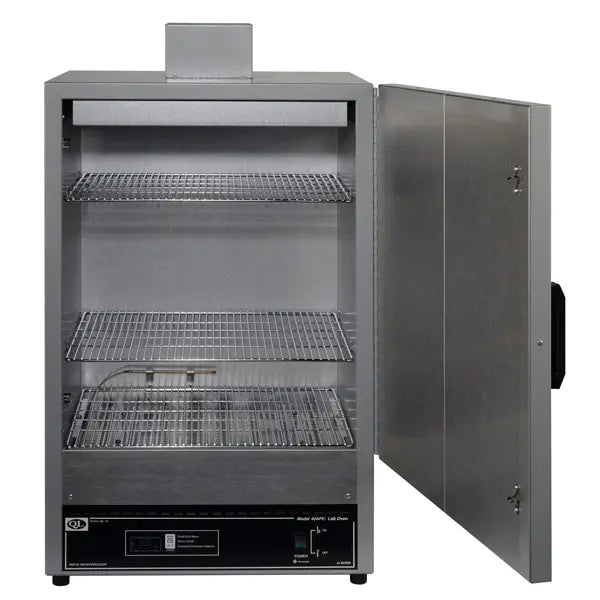

- 2 adjustable and 1 fixed nickeled plated shelves
- Baked in scratch-resistant powder coated finish
- A circulating fan which provides air circulation for improved uniformity (AF Models only)
Digital PID microprocessor
Provides not only ease of use but maintains an accuracy of ±0.5°C allowing for the most demanding applications.
Dual Over temperature safety
Our digital ovens offer both an electronic fail safety alarm and a secondary thermos fail safety alarm which will shut-off the unit until it is manually reset.
Product Specifications:
| MODEL | 40AFE-LT |
| INTERIOR DIMENSIONS | |
| Inches W x H x D | 18x19.63x14 |
| (cm) W x H x D | 45.7x50x35.5 |
| EXTERIOR DIMENSIONS | |
| Inches W x H x D | 20x33.5x16 |
| (cm) W x H x D | 52x85x40.63 |
| CAPACITY | |
| Cubic feet | 2,86 |
| Liters | 81 |
| ELECTRICAL | |
| Volts / Amps | 115 / 4.8 |
| Watts | 800 |
| Frequency (Hz) | 5-15P |
| PERFORMANCE | |
| Control Stability at 100°C | |
| Typically ± °C / °F | 1.0°C / 0.5°C |
| Time to temp. | |
| AMBIENT TO MAX | 40min |
| Recovery time at 200°F | |
| Door opened 15 sec. | 7min |
| Door opened 30 sec. | 9min |
| Weight (lbs.) | |
| Shipping / alone | 94/85 |
| Shelves | |
| MAXIMUM PER UNIT | 20 |
| MAXIMUM POUNDS / SHELF | 35 |
| TEMPERATURE RANGE | |
| Ambient + 15 F to: F / C | 225/107 |
